Partiron

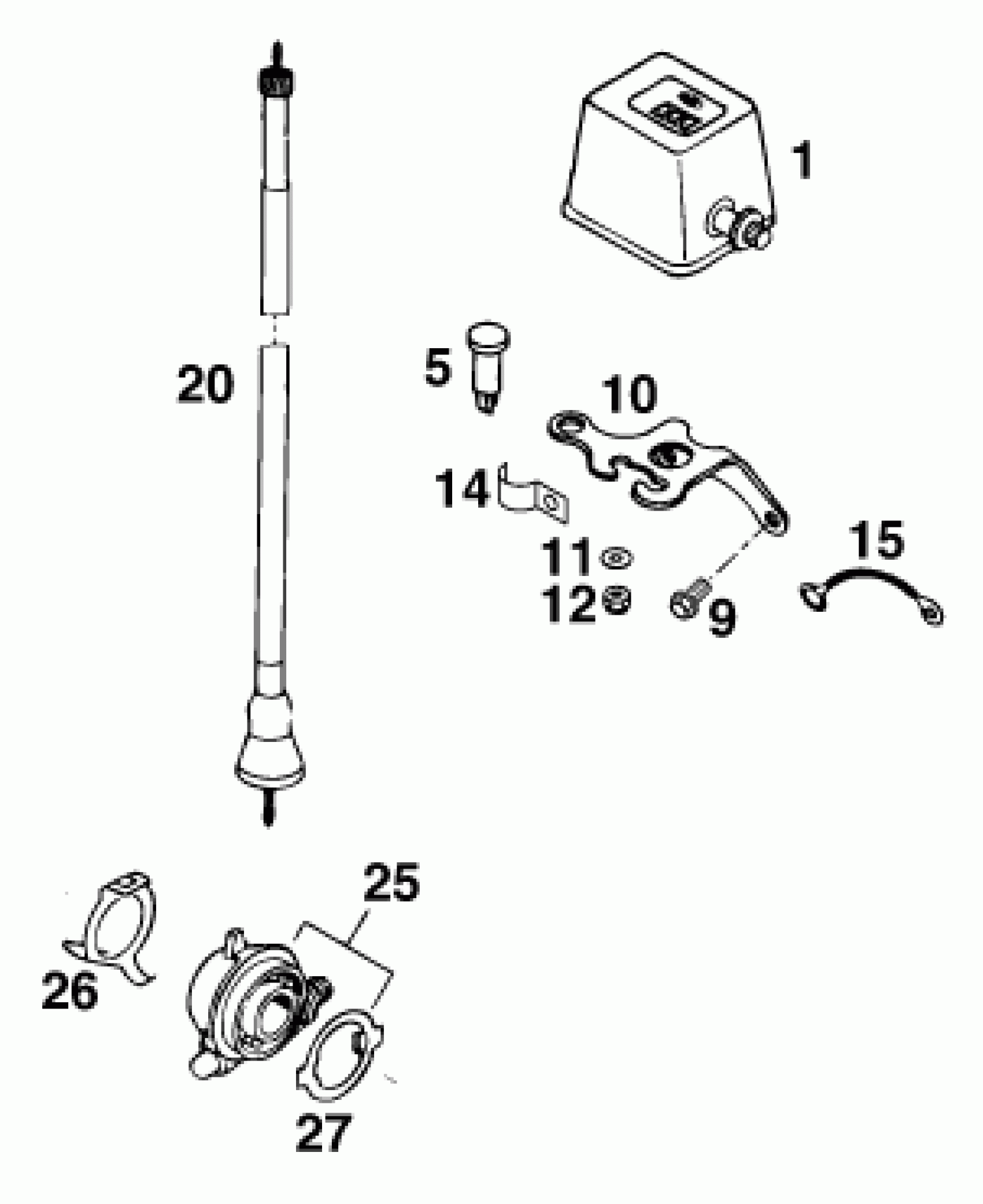

KTM 620 SUPER-COMP WP/ 19kW <1995> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER VDO 140 KM/H

55011080000

Unavailable

2

* BULB 12V 2W BA7S

44111025000

Unavailable

3

SOCKET BA7S

33011069000

Unavailable

4

COLLAR NUT M10X1 WS=17

55011080050

Unavailable

5

* SPEEDOMETER HOUSING VDO

57011068000

Unavailable

6

SPEEDOMETER HOUSING VDO

58011068000

Unavailable

7

PLUG

36111021000

Unavailable

8

* INDICATOR LAMP

44611221000

Unavailable

8

INDICATOR LAMP

44611222000

Unavailable

8

INDICATOR LAMP

44611264000

Unavailable

9

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

10

SPEEDOMETER BRACKET VDO/ODO'95

54611120200

Unavailable

11

SPEEDOMETER BRACKET VDO '95

54611120400

Unavailable

12

CLAMP FOR WIRING HARNESS

50211096000

Unavailable

13

INDICATOR LIGHT BLUE 12V ROUND

58011021100

Unavailable

15

GROUND CABLE

57101008000

Unavailable

30

SPEEDOM.CABLE M10/M12 985MM'93

56511188400

Unavailable

39

BRACKET FOR SPEEDOMETER DRIVE

58111052150

Unavailable

40

SPEEDOM.DRIVE 748213 (2,1) '92

58111152100

Unavailable

41

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

Unavailable
