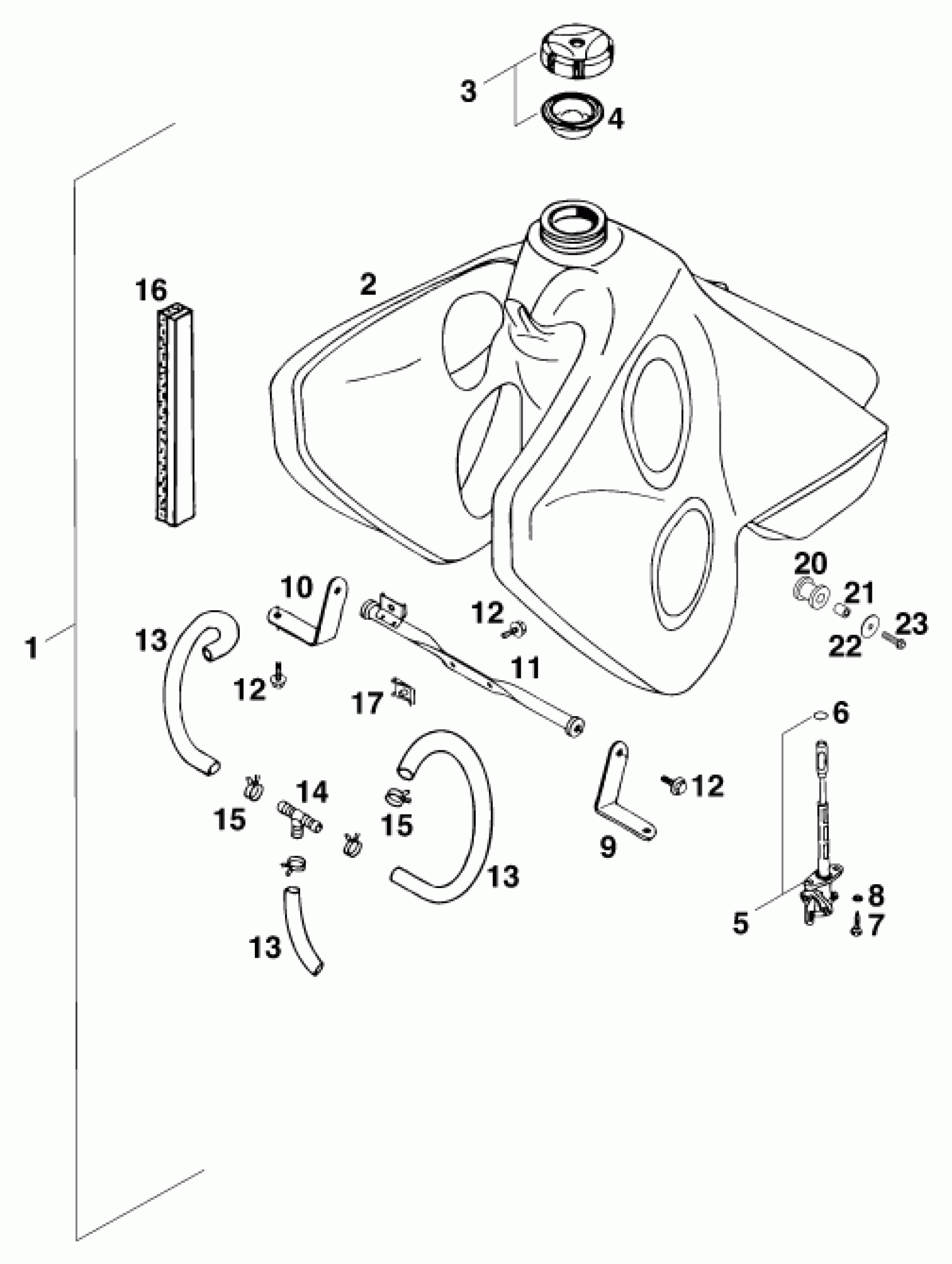

KTM 620 SUPER-COMP WP/ 19kW <1994> TANK, SEAT Diagram

#

Description
Price

0

* SIDE COVER WHITE R/S '93

58308042000

Unavailable

0

SPOILER WHITE R/S '93

58335029000

Unavailable

3

GAS COCK CPL. OFF-ON

55007005300

Unavailable

4

FUEL COCK CPL. OFF-ON-RES

58307105200

Unavailable

5

FUEL COCK R/S OFF-ON-RES

58307105000

Unavailable

6

O-RING 11X1,8 NBR 70

55007006200

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

TANK CAP CPL. LARGE

56007008144

Unavailable

9

GASKET FOR TANK CAP

56007009100

Unavailable

11

OVAL HEAD SCREW M6X17

54507011000

Unavailable

13

* FUEL TANK 11,3LT. '96

58307013300

Unavailable

13

FUEL TANK 11,3LITER

58307213000

Unavailable

14

SPECIAL NUT M8

58307014000

Unavailable

15

rubber bushing

56401040000

Unavailable

16

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

17

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

18

HH S.MET.SCREW DIN7676- 5,5X

0676550223

Unavailable

19

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

20

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

21

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

22

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

28

SPOILER WHITE L/S '93

58335028000

Unavailable

36

BUSHING

54635036000

Unavailable

40

* SEAT SX,EXC PURPLE LC4'94

58307040100

Unavailable

40

* SEAT EGS PURPLE LC4'94

58307140100

Unavailable

40

SEAT WIDE EGS '95

58307140200

Unavailable

40

SEAT EGS MINT LC4'94

58307240100

Unavailable

41

SEAT COVER SX,EXC PURPLE '94

58307040150

Unavailable

41

% SEAT COVER WIDE EGS

58307140250

Unavailable

41

SEAT COVER EGS MINT

58307240150

Unavailable

41

* SEAT COVER HIGH PURPLE

58307340050

Unavailable

42

washer 10.5x32x2

56401042000

Unavailable

43

Pair of washers M6 NORDLOCK

50233041000

Unavailable

44

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

48

clip nut M6

54603048100

Unavailable

52

RUBBER SLEEVE D=12MM

41001052000

Unavailable

58

TOOL BOX CPL. '92

58012058000

Unavailable

67

INSOLATE WASHER 8,5X28X3

51005067000

Unavailable

68

WASHER DIN9021-A 8,4

0021080003

Unavailable

69

Hexagon nut DIN934 M8

0934080003

Unavailable

81

* SIDE COVER WHITE L/S '93

58308041000

Unavailable
