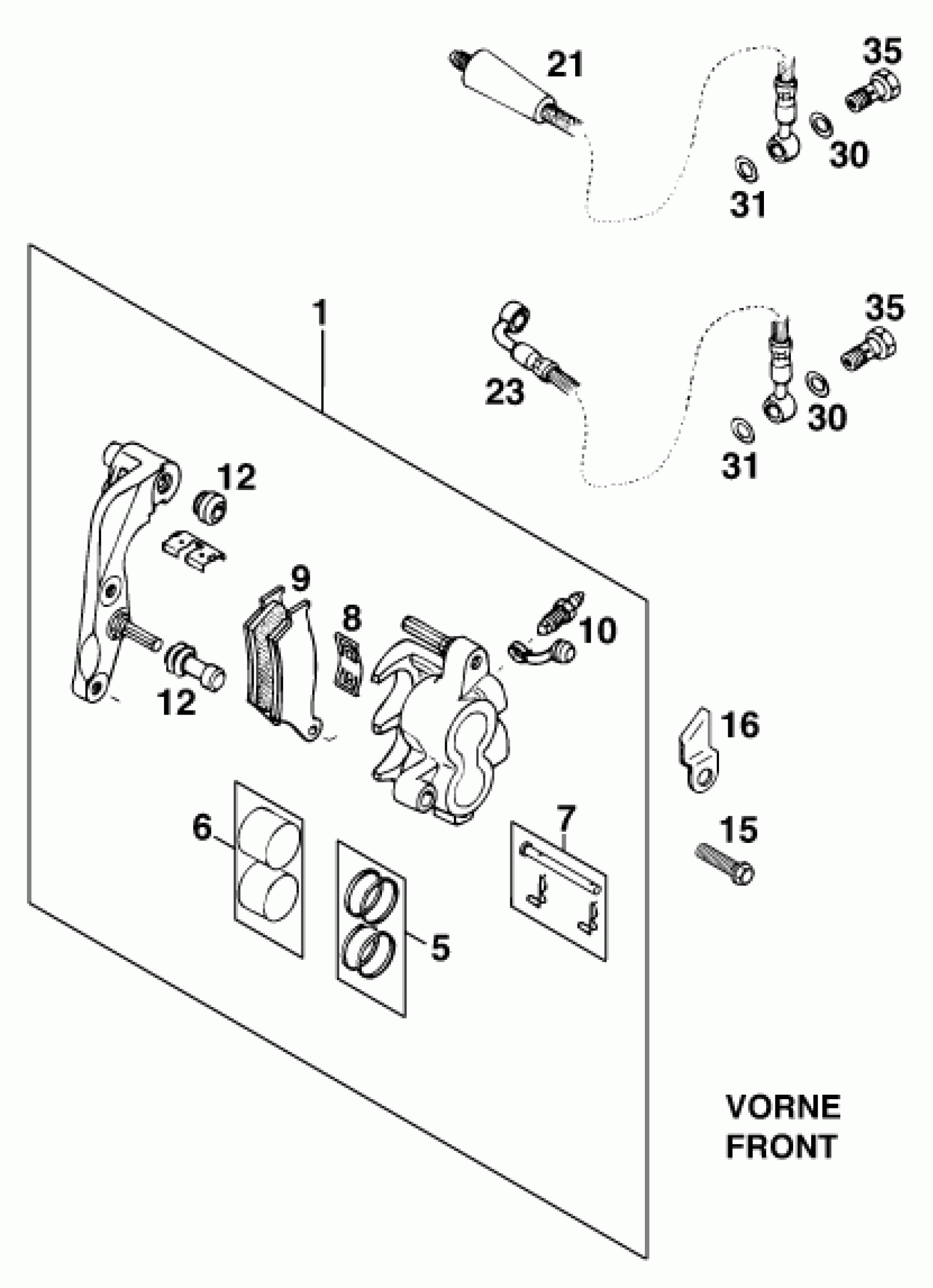

KTM 620 SUP-COMP WP 20KW <1996> FRONT BRAKE CALIPER Diagram

#

Description
Price

1

FRO.BRAKE CALIPER CPL. 2PISTON

54613201044

Unavailable

5

REPAIR KIT 28MM

54613205000

Unavailable

6

REPAIR KIT PISTON 28MM

54613206000

Unavailable

7

BOLT CPL. 6X56

54613210100

Unavailable

8

RETAINING PLATE

54613211000

Unavailable

9

BRAKE PAD SET FR. FERODID450

54613209044

Unavailable

9

* BRAKE PAD SET SINTER

54613209144

Unavailable

10

BLEEDER SCREW M10X1

54513214000

Unavailable

12

CUP SET SHORT

54613218000

Unavailable

15

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

16

BRAKE HOSE BRACKET FRONT WP

58313092000

Unavailable

21

BRAKE HOSE 1190 MM MARZOCCHI

50213129500

Unavailable

23

BRAKE HOSE 1565 MM WP '95

50213029300

Unavailable

23

BRAKE HOSE 1280MM

50213229500

Unavailable

30

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

31

CU-SEAL RING DIN7603-10X16X1,5

42013026000

Unavailable

35

HOLLOW SCREW M10X1X19

50213025000

Unavailable
