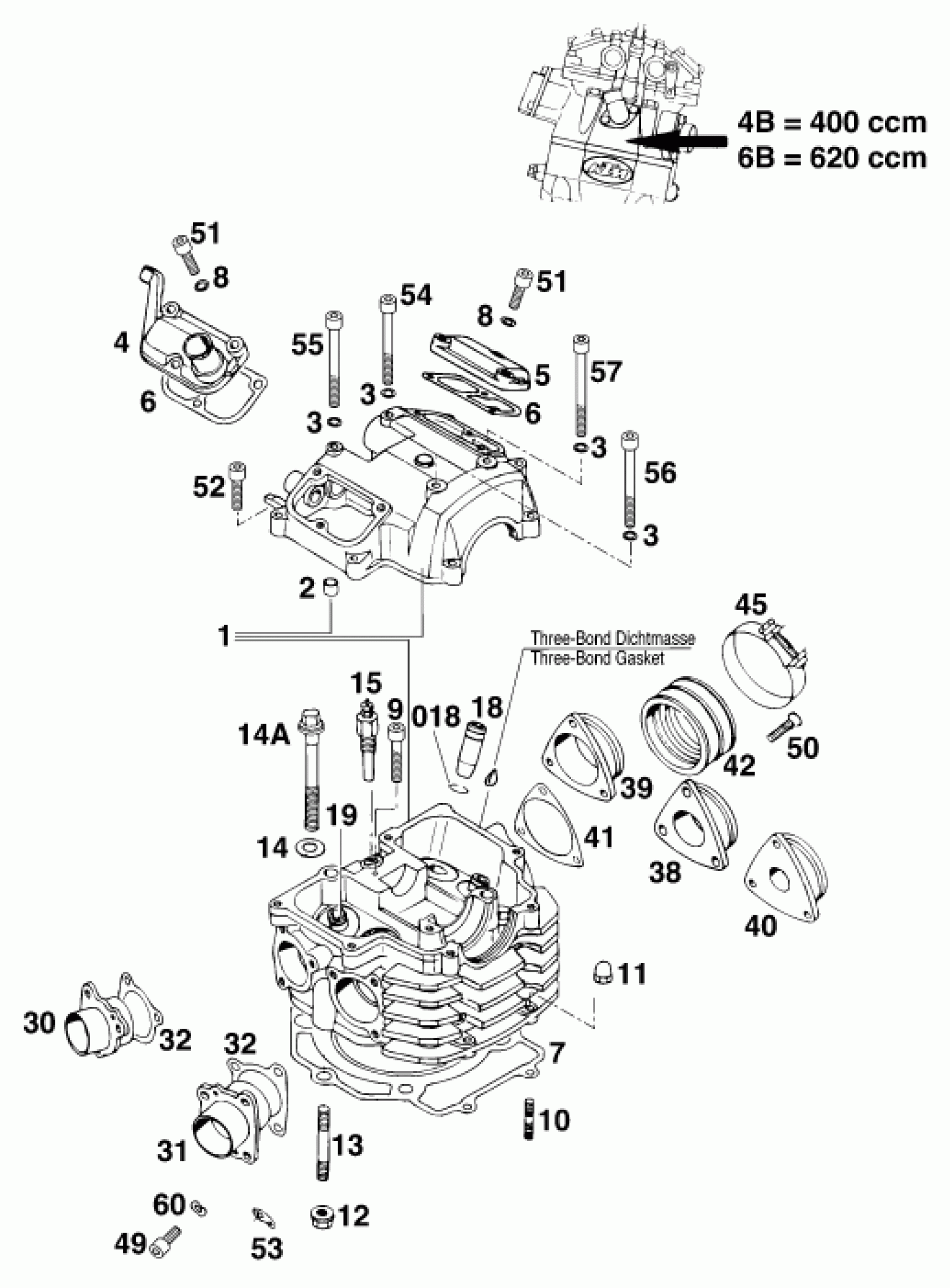

KTM 620 SUP-COMP WP <1997> CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL. 620 SX '97

58336120300

Unavailable

2

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

3

CU-SEAL RING 6 X 10 X 2

58036065100

Unavailable

4

VALVE COVER FRONT

58036152500

Unavailable

5

VALVE COVER REAR

58036052000

Unavailable

6

VALVE COVER GASKET

58036053000

Unavailable

7

CYLINDER HEAD GASKET 101,3 MM

58330036000

Unavailable

8

CU-SEAL RING 6 X 10 X 1

58036065000

Unavailable

9

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

10

THREAD PIN DIN0551-M 6X30

0551060303

Unavailable

11

HH CAP NUT DIN1587-M 6

0587060003

Unavailable

12

COLLAR NUT M8

49030028000

Unavailable

13

STUD DIN0835-M 8X40

54330043000

Unavailable

14

CU-SEAL RING 10 X 20 X 1

58036098000

Unavailable

14

COLLAR SCREW M10X80 WS=13 10.9

58036099100

Unavailable

15

TEMPERATURE SWITCH VDO

42011252000

Unavailable

18

CIRCLIP DIN7993-RW12

0993012000

Unavailable

18

VALVE GUIDE INTAKE

58036026600

Unavailable

19

VALVE GUIDE EXHAUST

58036126600

Unavailable

22

PLUG DIN0910-M 10X1

0910100003

Unavailable

23

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

30

EXHAUST FLANGE R/S

58036040000

Unavailable

31

EXHAUST FLANGE L/S

58036140000

Unavailable

32

EXHAUST FLANGE GASKET

58036041000

Unavailable

39

INTAKE FLANGE D=40MM

58136042040

Unavailable

41

INTAKE FLANGE GASKET

58136043000

Unavailable

42

INTAKE BOOT D=38MM 400-660 LC4

58136044100

Unavailable

45

CLAMP SM12/A60

56530061000

Unavailable

49

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

50

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

51

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

52

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

53

RETAINING PLATE

51005074000

Unavailable

54

AH SCREW DIN0912-M 6X50 12.9

0912060501

Unavailable

55

AH SCREW DIN0912-M 6X55 12.9

0912060551

Unavailable

56

SHCS DIN 912 M6x65

0912060653

Unavailable

57

AH SCREW DIN0912-M 6X70

0912060703

Unavailable

60

SPRING WASHER DIN0137-B 6

0137060000

Unavailable
