Partiron

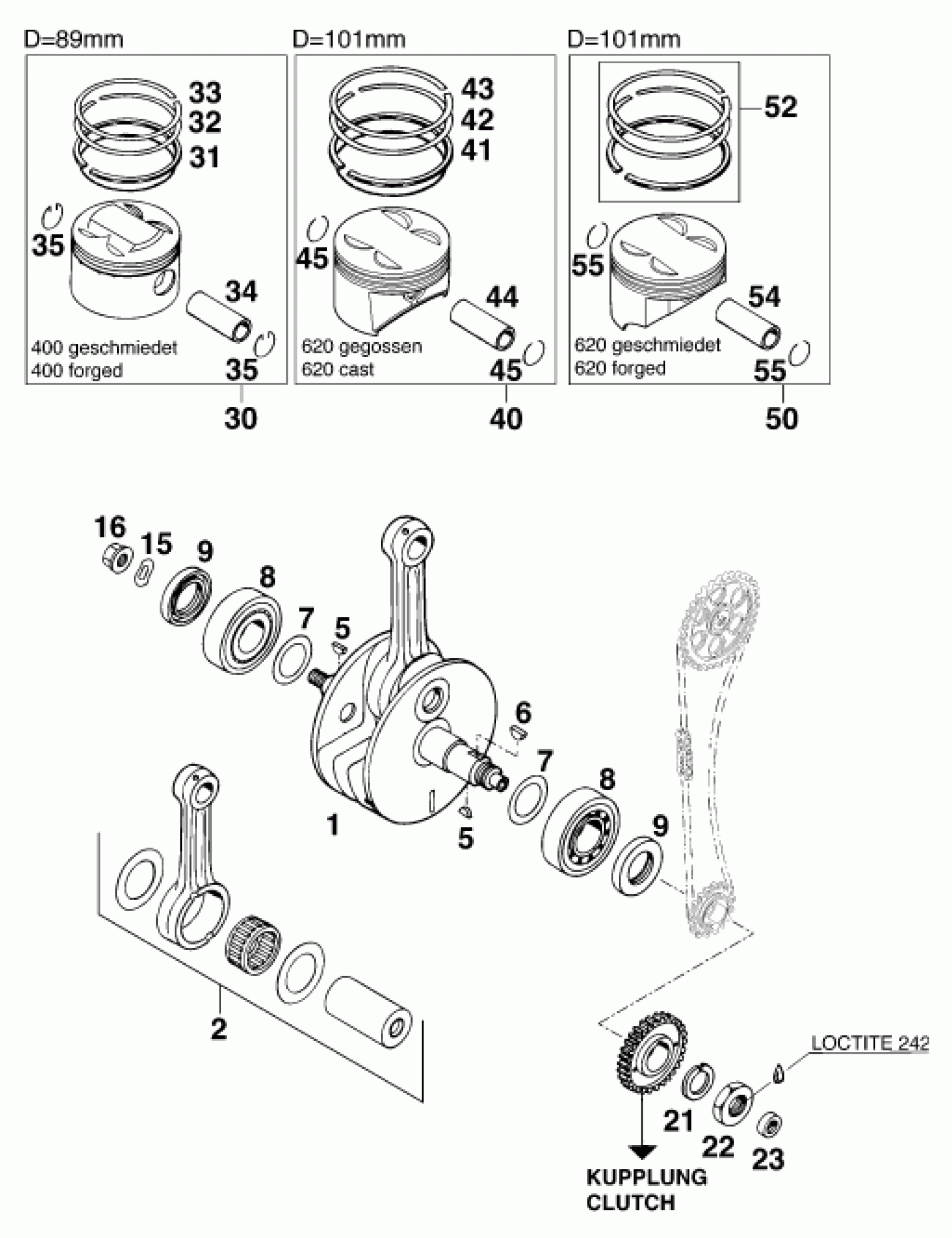

KTM 620 SUP-COMP WP <1997> CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL. 400 LC4 '97

57630018000

Unavailable

1

CRANKSHAFT CPL. 540/620 LC4'

58330018000

Unavailable

2

CONNECTING ROD REPAIR SET LC4

58030015044

Unavailable

2

CONNECTING ROD REPAIR SET LC

58330015044

Unavailable

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

6

WOODRUFF KEY DIN6888-5X6,5

0888050650

Unavailable

7

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

7

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

7

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

8

CYL.ROLLER BEARING NJ 306 C3

58030082000

Unavailable

9

SHAFT SEAL RING 30X47X7 BSL

0760304771

Unavailable

15

SPRING WASHER DIN0137-B12

0137120000

Unavailable

16

COLLAR NUT M12X1 LEFT WS=17

51030028100

Unavailable

21

LOCKING RING VSK 20

58030019000

Unavailable

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

Unavailable

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

Unavailable

31

OIL SCRAPER RING 89MM

57530031000

Unavailable

32

TAPERED COMPR.PISTON RING 89MM

57530132000

Unavailable

33

RECTANGULAR RING 89MM

57530032000

Unavailable

34

PISTON PIN 22 X 13 X 54,2

58030033000

Unavailable

35

CIRCLIP A 22 X 1,5

58030074000

Unavailable

40

* PISTON 101 MM CPL. CAST '

58330007300

Unavailable

41

OIL SCRAPER RING 101x2,5

58330031300

Unavailable

42

TAP.COMPR.PISTON RING 101X1,25

58330932100

Unavailable

43

RECTANGULAR RING 101x1,25

58330832000

Unavailable

44

PISTON PIN 22 X 13 X 60

58330833000

Unavailable

45

CIRCLIP C 22 X 1,5

58030074100

Unavailable

50

PISTON 101 MM CPL. FORGED

58330007200

Unavailable

52

PISTONRING SET KPL.101MM ARIAS

58330031244

Unavailable

54

PISTON PIN 22 X 13,5 X 63,5

58030833000

Unavailable

55

CIRCLIP C 22 X 1,2

58030874000

Unavailable
