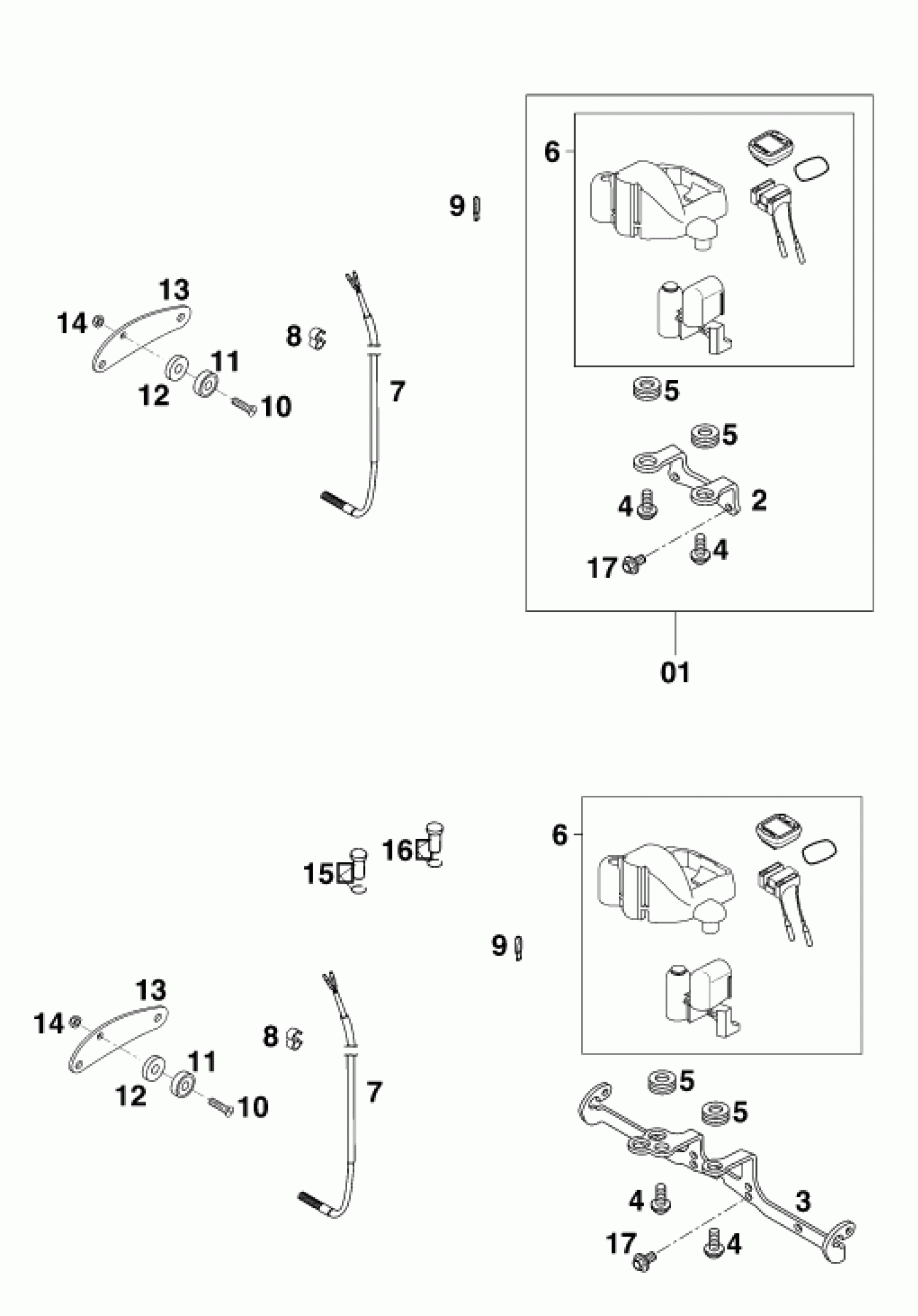

KTM 620 SUP-COMP 20kW <1999> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER CASE CPL. EXC '99

50314065244

Unavailable

2

SPEEDOMET.BRACKET EXC BLACK'99

50314060000

Unavailable

3

SPEEDOMET.BRACKET EGS '99

50314061100

Unavailable

4

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

5

rubber grommet D=8mm open

31008060000

Unavailable

6

SPEEDO.SIGMASPORT 500 CPL.'99

50314069044

Unavailable

7

CABLE FOR SIGMA 500 '98

58314069151

Unavailable

8

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

9

BULB 12V 1,2W (W2X4,6D)

49111425000

Unavailable

10

FLAT HEAD SCREW DIN0963-M 4X20

0963040203

Unavailable

11

MAGNET LOOSE '97

58314069050

Unavailable

12

STEEL WASHER 6,4X17X3

50232050001

Unavailable

13

BRACKET FOR TRIPPMASTER SENSOR

58312099073

Unavailable

14

SELF LOCKING NUT DIN0985-M 4

0985040003

Unavailable

15

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

16

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

17

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable
