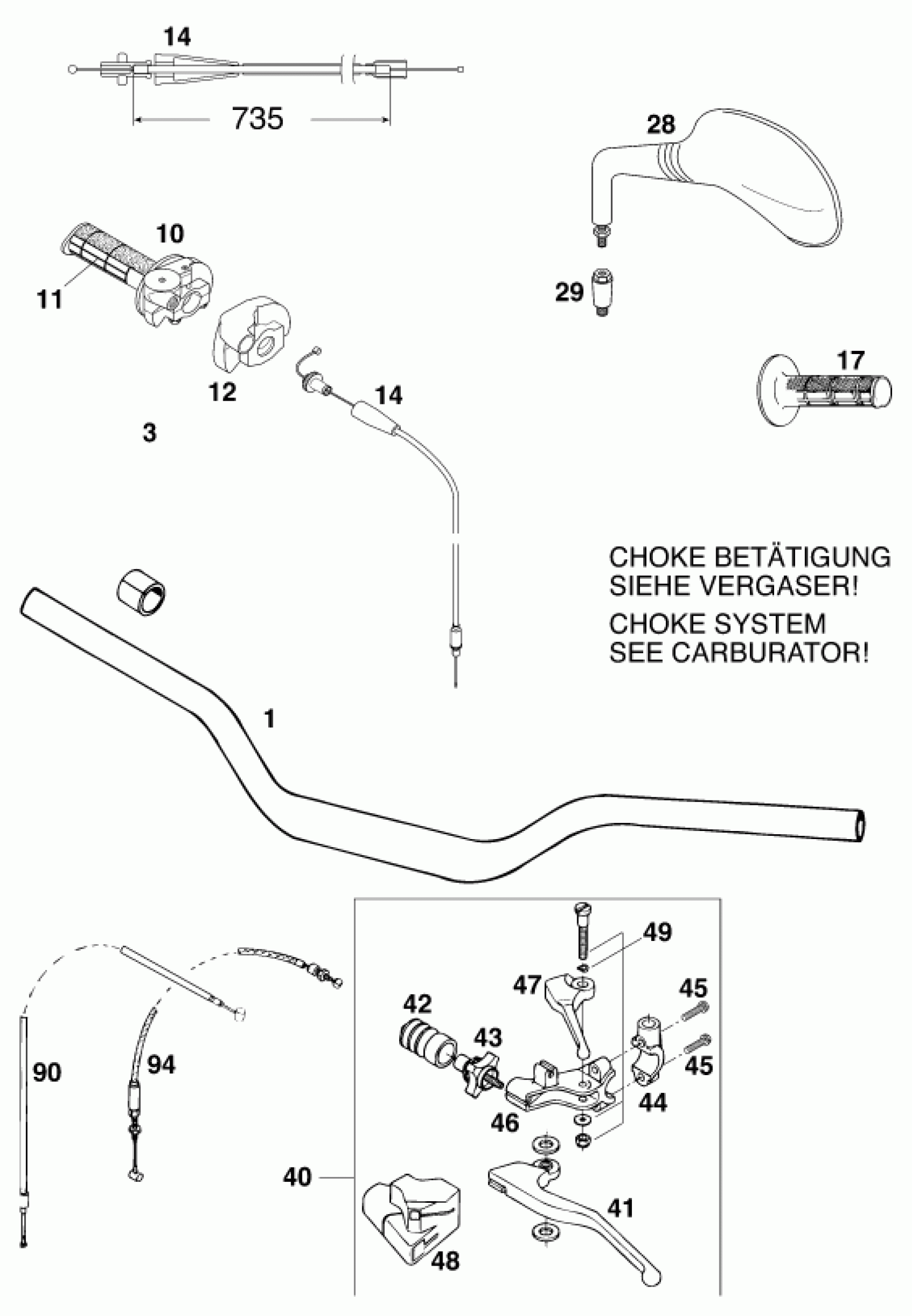

KTM 620 SUP-COMP 20kW <1999> HANDLEBAR, CONTROLS Diagram

#

Description
Price

0

MIRROR R/S 98

58412041000

Unavailable

1

ALU-HANDLEBAR SX,SC,ADVENT.'97

58302001300

Unavailable

3

SPACER BUSHING 22X28X22PVC

50202010000

Unavailable

10

THROTTLE GRIP DOMINO SXC'98

58302010300

Unavailable

11

TWIST GRIP COVER DOMINO BLACK

50202003000

Unavailable

12

PROTECTION COVER '97

50302020000

Unavailable

14

THROT.CABLE DOMINO 735MM SC'99

59002091000

Unavailable

17

FfIXED GRIP DOMINO BLACK '95

50202052000

Unavailable

28

MIRROR L/S 98

58412040000

Unavailable

29

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

40

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

Unavailable

41

CLUTCH LEVER LOOSE SILVER '97

58402042000

Unavailable

42

CLUTCH LEVER BOOT '95

58302126000

Unavailable

43

ADJUSTMENT SCREW CPL.M7

58302043000

Unavailable

44

CLAMP MIRROW M10x1,25

58302044000

Unavailable

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

46

JOINT DOMINO

58302023000

Unavailable

47

DECOMPRESSION LEVER LOOSE

58302047000

Unavailable

48

PROTECTING COVER

58302048000

Unavailable

49

LEVER SCREW CPL.

58302049000

Unavailable

90

CLUTCH CABLE 4T L=1115MM '99

58402090000

Unavailable

94

DECOMPR. CABLE L=693,5 LC4 '99

58302094200

Unavailable
