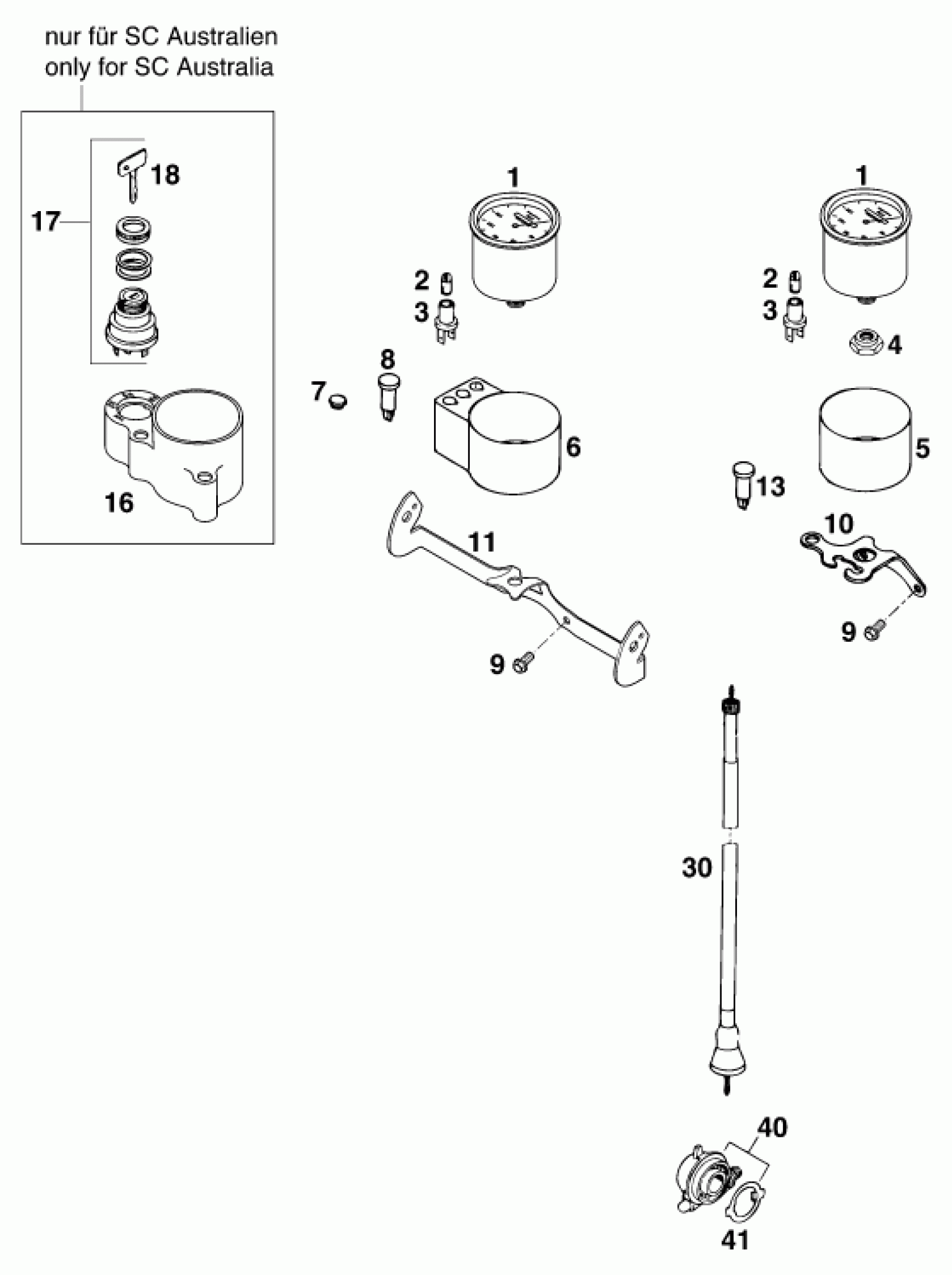

KTM 620 SUP-COMP <1998> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER VDO 140 KM/H

55011080000

Unavailable

2

* BULB 12V 2W BA7S

44111025000

Unavailable

3

SOCKET BA7S

33011069000

Unavailable

4

COLLAR NUT M10X1 WS=17

55011080050

Unavailable

5

* SPEEDOMETER HOUSING VDO

57011068000

Unavailable

6

SPEEDOMETER HOUSING VDO

58011068000

Unavailable

7

PLUG

36111021000

Unavailable

8

HIGH BEAM INDICATOR LIGHT BLUE

58011021200

Unavailable

8

TEMPERATURE WARNING LIGHT RED

58011022200

Unavailable

8

FLASHER INDICATOR LIGHT GREEN

58011024200

Unavailable

9

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

10

SPEEDOMETER BRACKET VDO/ODO'95

54611120200

Unavailable

11

SPEEDOMETER BRACKET VDO '95

54611120400

Unavailable

13

INDICATOR LIGHT BLUE 12V ROUND

58011021100

Unavailable

16

SPEEDOMETER CASE VDO '96

50211068000

Unavailable

17

IGNITION LOCK 7-P CEV

44611466000

Unavailable

18

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

30

SPEEDOM.CABLE M10/M12 960MM'96

56511188700

Unavailable

40

SPEEDOM.DRIVE 748213 (2,1) '92

58111152100

Unavailable

41

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

Unavailable
