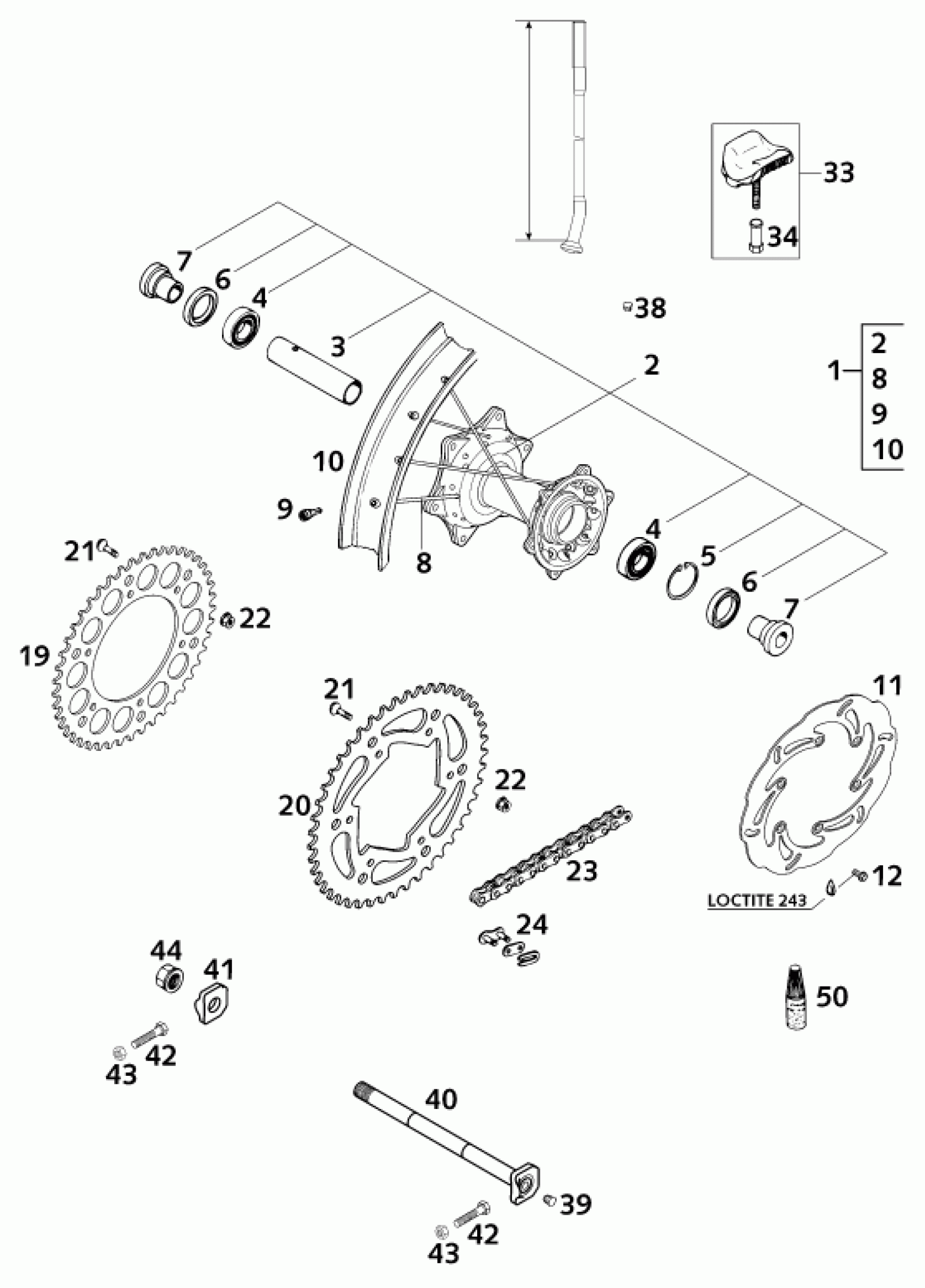

KTM 620 SC 2001 REAR WHEEL Diagram

#

Description
Price

1

REARWHEEL CPL.2.15X18''DID 200

50310001244

Unavailable

2

REAR WHEEL HUB CPL. SX,EXC03

5481001004491

Unavailable

3

BUSH. SPACER TUBE 121,5MM 01

59010011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

7

BUSHING FOR HUB

54610016000

Unavailable

8

SPOKE M5X197-10G 18'' DDE

50310071197

Unavailable

9

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

10

REAR RIM 2,15X18'' DID

54610070300

Unavailable

11

BRAKE DISC REAR D=220MM 2000

58310060100

Unavailable

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

19

REAR SPROCKET 38-T

58310051038

Unavailable

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 40-T

58310151040

Unavailable

19

REAR SPROCKET 45-T

58310151045

Unavailable

20

REAR SPROCKET 48-T

58310151048

Unavailable

20

REAR SPROCKET 50-T

58310151050

Unavailable

20

REAR SPROCKET 52-T

58310151052

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

23

50010065100

Unavailable

23

X-R.CHAIN 5/8X1/4''/M W.LINK

50010065101

Unavailable

24

MASTER LINK 5/8X1/4'' X-RING

50010066100

Unavailable

33

RIM LOCK VM3 (2.15'')

54010100100

Unavailable

34

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

WHEEL SPINDLE REAR CPLL=264MM

50210085044

Unavailable

41

CHAIN TENSIONER '95

56510084100

Unavailable

42

HH SCREW M8X40 WS=10

50203030090

Unavailable

43

Hexagon nut DIN934 M8

0934080003

Unavailable

44

Hexagon nut M20x1.5

50310099000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
