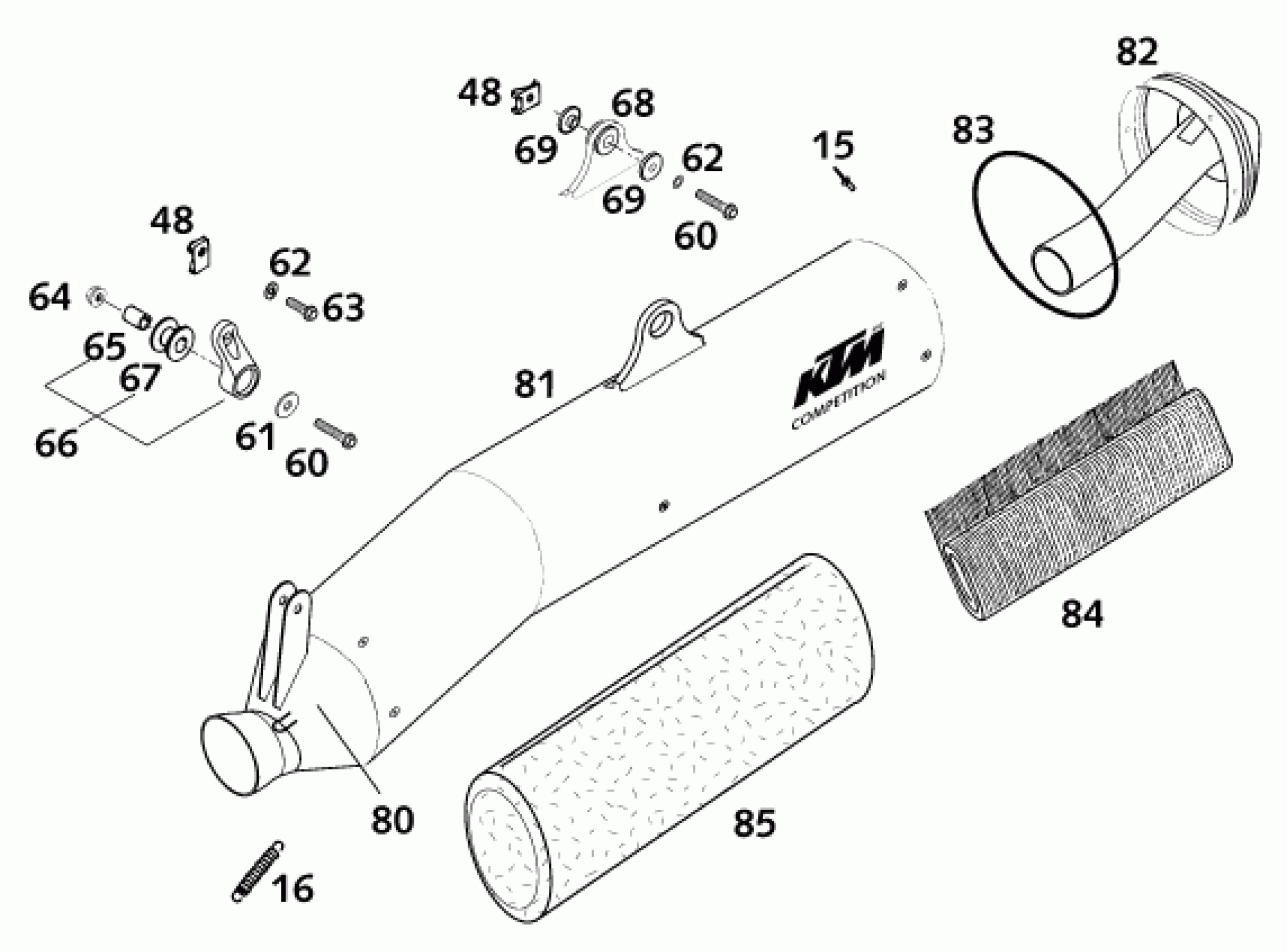

KTM 620 SC 2001 MAIN SILENCER Diagram

#

Description
Price

15

DUMMY RIVET 4,8X10,0 NIRO

0011481002

Unavailable

16

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

48

clip nut M6

54603048100

Unavailable

60

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

61

Washer DIN9021-A 6.4

0021060003

Unavailable

62

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

63

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

64

Self locking nut M6 - 10

56509064100

Unavailable

65

BUSHING 7X12X15,4

54305069000

Unavailable

66

SILENCER BRACKET CPL. SHORT'96

58305165244

Unavailable

67

damp. component silicone grey

54305068100

Unavailable

68

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

69

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

80

SIL.-CONNECT.CAP CPL. SXC '98

58305081001

Unavailable

81

% SILENCER SC THROTTLED 2001

58305081200

Unavailable

81

% SILENCER SC UNTHROTTLED 20

58305081300

Unavailable

82

SIL.-END CAP THROTTLED 2001

58305081203

Unavailable

82

SIL.-END CAP UNTHROTTLED 2001

58305081204

Unavailable

83

O-RING 82,14X3,53 SILICONE

0770223601

Unavailable

84

STUFFING YARN REAR 90 GRAMM'98

58305078002

Unavailable

85

STUFFINGYARN FRT 400GRAMM'98

58305078000

Unavailable
