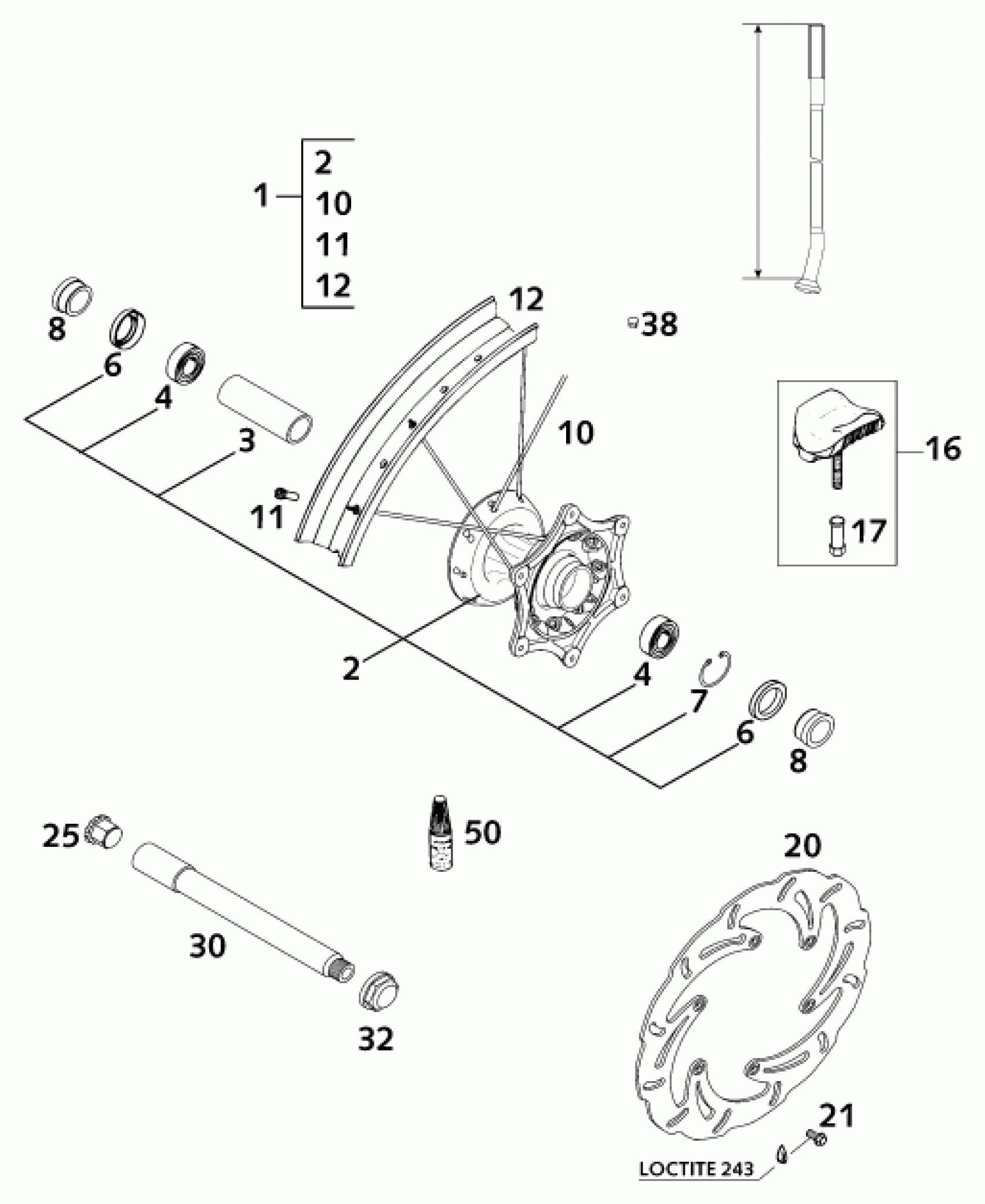

KTM 620 SC 2001 FRONT WHEEL Diagram

#

Description
Price

1

FRT WHEEL 1,6X21'' DID EXC 00

50309001144

Unavailable

2

FRONT HUB CPL. SX 2000

50309010044

Unavailable

3

BEAR. SPACERTUBE 20,5X25X80,3

50309011000

Unavailable

4

GR.BALL BEAR.6904 DDU2CG23S6NM

0625069047

Unavailable

6

SHAFT SEAL RING 26X37X7 ASL

0760263770

Unavailable

7

LOCK RING DIN0472-37X1,5

0472037154

Unavailable

8

SPACER BUSHING 20X26X27,8 2000

50309012000

Unavailable

10

SPOKE M4,5X230-15G 21'' DDE

50309071230

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

12

FRONT RIM 1,6X21'' DID

54609070200

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

17

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

20

BRAKE DISC FRONT D=260MM 2000

50309060000

Unavailable

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

25

HANDLE FOR FRONT AXLE WS=21

50309081150

Unavailable

30

WHEEL SP. FRO.USD43 185MM 2001

50309081200

Unavailable

32

AXLE NUT FRONT M16X1,5/WS=27

50309082100

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
