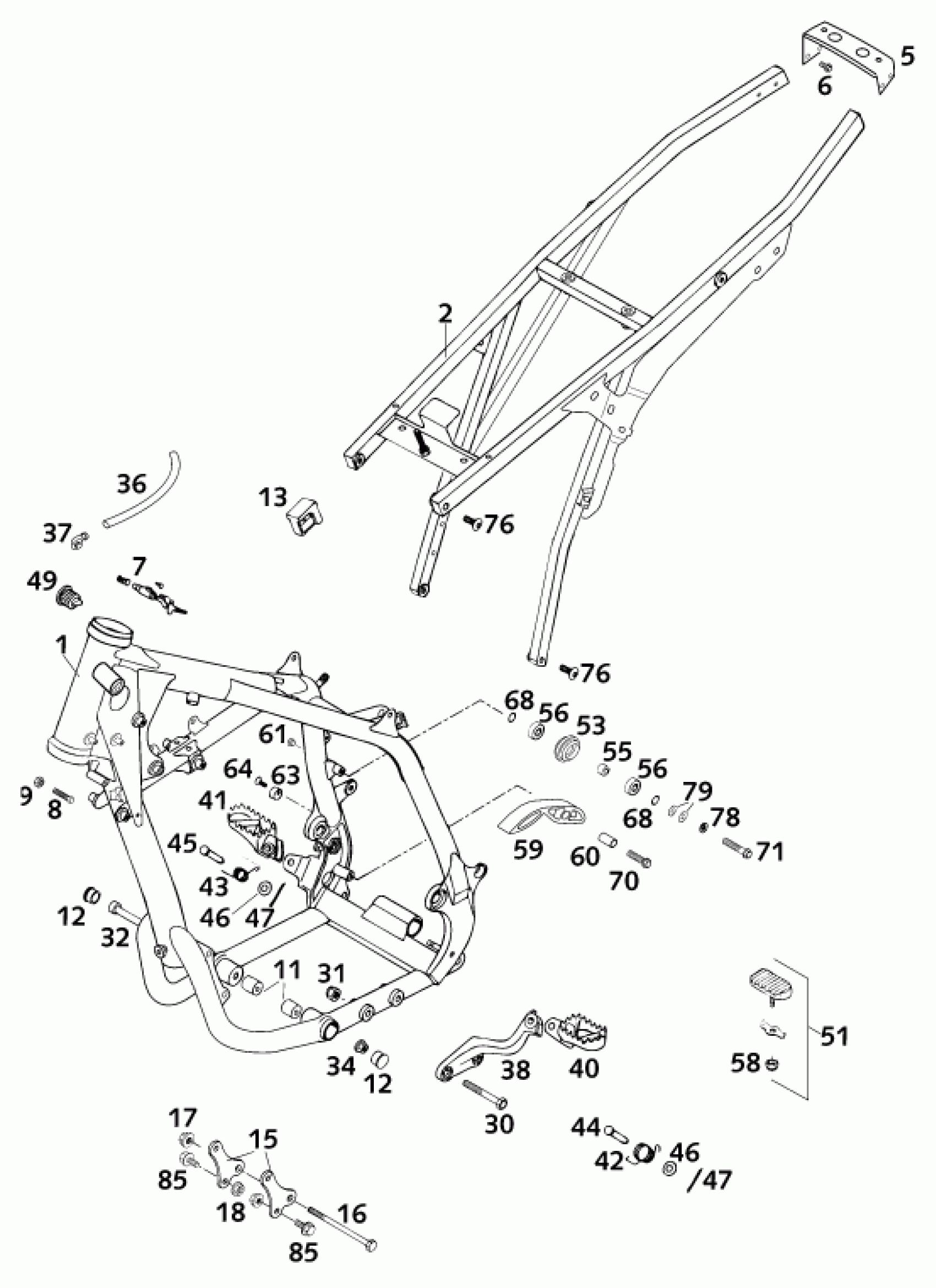

KTM 620 SC 2001 FRAME Diagram

#

Description
Price

1

% FRAME 400/620 SC SILVER '99

58303101300

Unavailable

2

SUB FRAME CPL.ALU 400/620SC 99

58303102544

Unavailable

5

OVERLAP METAL SHEET S.FRAME'99

58403002152

Unavailable

6

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

7

STEERING HEAD LOCK CPL. ZADI

71003007000

Unavailable

8

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

9

Hexagon nut DIN934 M8

0934080003

Unavailable

11

SPACER ROLLER 10,3X20X22

58003012000

Unavailable

12

PVC CAP D=22MM

71001012100

Unavailable

13

TANK SUPPORT '93

58307015000

Unavailable

15

ENGINE SUPPORT AGW '94

58303055000

Unavailable

16

HH SCREW DIN0931-M10X110

0931101103

Unavailable

17

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

18

Self locking nut M8 10.9

54310086200

Unavailable

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

32

AH SCREW DIN0912-M10X160

0912101603

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

Unavailable

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

ANGLE PIECE '97

50303089000

Unavailable

38

*FOOTREST BRACKET L/S SILVER99

5830303800090

Unavailable

40

FOOTREST L/S SILVER '99

5830304000090

Unavailable

41

FOOT REST R/S SILVER '98

5460314000090

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

BOLT FOR FOOTREST

58303044000

Unavailable

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

46

washer DIN 125 A 10.5

0125100003

Unavailable

47

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

49

PLASTIC CAP

42007049000

Unavailable

51

FOOTREST RUBBER CPL. '94

58303045044

Unavailable

53

CHAIN ROLL D=30MM 125-380 '99

52303053000

Unavailable

55

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

56

Grooved ball bearing 608 2RS C

0625006087

Unavailable

58

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

59

CHAIN SLIDING PIECE BELOW '97

51103053000

Unavailable

60

BUSHING 8,2X10X20

51103053051

Unavailable

61

PLASTIC CAP SFL10

54403135000

Unavailable

63

BRAKE LEVER STOP '93

58303063000

Unavailable

64

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

68

LOCK WASHER 8MM

36003014000

Unavailable

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

71

HH COLLAR SCREW M 8X40 WS=10

0015080403

Unavailable

76

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

78

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

79

washer DIN 125 A -8.4

0125080003

Unavailable

85

HH COLLAR SCREW M 8X16 WS=13

49109481052

Unavailable
