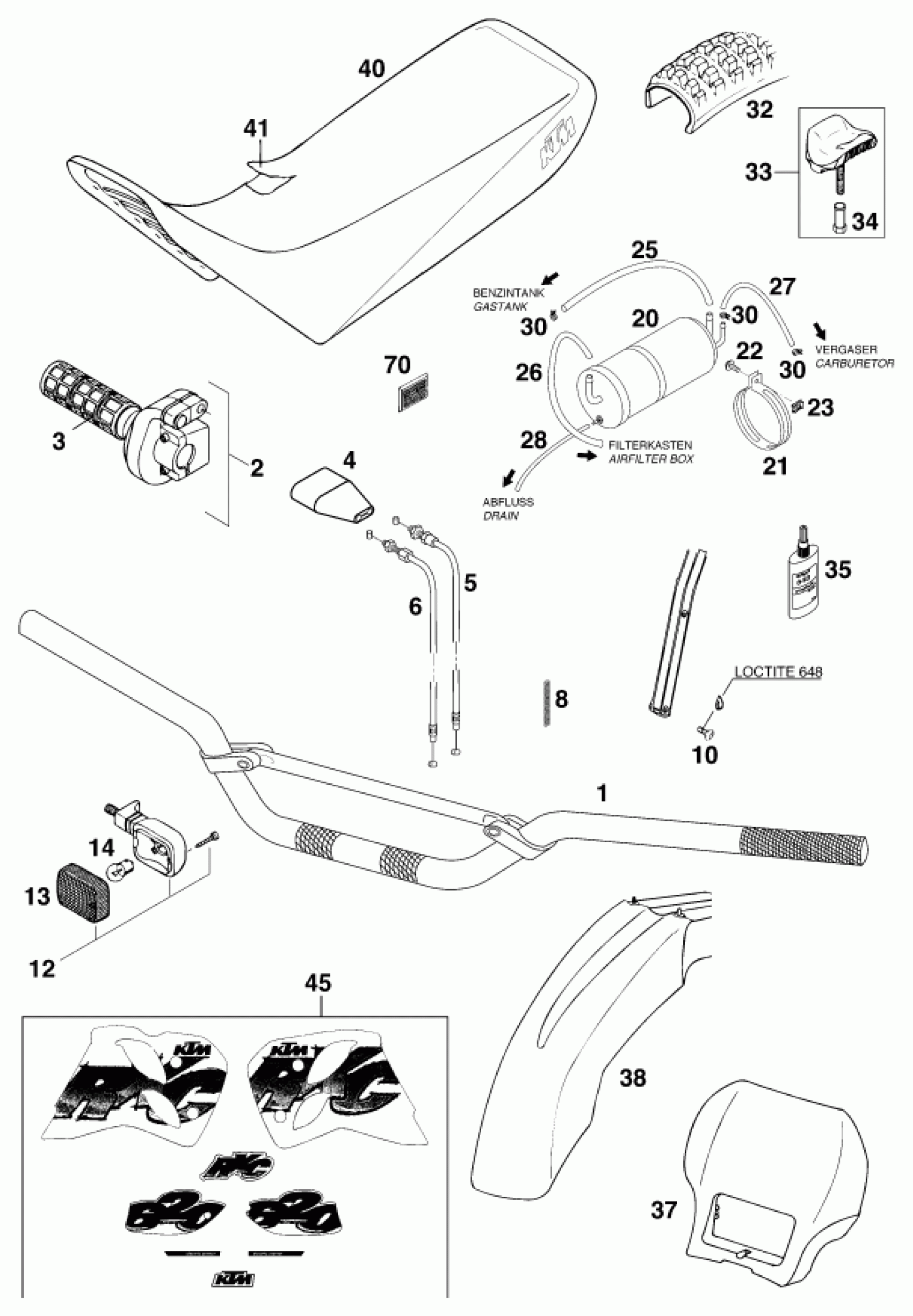

KTM 620 RXC-E <1997> ACCESSORIES Diagram

#

Description
Price

0

FLASHER LIGHT CPL. "EIE" (DOT)

58311112100

Unavailable

1

ALU-HANDLEBAR '95

50202001000

Unavailable

2

THROTTLE GRIP RXC/DUKE USA '95

58302010200

Unavailable

3

TWIST GRIP COVER DOMINO

58302003000

Unavailable

4

PROTECT.COVER RXC/DUKE USA '95

58302016200

Unavailable

5

THROTTLE CABLE DOMINO/QWIK

58302091300

Unavailable

6

THROTTLE CABLE DOMINO/QWIK

58302191300

Unavailable

8

* SPRING 0,8X48 FOR CHOKECABLE

58031753400

Unavailable

10

AH OVAL H.SCREW DIN0170-M 8X20

0107080203

Unavailable

12

FLASHER LIGHT CPL. "EIE" (DOT)

58311012100

Unavailable

13

FLASHER LENS ''EIE'' (DOT) '95

58311013100

Unavailable

14

BULB 12V 10W (BA15S)

44111015100

Unavailable

20

58307080044

Unavailable

21

CLAMP FOR FILTER KNECHT

58307083000

Unavailable

22

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

23

clip nut M6

54603048100

Unavailable

25

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

26

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

27

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

28

PVC-HOSE 4X6MM

31007007101

Unavailable

30

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

32

* TYRE 90/90-21" AP10 "DOT"

54609174200

Unavailable

32

* TYRE 140/80-18" AP10 "DOT"

54610174600

Unavailable

33

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

33

RIM LOCK VM4 (2.50'')

56410100100

Unavailable

34

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

35

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

37

* HEADLIGHT MASK WHITE '93

50211401000

Unavailable

38

FRONT FENDER WHITE '93

50208410000

Unavailable

40

* SEAT BLUE/WHITE NARROW '97

58307240500

Unavailable

41

SEAT COVER BLUE/WHITE

58307240550

Unavailable

45

DECAL SET 11,3LI. 400 RXC-E'97

5760709900068

Unavailable

45

DECAL SET 11,3LI. 620 RXC-E'97

5830709900068

Unavailable

70

* SIDE REFLECTOR ORANGE FRONT

16512180000

Unavailable

70

SIDE REFLECTOR RED REAR

16512180100

Unavailable
