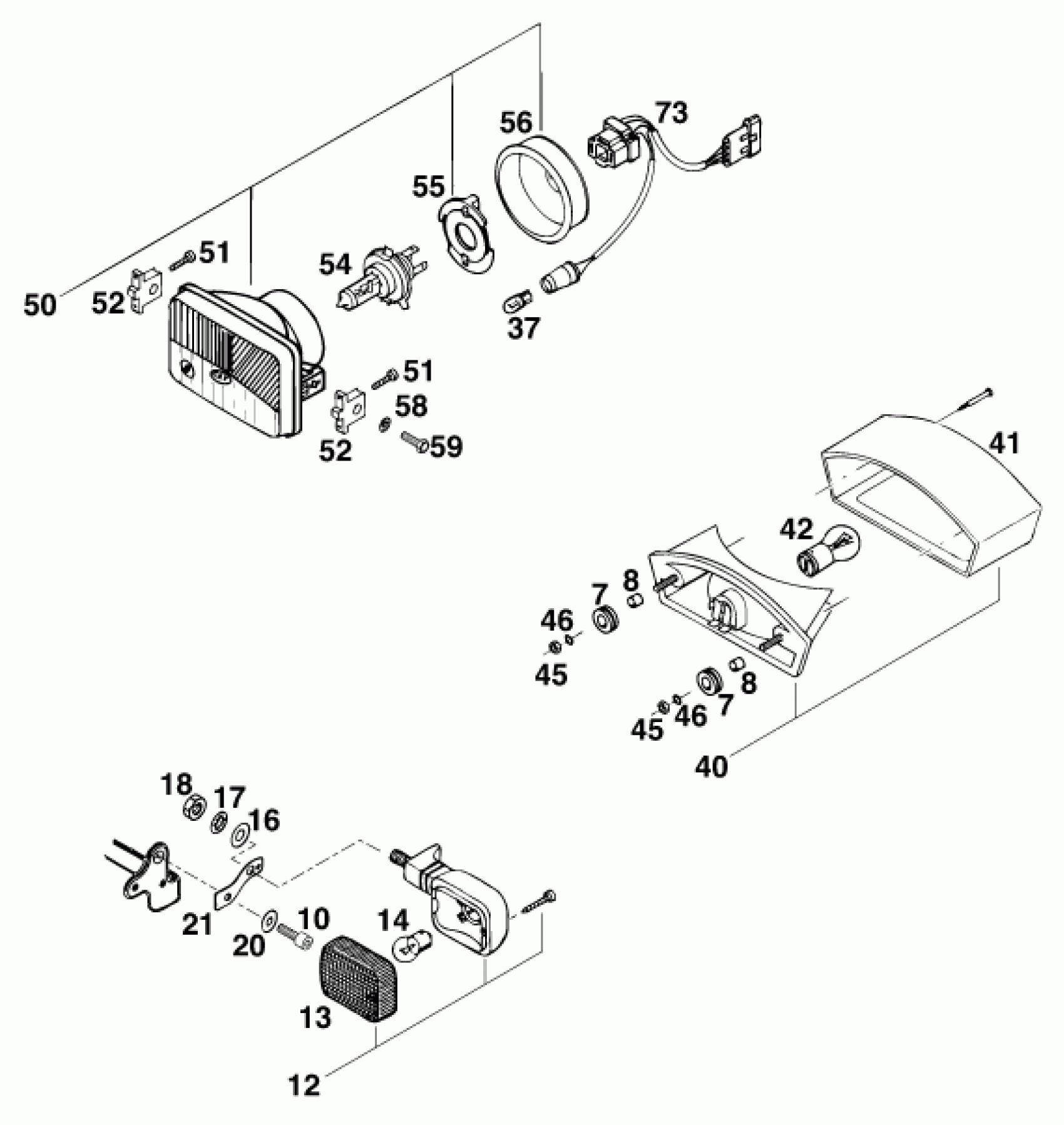

KTM 620 RXC-E <1996> LIGHTING SYSTEM Diagram

#

Description
Price

0

FLASHER LIGHT CPL. "EIE" (DOT)

58311112100

Unavailable

7

rubber grommet D=8mm open

31008060000

Unavailable

8

SPACER BUSHING 6,5 X 8 X 7

58011039000

Unavailable

10

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

12

FLASHER LIGHT CPL. "EIE" (DOT)

58311012100

Unavailable

13

FLASHER LENS ''EIE'' (DOT) '95

58311013100

Unavailable

14

BULB 12V 10W (BA15S)

44111015100

Unavailable

16

washer DIN 125 A 10.5

0125100003

Unavailable

17

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

18

HEXAGON NUT DIN0934-M10X1,25

0934102003

Unavailable

20

Washer DIN9021-A 6.4

0021060003

Unavailable

21

* FLASHER BRACKET '94

54611020400

Unavailable

37

BULB 12V 5W (W2,1X9,5D)

49011435000

Unavailable

40

REAR LIGHT CPL. CEV 358 '93

58311040000

Unavailable

41

LENS '93

58311041000

Unavailable

42

BULB 12V 21/5W (BAY15D)

57011045000

Unavailable

45

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

46

Washer DIN9021-A 6.4

0021060003

Unavailable

50

HEADLIGHT CEV 394 '93

50211510000

Unavailable

51

SPECIAL SCREW Z 3,5X10

0016035103

Unavailable

52

HEADLIGHT BRACKET '93

50211510050

Unavailable

54

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

55

* BULB HOLDER

49011436000

Unavailable

56

RUBBER CAP

50211537000

Unavailable

58

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

59

HH SCREW DIN0933-M 6X20

0933060203

Unavailable

73

* CABLE FOR HEADLIGHT '93

50211510010

Unavailable
