FRONT FORK, TRIPLE CLAMP

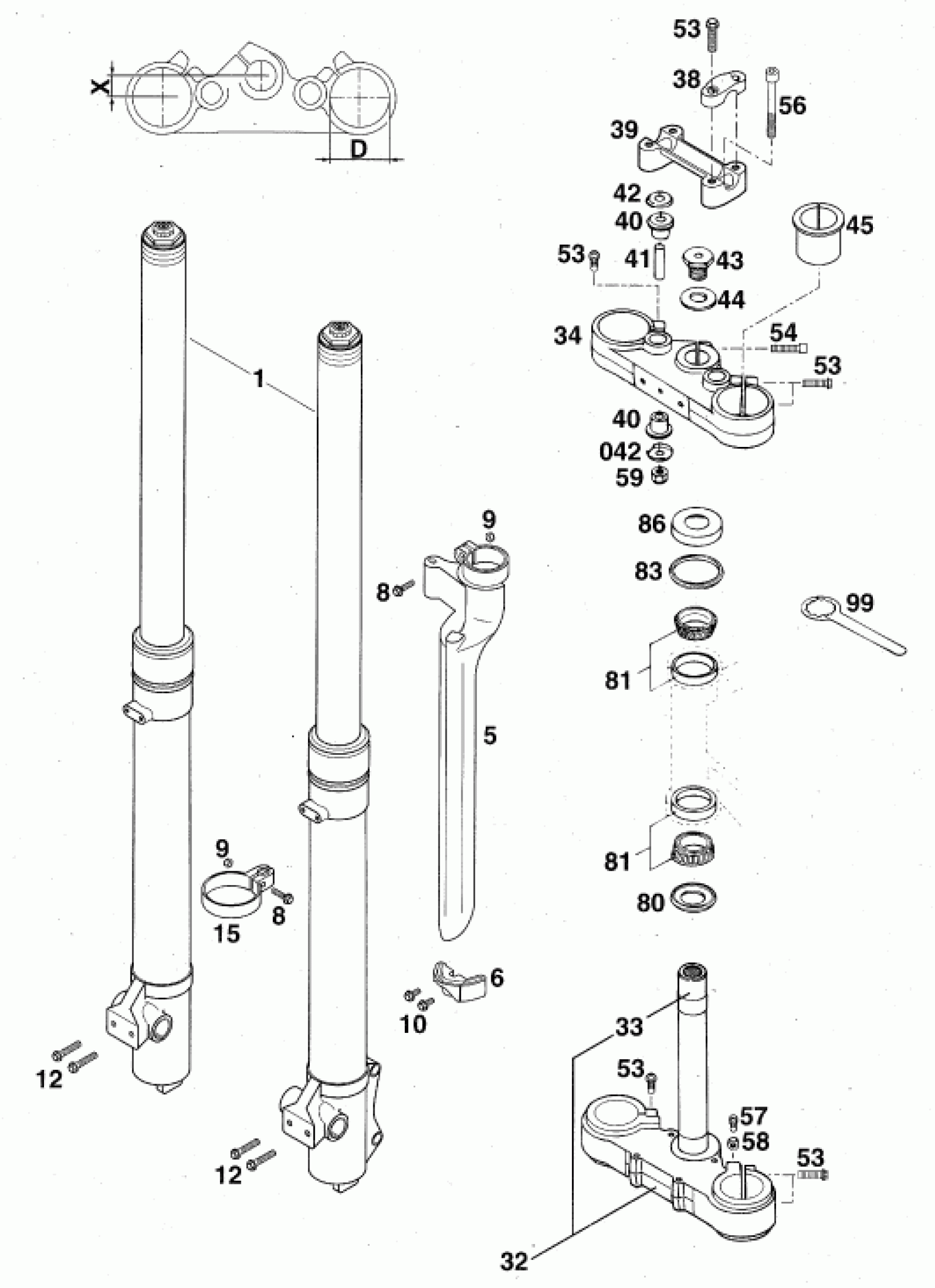

KTM 620 RXC-E <1996> FRONT FORK, TRIPLE CLAMP Diagram
#
0
FORK PROTECTOION GUIDE R/S '96
54601390000
Unavailable
0
FORK PROTECTOR R/S MARZOCCHI96
54601391000
Unavailable
1
* FORK LEGS CPL.
7124731
Unavailable
1
* FORK LEGS CPL.
7124734
Unavailable
5
FORK PROTECTOR L/S '96
54601291000
Unavailable
6
FORK PROTECTION GUIDE L/S '96
54601290000
Unavailable
8
HH COLLAR SCREW M 5X20 WS=8
0015050203
Unavailable
9
Self locking nut DIN 985 M5
0985050003
Unavailable
10
HH COLLAR SCREW M 5X12 WS=8
0015050123
Unavailable
12
H H COLLAR SCREW M 6X25 WS=10
7520196
Unavailable
15
SPEEDOMETER CABLE GUIDE MARZO.
54601099000
Unavailable
32
BOT.FORK PLATE X=18MM/D=45MM
50201132044
Unavailable
33
FORK TUBE L=244 '91
50101033100
Unavailable
34
TOP TRIPLE CLAMP X=18MM/D=54MM
54601034000
Unavailable
38
HANDLEBAR CLAMP '
54601038000
Unavailable
39
HANDLEBAR SUPPORT '95
58301039100
Unavailable
40
rubber bushing
56401040000
Unavailable
41
SPACER TUBE 10,2X12X44
56401041100
Unavailable
42
washer 10.5x32x2
56401042000
Unavailable
42
WASHER 10,5X31
56401142000
Unavailable
43
HH SCREW M20X1,5
56401043000
Unavailable
44
WASHER 21X38X3
56401044000
Unavailable
45
SLEEVE MARZO.FORK TOP 45X54X41
54601034050
Unavailable
53
HH COLLAR SCREW M 8X30 WS=10
0015080303
Unavailable
54
AH SCREW DIN0912-M 8X35
0912080353
Unavailable
56
AH SCREW DIN6912-M10X70
0984100703
Unavailable
57
HH SCREW DIN0933-M 7X20
0933070203
Unavailable
58
HEXAGON NUT DIN0934-M 7
0934070003
Unavailable
59
SELF LOCKING NUT DIN0985-M10
0985100003
Unavailable
80
O-RING SUPPORT W. SEALING LIP
54601084100
Unavailable
81
TAPERED ROLLER BEARING CPL.
54201081000
Unavailable
83
STEARING HEAD GASKET TOP
54601184000
Unavailable
86
STEERING HEAD COVER
54201086000
Unavailable
99
RING WRENCH WS=32
54212035000
Unavailable
