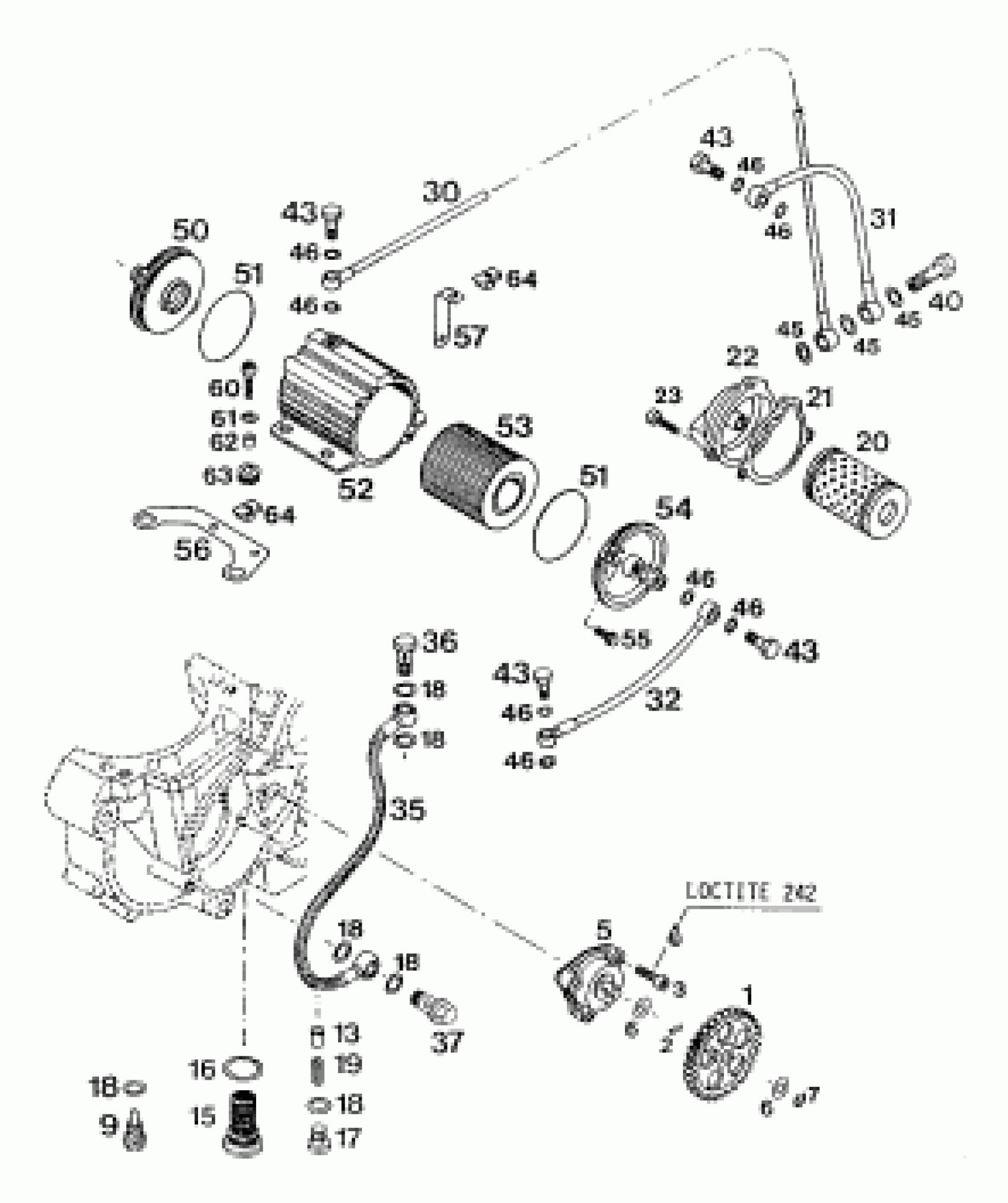

KTM 620 RXC-E <1995> LUBRICATING SYSTEM Diagram

#

Description
Price

1

OIL PUMP GEAR 31-T

58038001000

Unavailable

2

NEEDLE ROLLER DIN5402 2,5X9,8

0402025980

Unavailable

3

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

5

OIL PUMP MIKUNI G-73 LC4'

58038007100

Unavailable

6

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

7

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

12

HOLLOW SCREW M10 X 1

54313025000

Unavailable

13

VALVE PISTON D=10MM

58038028000

Unavailable

15

OIL PLUG M22x1,5

58038019000

Unavailable

16

SEAL RING 22x27x1 (COPPER)

58038017000

Unavailable

17

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

18

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

19

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

20

OIL FILTER LONG

58038005000

Unavailable

21

FILTER COVER GASKET ''B''

58030041000

Unavailable

22

FILTER COVER M10x1

58030008600

Unavailable

23

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

30

OIL LINE FILTER-FRAME TUBE

58038234700

Unavailable

31

OIL LINE FILTER/INJECT.VA. R/S

58038334600

Unavailable

32

OIL LINE MIC-FILTER/CLUT.COVER

58038134600

Unavailable

33

* OIL LINE FRAME/MICROFILTER

58038434000

Unavailable

40

DUAL BANJO BOLT M10 X 1

58038033100

Unavailable

43

BANJO BOLT M8 X 1 DIN7643

58038030000

Unavailable

45

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

46

CU-SEAL RING DIN7603- 8X12X1

58038032000

Unavailable

50

MICRO FILTER COVER

58038041000

Unavailable

51

O-RING 56,00X2,00 VITON

0770056020

Unavailable

52

% MICRO FILTER HOUSING

58038043000

Unavailable

53

MICRO FILTER ELEMENT

58038044000

Unavailable

54

MICRO FILTER COVER M8x1

58038042000

Unavailable

55

SPECIAL SCREW DIN7500-M5,0X16

0010050163

Unavailable

56

BRACKET FOR MICRO-FILTER '93

57538090000

Unavailable

57

BRACKET MICRO-FILTER '93

57538091000

Unavailable

60

AH collar screw DIN 912 M5x16

0912050163

Unavailable

61

washer DIN 9021 A - 5.3

0021050003

Unavailable

62

SPACER BUSHING 6X8X8,5

54431032050

Unavailable

63

rubber grommet D=8mm open

31008060000

Unavailable

64

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

70

* BANJO BOLT M12 X 1,5 DIN7643

57538030000

Unavailable

72

OIL LINE CRANKCASE/TRANSMISSI.

57538135000

Unavailable
