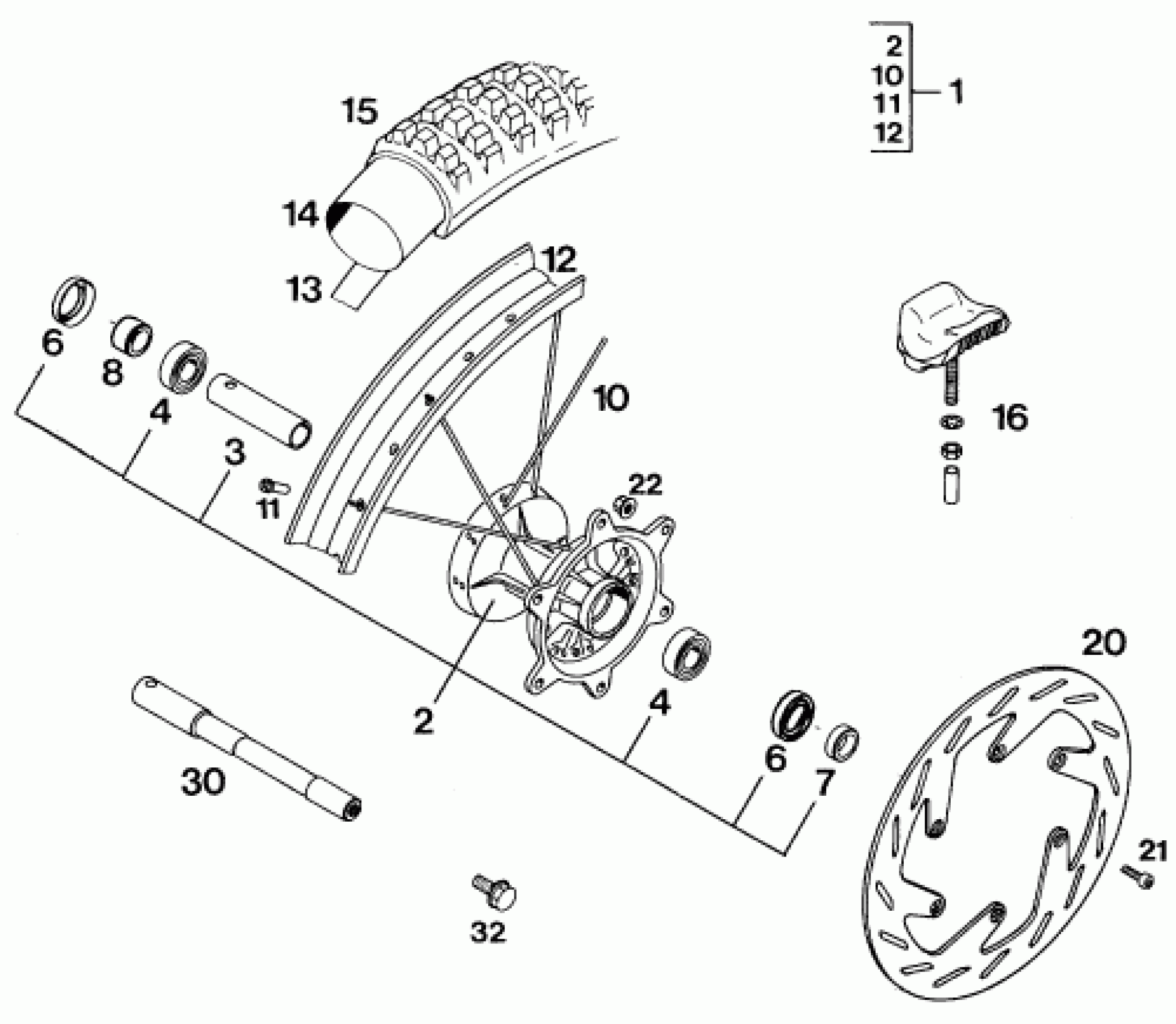

KTM 620 RXC-E <1995> FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 1,6x21'' DID '9

5800900114490

Unavailable

2

FRONT HUB CPL. SILVER GS'93

5460901004490

Unavailable

3

BEAR.SPACER TUBE 17,5X22X64,5

54609011000

Unavailable

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

5

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

Unavailable

6

SHAFT SEAL RING 25X35X7 BTSL

0760253570

Unavailable

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

WASHER 40 X 52 X 0,15 '92

58111054000

Unavailable

9

SHAFT SEAL RING 40X52X7 B

0760405270

Unavailable

10

SPOKE M5X234-15G 21'' DDE

58309071234

Unavailable

11

STEEL NIPPLE M5

56509072000

Unavailable

12

FRONT RIM 1,6X21'' DID

54609070200

Unavailable

13

RIM BAND 21''

51009073000

Unavailable

14

51009075000

Unavailable

15

* TYRE 90/90-21" 54R UNICROSS

54609074400

Unavailable

15

* TIRE 3.00-21"NHS 51M MT 16

58009074100

Unavailable

15

TIRE 90/90-21" 54R MT 70

58309074000

Unavailable

15

58309074200

Unavailable

16

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

20

FRONT BRAKE DISK D=260MM

56509060700

Unavailable

21

AH SCREW DIN6912 M6x16

0912060166

Unavailable

22

SELF LOCKING NUT M6

56509064000

Unavailable

30

WHEEL SPINDLE WP L=213MM

58009081600

Unavailable

32

HH COLLAR SCREW M10X20 WS=17

49032011000

Unavailable

39

BRACKET FOR SPEEDOMETER DRIVE

58111052150

Unavailable

40

SPEEDOMETER DRIVE 748217(3,0)

58111052100

Unavailable

40

SPEEDOM.DRIVE 748213 (2,1) '92

58111152100

Unavailable

41

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

Unavailable
