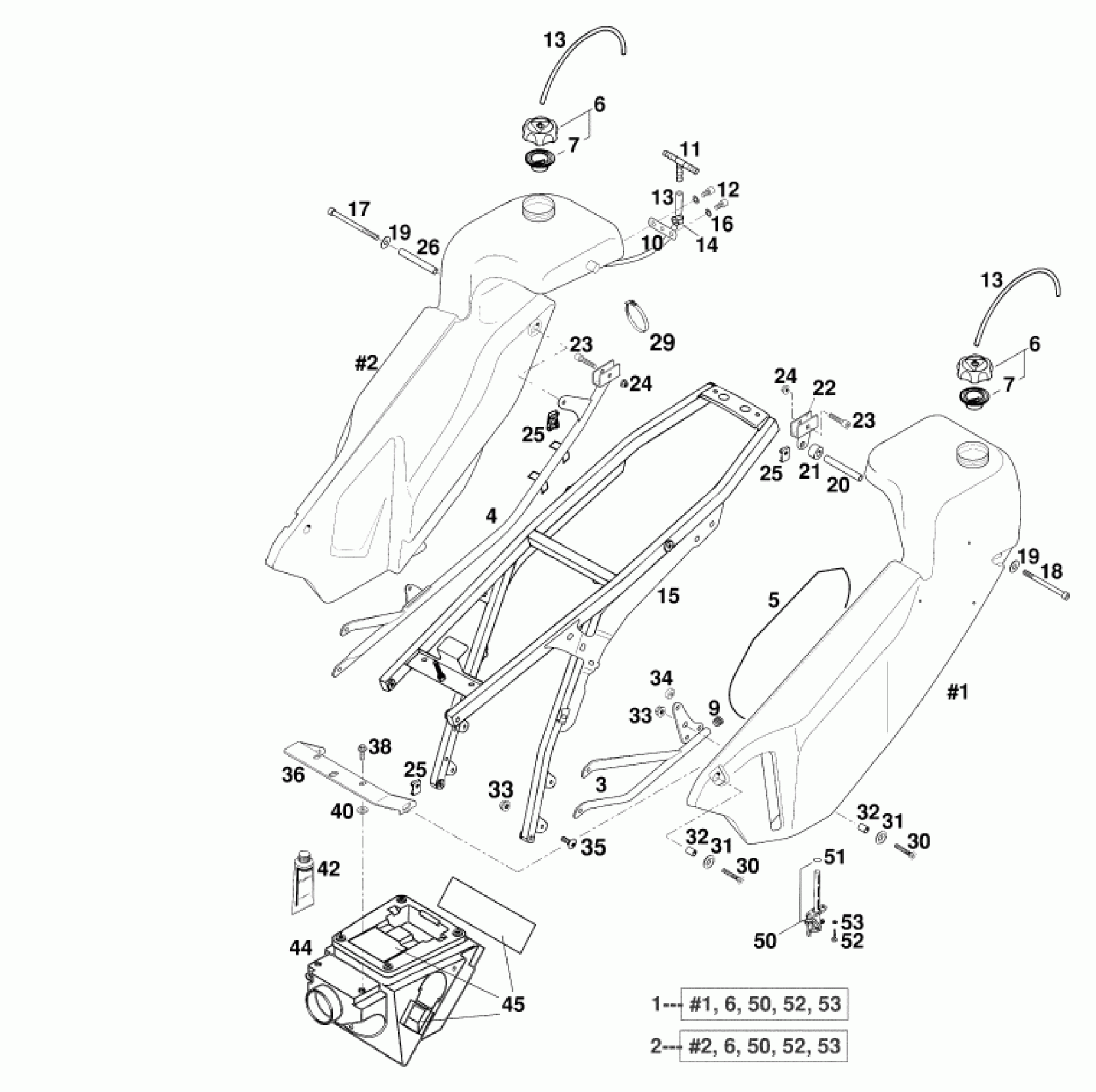

KTM 620 LC4 RALLYE '97 <1997> TANK, SEAT Diagram

#

Description
Price

0

GAS COCK L/S CPL. OFF-ON-RES

55007105200

Unavailable

1

SIDE GASTANK REAR L/S ORANGE

5831209600002

Unavailable

2

SIDE GASTANK REAR R/S ORANGE

5831219600002

Unavailable

3

BRACE SUB FRAME RALLYE L/S

58312097000

Unavailable

4

BRACE SUB FRAME RALLYE R/S

58512097080

Unavailable

5

HEAT PROTECTOR

58308041050

Unavailable

6

FILLER CAP CPL. SMALL

49007008044

Unavailable

7

% GASKET FOR FILLER CAP

49007009000

Unavailable

9

* PLUG

55003080000

Unavailable

11

T-CONNECTOR FOR FUEL LINE

58007015000

Unavailable

12

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

13

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

14

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

15

SUB FRAME RALLYE STEEL '97

58503002100

Unavailable

16

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

17

AH SCREW DIN912 M8x110

0912081103

Unavailable

18

AH SCREW DIN912 M8x105

0912081053

Unavailable

19

WASHER DIN9021-A 8,4

0021080003

Unavailable

20

SPACER TUBE 9X12X87

58312094000

Unavailable

21

SPACER BUSHING 12,4X25X14

26009582200

Unavailable

22

BRACKET FOR SIDETANK L/S

58312099064

Unavailable

23

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

24

SELF LOCKING NUT M6

56509064000

Unavailable

25

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

26

SPACER TUBE 9X12X94

58312194000

Unavailable

29

HOSE CLAMP 50-70MM

51006027000

Unavailable

30

FLAT HEAD SCREW DIN7991-M 8X30

0991080303

Unavailable

31

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

32

SPACER BUSHING 8,5X12X12,8

54303054000

Unavailable

33

54310086000

Unavailable

34

RUBBER BUFFER

54308042000

Unavailable

35

AH OVAL H.SCREW DIN0170-M 8X20

0107080203

Unavailable

36

TANK BRACKET BOW RALLYE

58312091000

Unavailable

38

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

40

WASHER 8,4 X 17 X 3

71004038000

Unavailable

42

* CONTACT GLUE FOR VLIES

58312099051

Unavailable

44

FILTER BOX CPL. WITH VLIES

58312099057

Unavailable

45

VLIES CUT FOR FILTER BOX

58312099050

Unavailable

50

GAS COCK R/S CPL. OFF-ON-RES

55007005200

Unavailable

51

O-RING 11X1,8 NBR 70

55007006200

Unavailable

52

HH S.MET.SCREW DIN7676- 5,5X

0676550223

Unavailable

53

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable
