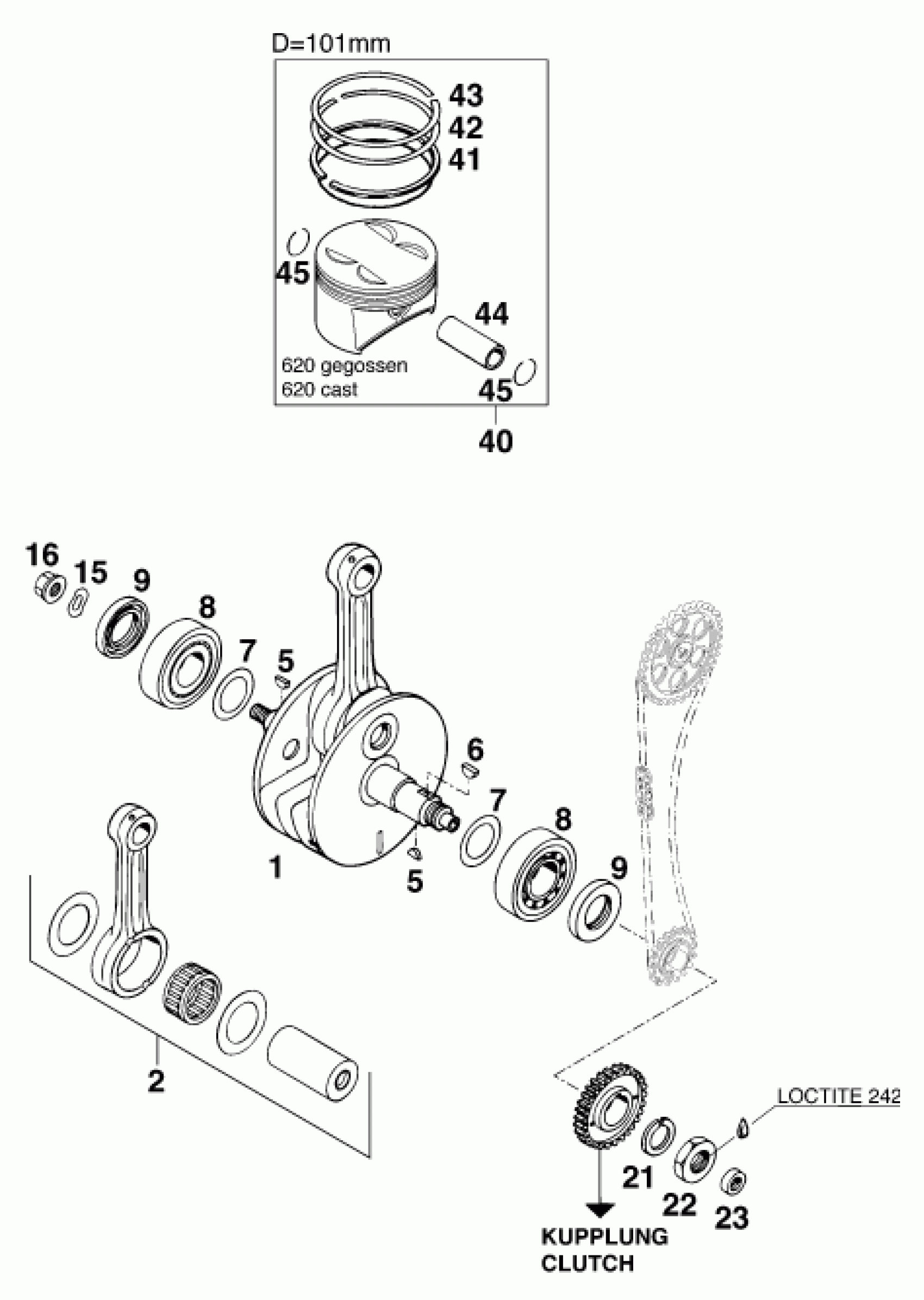

KTM 620 LC-4 '98 Competition <1998> CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL. 540/620 LC4'

58330018000

Unavailable

2

CONNECTING ROD REPAIR SET LC

58330015044

Unavailable

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

6

WOODRUFF KEY 5X6,5 HARDED

6946005

Unavailable

7

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

7

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

7

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

8

CYL.ROLLER BEARING NJ 306 C3

58030082000

Unavailable

9

SHAFT SEAL RING 30X47X7 BSL

0760304771

Unavailable

15

SPRING WASHER DIN0137-B12

0137120000

Unavailable

16

COLLAR NUT M12X1 LEFT WS=17

51030028100

Unavailable

21

LOCKING RING VSK 20

58030019000

Unavailable

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

Unavailable

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

Unavailable

40

58330007300 I

Unavailable

40

58330007300 II

Unavailable

41

OIL SCRAPER RING 101x2,5

58330031300

Unavailable

42

TAP.COMPR.PISTON RING 101X1,25

58330932100

Unavailable

43

RECTANGULAR RING 101x1,25

58330832000

Unavailable

44

PISTON PIN 22 X 13 X 60

58330833000

Unavailable

45

CIRCLIP C 22 X 1,5

58030074100

Unavailable
