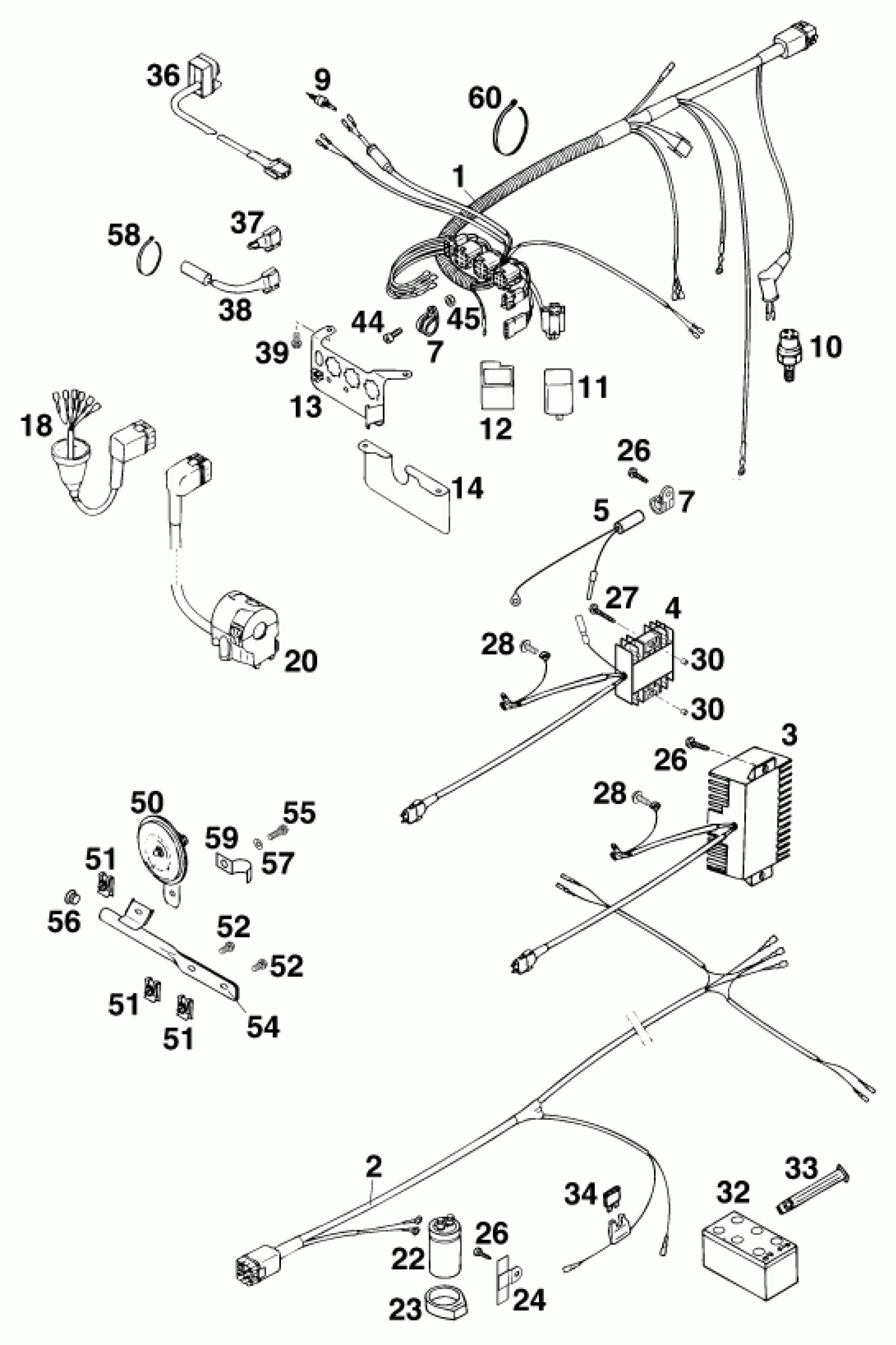

KTM 620 EGS WP 37KW 20LT VIOL '95 <1995> WIRING HARNESS Diagram

#

Description
Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

1

MAIN WIRING HARNESS SUPERCOMP.

58311175100

Unavailable

2

FLASHER LIGHT WIRING FRONT '95

58311177000

Unavailable

3

*TAIL LIGHT WIRING ACERBIS '95

58311176100

Unavailable

4

TAIL LIGHT WIRING CEV '95

58311176000

Unavailable

5

FLASHER LIGHT WIRING REAR '95

58311178000

Unavailable

7

VOLTAGE REG'R ULO 12V LC4

58011234100

Unavailable

8

% VOLTAGE REGULATOR SHINDENGEN

58311034000

Unavailable

9

DIODE FOR REGULATOR SHINDENGEN

58311030100

Unavailable

10

LIGHT SWITCH CEV 9607 '93

58311070000

Unavailable

11

FLASHER SWITCH CEV '95

58011371000

Unavailable

15

* FLASHER UNIT

44611207000

Unavailable

16

* FLASHER LIGHT BRACKET

54511046000

Unavailable

17

CONDENSATOR 25V, 10.000 MF

49111435100

Unavailable

18

CAPACITOR BRACKET

54511048000

Unavailable

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

21

BRACKET FOR CONNECTOR '93

54611083100

Unavailable

25

FRONT BRAKE LIGHT SWITCH

51011050000

Unavailable

26

BRAKE LIGHT SWITCH

42013121000

Unavailable

28

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

32

CLAMP RSGU 15/12

49007439000

Unavailable

33

BUSHING 6,5 X 12 X 9

56535035000

Unavailable

35

SHEET MET.SCR.DIN7981- 5,5x19

0981550193

Unavailable

36

SHEET MET.SCR.DIN7981- 5,5X39

0981550393

Unavailable

37

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

40

54511060000

Unavailable

42

clip nut M6

54603048100

Unavailable

43

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

45

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

46

WASHER DIN0125-A 6,4

0125060003

Unavailable

48

BRACKET FOR HORN '93

58307021000

Unavailable

49

Plug SFL16

50210086000

Unavailable

50

* CABLE TIE 180MM

44011076180

Unavailable
