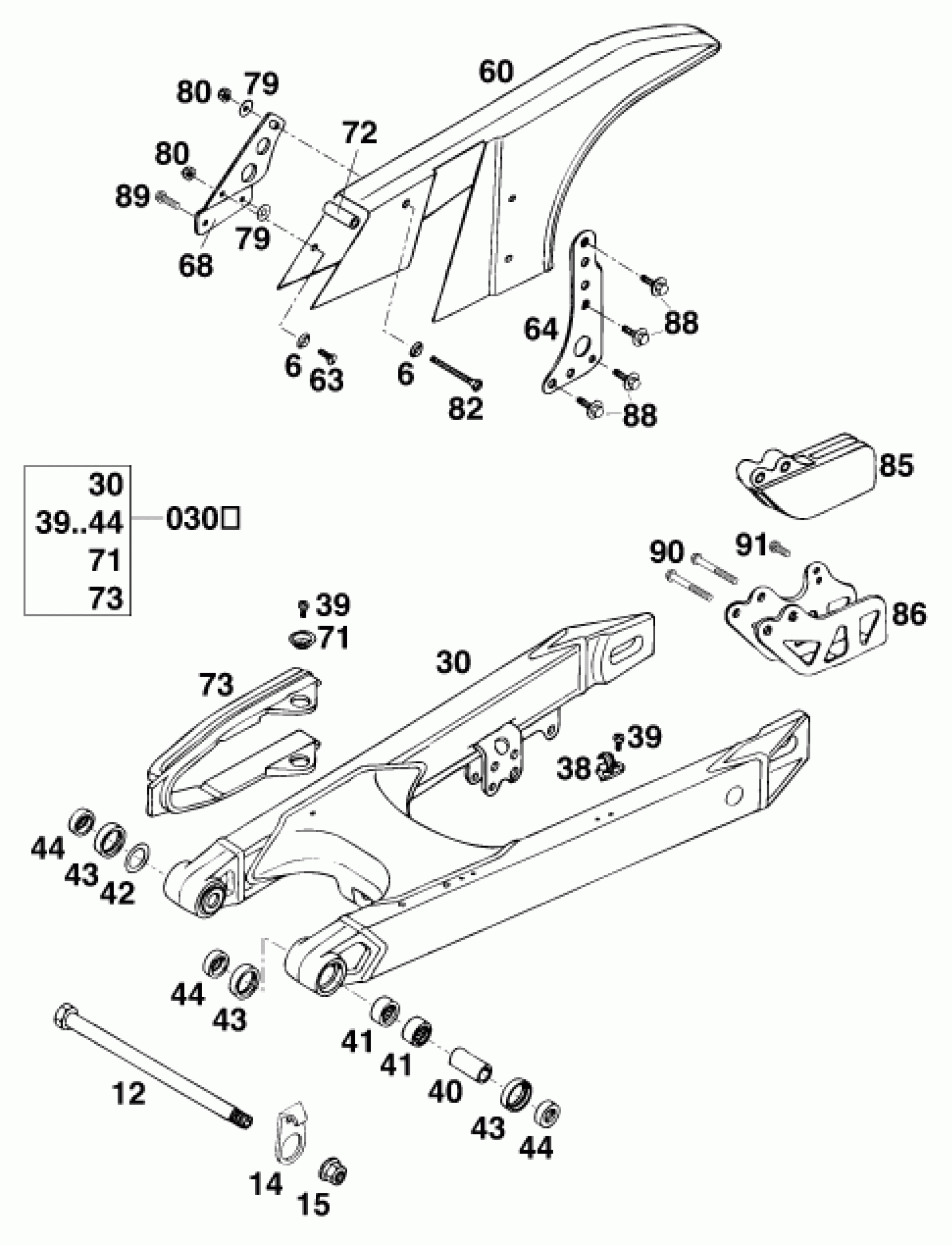

KTM 620 EGS WP 37KW 20LT VIOL '95 <1995> SWING ARM Diagram

#

Description
Price

6

WASHER 6MM

40006006000

Unavailable

12

54603014000

Unavailable

14

BRAKE HOSE GUIDE '89

50230211000

Unavailable

15

Self locking nut M14x1.5 WS19

54603015000

Unavailable

30

% SWINGARM LOOSE 570MM "4" '94

58303030100

Unavailable

30

SWINGARM CPL. 570MM ''4'' '94

58303030144

Unavailable

30

SWINGARM LOOSE 570MM LC4'95

58303130100

Unavailable

30

% SWINGARM CPL. 570MM LC4'95

58303130144

Unavailable

38

RETAINING CLAMP FOR BRAKE HOSE

54611076000

Unavailable

39

SPECIAL SCREW M 5,0X10

0010050103

Unavailable

40

BUSHING SLEEVE 15X20X38,75

50203081700

Unavailable

41

NEEDLE BUSH HK 2012

50203097000

Unavailable

42

STOP DISK 22,2X31,7X1

54603036000

Unavailable

43

radial shaft seal 25x32x7

0760253270

Unavailable

44

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

Unavailable

60

CHAIN GUARD '87

50207060000

Unavailable

64

RETAINING PLATE FOR CHAINGUARD

54407064000

Unavailable

68

RETAINING PLATE

50207068000

Unavailable

71

BUCKET

72210079000

Unavailable

72

SPACER L=36MM

50107072100

Unavailable

73

* CHAIN SLIDING GUARD '92

50207073000

Unavailable

79

Washer DIN9021-A 6.4

0021060003

Unavailable

80

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

82

* FLAT HEAD SCREW DIN963 M6x55

0963060553

Unavailable

85

CHAIN GUIDE REAR '94

54607066100

Unavailable

86

RETAINING PLATE CHAIN GUIDE'

50207070000

Unavailable

88

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

89

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

90

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

91

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable
