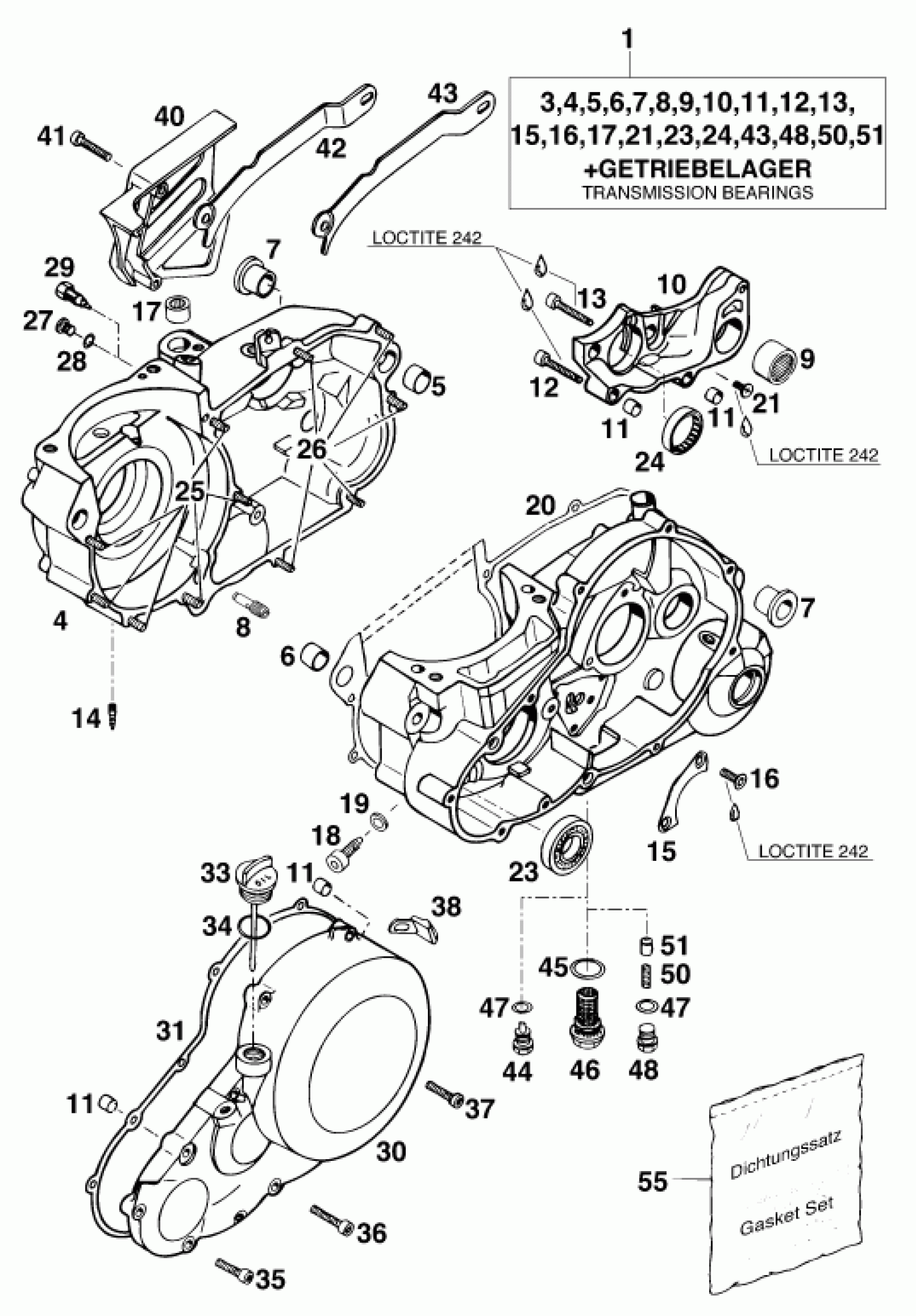

KTM 620 EGS WP 37KW 20LT VIOL '95 <1995> ENGINE CASE Diagram

#

Description
Price

1

% ENGINE CASE CPL.W.TRANSMISSI

58330000144

Unavailable

5

DOWEL 19 X15,1X12

50130027000

Unavailable

6

DOWEL 17 X 13 X 12

51030026100

Unavailable

7

CRANK CASE BUSH

50130010000

Unavailable

8

58338027044

Unavailable

9

NEEDLE BEARING HK 2216

58033097000

Unavailable

10

SHIFT MECHANISM SUPPORT LC4'94

58330011000

Unavailable

11

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

12

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

13

AH SCREW DIN0912-M 6X40

0912060403

Unavailable

14

TUBE LW 3

49130450050

Unavailable

15

RETAINING PLATE

56530017000

Unavailable

16

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

17

NEEDLE BEARING HK 1212

50332095000

Unavailable

18

LOCATING SCREW M8 L=23

58030080000

Unavailable

19

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

20

ENGINE CASE GASKET '94

58330039000

Unavailable

21

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

23

GROOVED BALL BEARING 16003 C3

0625160030

Unavailable

24

BALL BEARING 61805 C3

0625618050

Unavailable

25

AH SCREW DIN0912-M 6X55

0912060553

Unavailable

26

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

Unavailable

28

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

29

CONTACT SCREW M10 '

58011081000

Unavailable

31

CLUTCH COVER GASKET '94

58330025000

Unavailable

33

OIL DIPSTICK CPL. LONG

58330020044

Unavailable

34

O-RING 16,00X3,00 NBR 70

0770160030

Unavailable

35

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

36

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

37

AH SCREW DIN6912 M6X25

0984060252

Unavailable

38

BUMP RUBBER

58333041000

Unavailable

40

CHAIN COVER BLACK '

58030050600

Unavailable

41

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

42

CHAIN DAMPER SHEET LC4 '90

58030047515

Unavailable

43

CHAIN DAMPER SHEET DUKE'94

58030047615

Unavailable

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

45

SEAL RING 22x27x1 (COPPER)

58038017000

Unavailable

46

OIL PLUG M22x1,5

58038019000

Unavailable

47

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

48

PLUG DIN910 M12x1,5

0910120153

Unavailable

50

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

51

VALVE PISTON D=10MM

58038028000

Unavailable

55

GASKET SET 400/620

58330100000

Unavailable
