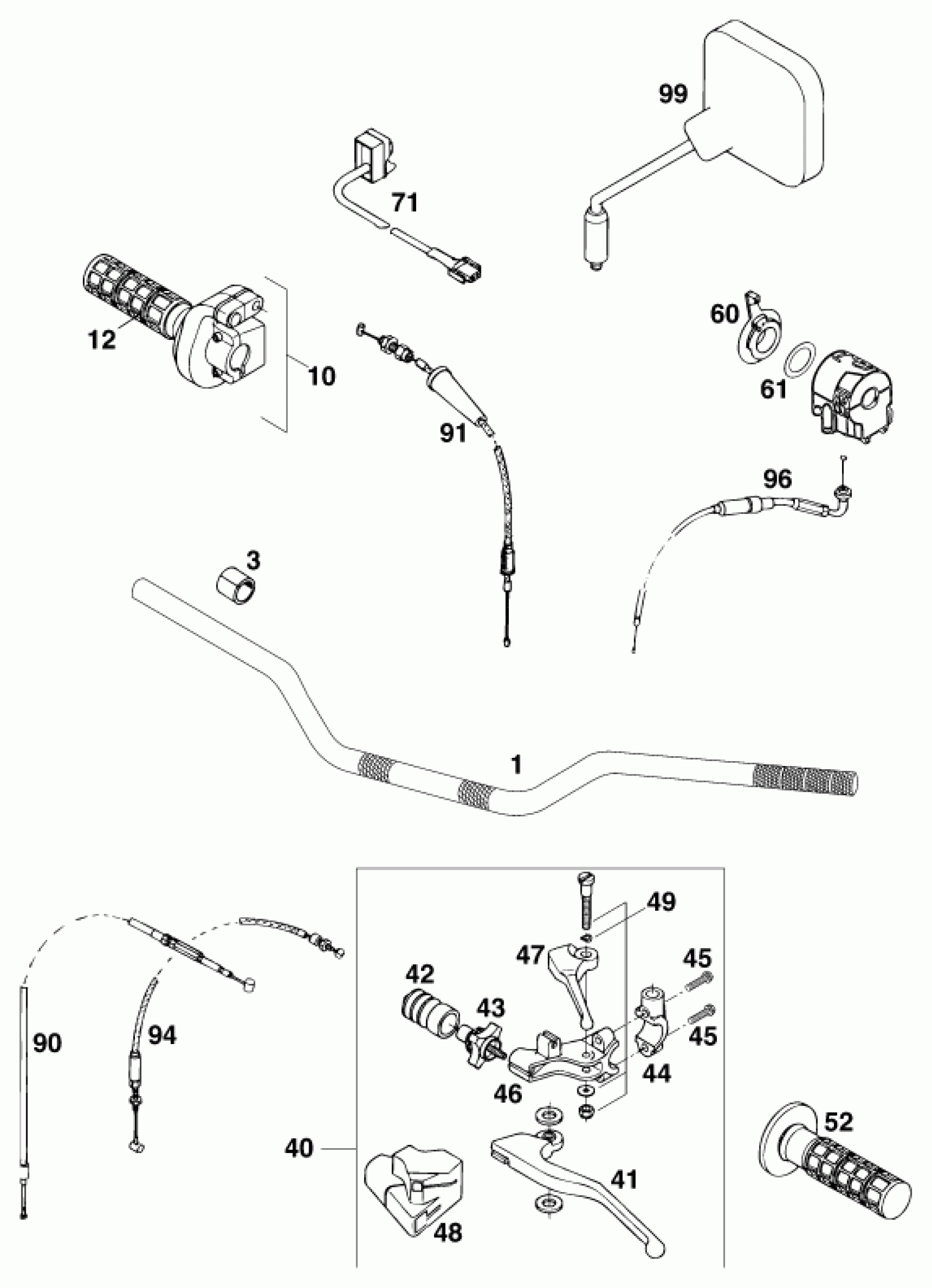

KTM 620 EGS WP 37KW 20LT ROT <1996> HANDLEBAR, CONTROLS Diagram

#

Description
Price

0

Rear view mirror right

58012140000

Unavailable

1

ALU-HANDLABAR AFAM '96

58302001200

Unavailable

2

ALU-HANDLEBAR '95

50202001000

Unavailable

10

THROTTLE GRIP CPL.DOMINO '93

58302010000

Unavailable

12

TWIST GRIP COVER DOMINO

58302003000

Unavailable

40

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

Unavailable

41

CLUTCH LEVER LOOSE

58302055000

Unavailable

42

CLUTCH LEVER BOOT '95

58302126000

Unavailable

43

ADJUSTMENT SCREW CPL.M7

58302043000

Unavailable

44

CLAMP MIRROW M10x1,25

58302044000

Unavailable

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

46

JOINT DOMINO

58302023000

Unavailable

47

DECOMPRESSION LEVER LOOSE

58302047000

Unavailable

48

PROTECTING COVER

58302048000

Unavailable

49

LEVER SCREW CPL.

58302049000

Unavailable

52

FIXED GRIP DOMINO '93

58302052000

Unavailable

60

CHOKE LEVER DOMINO '94

58302050100

Unavailable

71

SHORT CIRCUIT SWITCH 550MM '94

58311071100

Unavailable

90

CLUTCH CABLE 125/LC4 TSK '

50202090200

Unavailable

91

THROTTLE CABLE DOMINODELLORTO

58302091000

Unavailable

94

DECOMPRESSION CABLE LC4 '93

58302094000

Unavailable

96

CHOKE CABLE LC4 '94

58302095100

Unavailable

99

Rear view mirror left

58012040000

Unavailable
