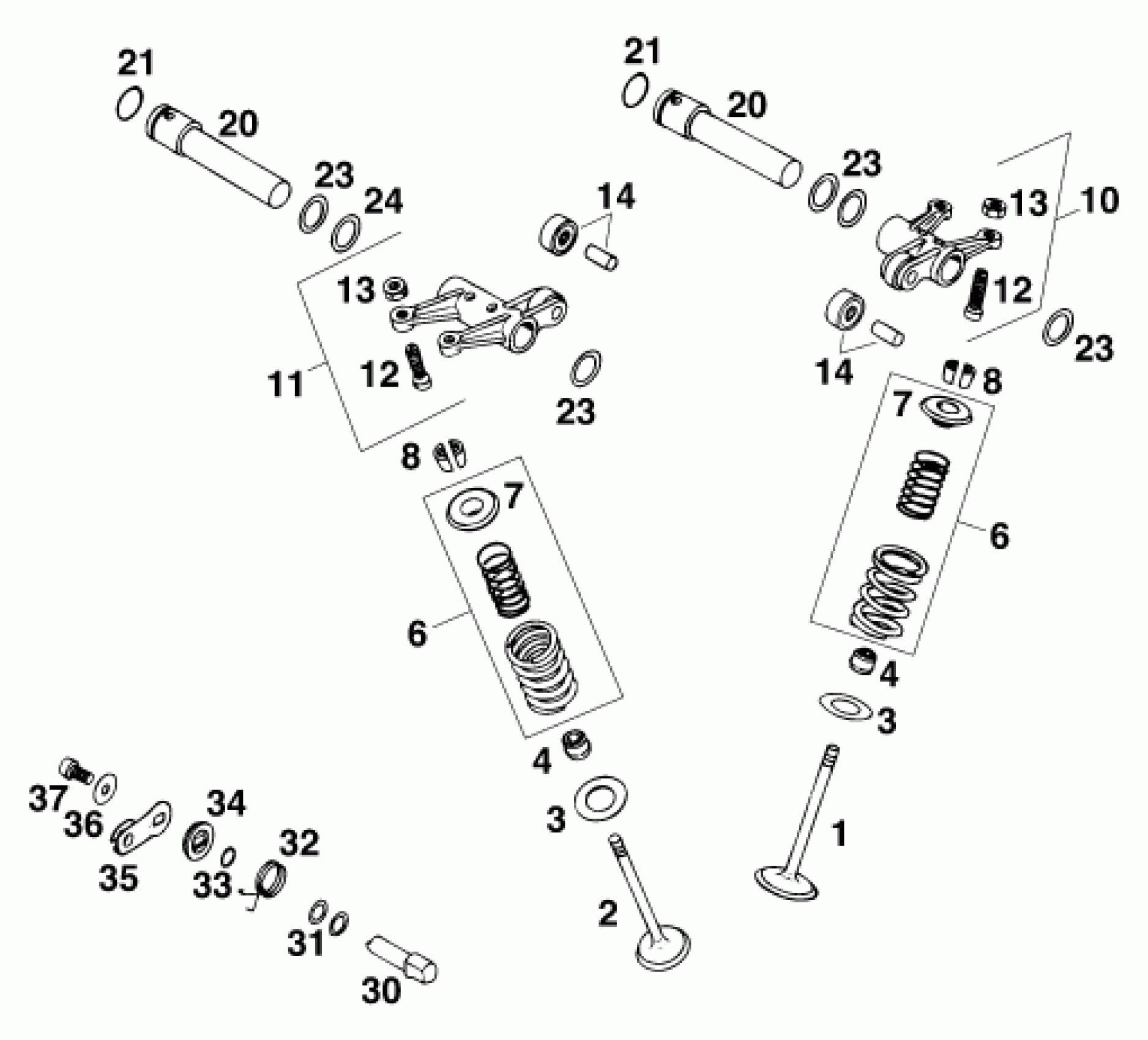

KTM 620 EGS WP 37KW 20LT '94 <1994> VALVE DRIVE Diagram

#

Description
Price

1

INTAKE VALVE D=36 MM

58036030000

Unavailable

2

EXHAUST VALVE 30 MM

58036031000

Unavailable

3

STOP DISK 12,2x29,5x1

58036027000

Unavailable

4

VALVE-STEAM SEALING

58036028000

Unavailable

6

PROGR.VALVE SPRING KIT'95

58336029044

Unavailable

7

VALVE-SPRING RETAINER ALU '95

58036032700

Unavailable

8

VALVE COLLET MK7

58036033000

Unavailable

10

ROCKER ARM INTAKE CPL.

58036060644

Unavailable

11

ROCKER ARM EXHAUST CPL. '91

58036061644

Unavailable

12

ADJUSTMENT SCREW CPL. M 7X0,75

58036062600

Unavailable

13

HEXAGON NUT DIN0934-M 7X0,75

0934070756

Unavailable

14

ROCKER ARM ROLLER CPL. INTAKE

58036061090

Unavailable

20

ROCKER ARM SHAFT L=96MM

58036056100

Unavailable

21

O-RING 15,08 X 2,62 NBR 70

58036095000

Unavailable

23

THRUST WASHER DIN0988-16X22X1

0988162210

Unavailable

24

THRUST WASH. DIN0988-16X22X0,5

0988162205

Unavailable

30

DECOMPRESSION SHAFT

58036050100

Unavailable

31

WASHER 10X14X0,5 STEEL

54334015000

Unavailable

31

WASHER 10X14X0,3 STEEL

54334015100

Unavailable

31

WASHER 10X14X0,15 STEEL

54334015200

Unavailable

32

DECOMP.LEVER SPRING

58036059200

Unavailable

33

O-RING 10,00X2,20 SILICONE

0770100221

Unavailable

34

COVER DISK

58036048000

Unavailable

35

DECOMPRESSION LEVER

58036049500

Unavailable

36

Washer DIN9021-A 6.4

0021060003

Unavailable

37

AH SCREW DIN0912-M 6X10

0912060103

Unavailable
