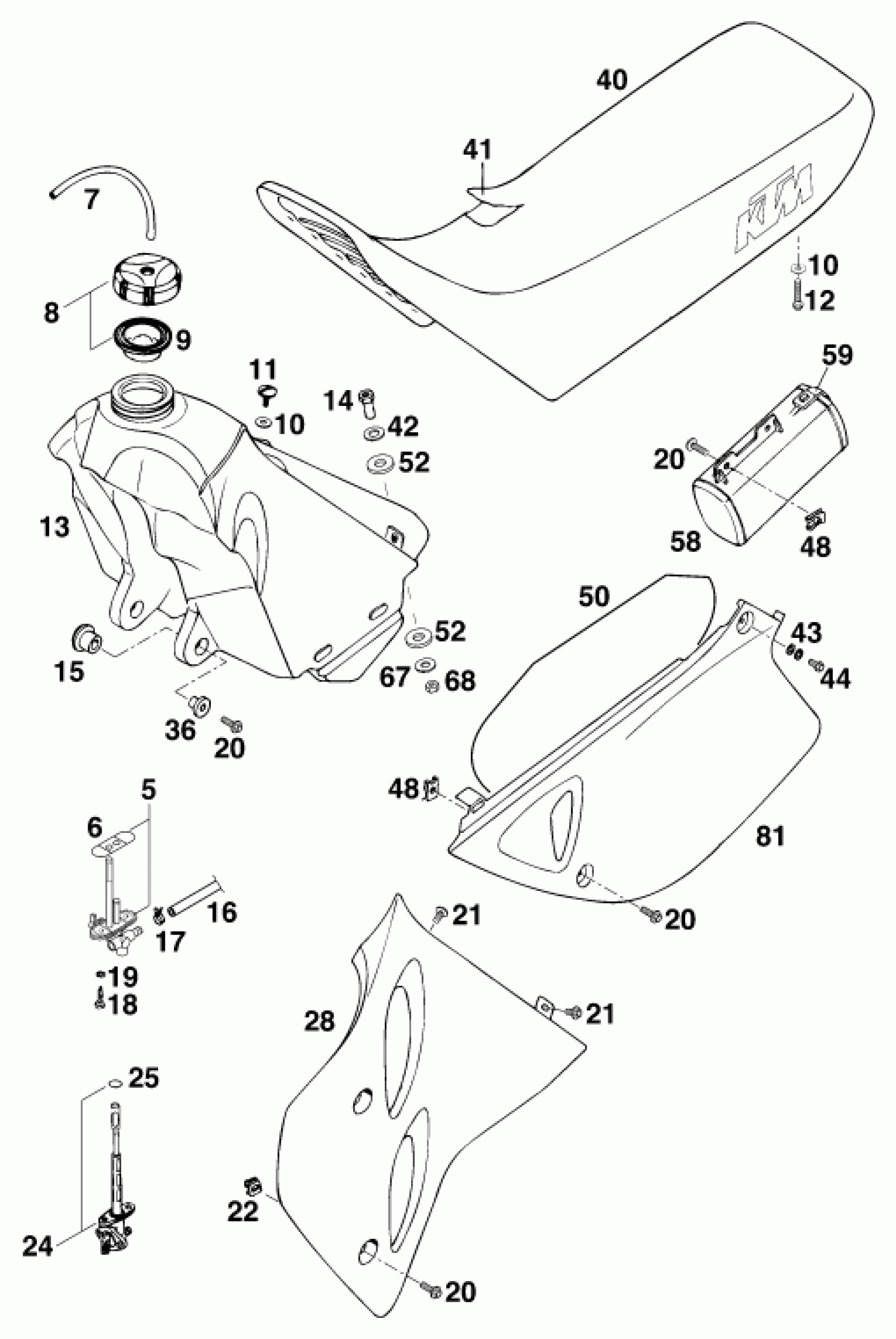

KTM 620 EGS WP 20KW <1996> TANK, SEAT Diagram

#

Description
Price

0

* SIDE COVER WHITE R/S '93

58308042000

Unavailable

0

SIDE COVER ORANGE R/S '96

5830804200002

Unavailable

0

SPOILER WHITE R/S '93

58335029000

Unavailable

0

SPOILER ORANGE R/S '96

5833502900002

Unavailable

5

FUEL COCK MIKUNI CK-84 '96

58307005100

Unavailable

6

GASKET FUEL COCK MIKUNI

58307106100

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

TANK CAP CPL. LARGE

56007008144

Unavailable

9

GASKET FOR TANK CAP

56007009100

Unavailable

10

WASHER DIN0125-A 6,4

0125060003

Unavailable

11

OVAL HEAD SCREW M6X15

58007044000

Unavailable

12

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

13

* FUEL TANK 11,3LT. '96

58307013300

Unavailable

14

SPECIAL NUT M8

58307014000

Unavailable

15

rubber bushing

56401040000

Unavailable

16

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

17

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

18

HH S.MET.SCREW DIN7676- 5,5X

0676550223

Unavailable

19

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

20

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

21

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

22

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

24

FUEL COCK CPL. OFF-ON-RES

58307105200

Unavailable

25

O-RING 11X1,8 NBR 70

55007006200

Unavailable

28

SPOILER WHITE L/S '93

58335028000

Unavailable

28

* SPOILER ORANGE L/S '96

5833502800002

Unavailable

36

BUSHING

54635036000

Unavailable

40

SEAT WIDE EGS '96

58307040800

Unavailable

40

SEAT BLACK/RED WIDE '96

58307040900

Unavailable

40

SEAT LOW EGS '96

58307140400

Unavailable

40

SEAT NARROW EXC,EGS '96

58307140500

Unavailable

41

% SEAT COVER WIDE EGS '96

58307040850

Unavailable

41

% SEAT COVER BLACK/RED

58307040950

Unavailable

41

SEAT COVER LOW EGS '96

58307140450

Unavailable

41

SEAT COVER NARROW '96

58307140550

Unavailable

42

WASHER 10,5 X 25 X 1,5

58307019000

Unavailable

43

Pair of washers M6 NORDLOCK

50233041000

Unavailable

44

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

48

clip nut M6

54603048100

Unavailable

50

HEAT PROTECTOR

58308041050

Unavailable

52

INSOLATE WASHER 12X28X3

51005067100

Unavailable

58

TOOL BOX CPL. '92

58012058000

Unavailable

59

RUBBER FOR TOOL BOX '92

58012058050

Unavailable

67

WASHER DIN9021-A 8,4

0021080003

Unavailable

68

Hexagon nut DIN934 M8

0934080003

Unavailable

81

* SIDE COVER WHITE L/S '93

58308041000

Unavailable

81

SIDE COVER ORANGE L/S '96

5830804100002

Unavailable
