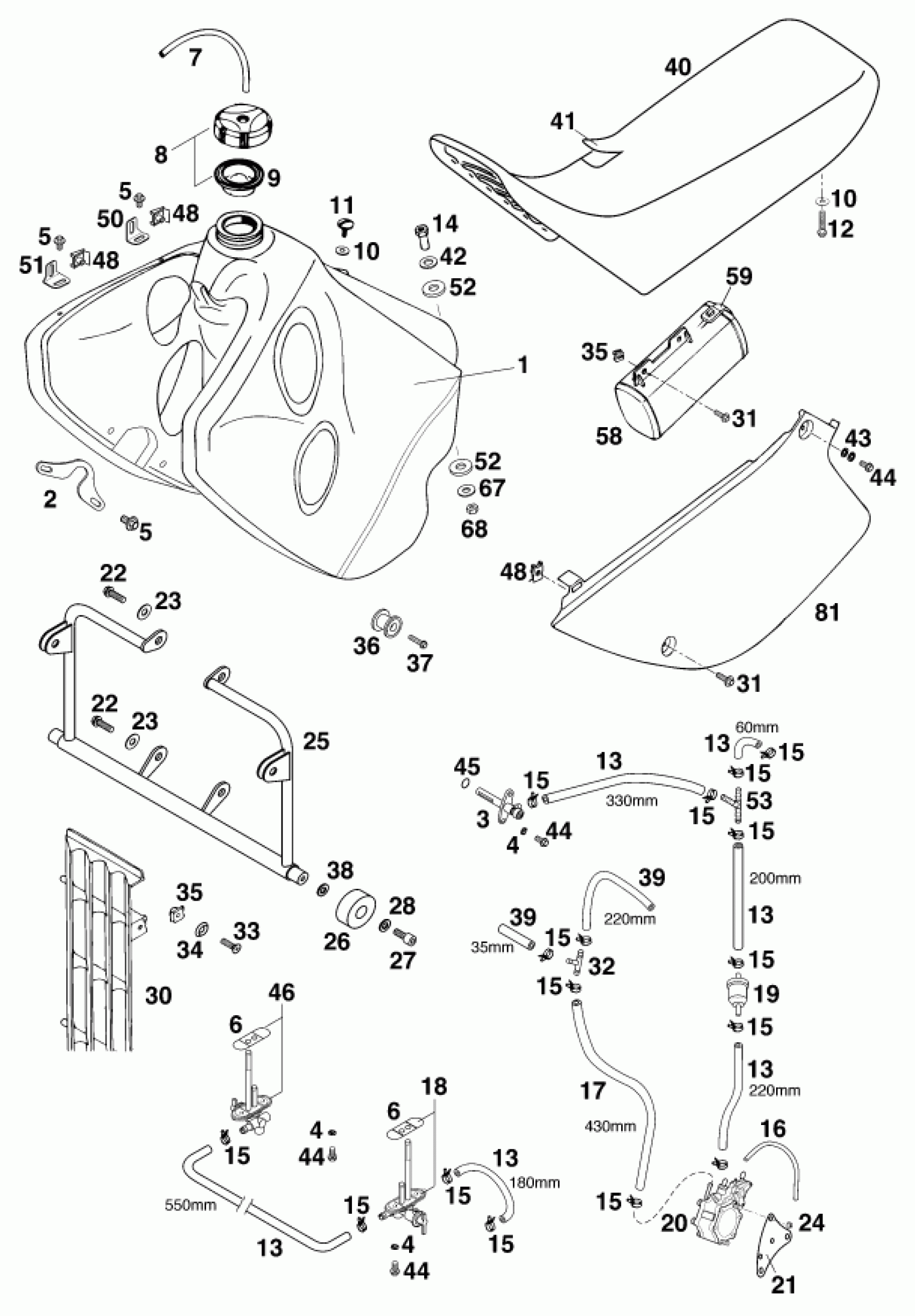

KTM 620 EGS-E ADVENTURE <1997> TANK, SEAT Diagram

#

Description
Price

0

RADIATOR PROTECTOR R/S BLACK

58035134000

Unavailable

0

BRACKET R/S TOP '97

58211001061

Unavailable

0

SIDE COVER ORANGE R/S '97

5830804200004

Unavailable

1

GASTANK 30 LIT. NYLON ADV. '97

58207013000

Unavailable

2

BRACKET FOR 30 LITER TANK

58507023000

Unavailable

3

FUEL COCK CPL. SM. RALLYE'96

58507003000

Unavailable

4

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

5

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

6

GASKET FUEL COCK MIKUNI

58307106100

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

TANK CAP CPL. LARGE

56007008144

Unavailable

9

GASKET FOR TANK CAP

56007009100

Unavailable

10

WASHER DIN0125-A 6,4

0125060003

Unavailable

11

OVAL HEAD SCREW M6X15

58007044000

Unavailable

12

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

13

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

14

SPECIAL NUT M8

58307014000

Unavailable

15

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

16

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

17

HOSE 6X10 PER METER

58205035001

Unavailable

18

FUEL COCK MIKUNI CK-86 '96

58307105300

Unavailable

19

FUEL FILTER ELEMENT

58312099052

Unavailable

20

FUEL PUMP MIKUNI RALLYE

58312093000

Unavailable

21

fuel pump braket

58312095100

Unavailable

22

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

23

Washer DIN9021-A 6.4

0021060003

Unavailable

24

Self locking nut DIN 985 M5

0985050003

Unavailable

25

BRACKET FOR 30 LITER TANK'97

58512092000

Unavailable

26

TANKROLL 13X36X16

50107015000

Unavailable

27

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

28

WASHER DIN0125-A 6,4

0125060003

Unavailable

30

RADIATOR PROTECTOR L/S BLACK

58035034000

Unavailable

31

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

32

T-CONNECTION 5MM TS5 FOR ADV.

58405030000

Unavailable

33

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

34

WASHER 6MM

40006006000

Unavailable

35

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

36

TANK BUSHING CPL. 12 X 34 X 25

58307113250

Unavailable

37

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

38

WASHER 6 X 12 X 3

12011016000

Unavailable

39

ND-HOSE 4X9 PER METER

58405029001

Unavailable

40

SEAT WIDE ANTHRAZIT ADV.'97

58207040000

Unavailable

41

SEAT COVER ANTHRAZIT ADV.'97

58207040050

Unavailable

42

WASHER 10,5 X 25 X 1,5

58307019000

Unavailable

43

Pair of washers M6 NORDLOCK

50233041000

Unavailable

44

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

45

O-RING 11X1,8 NBR 70

55007006200

Unavailable

46

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

Unavailable

48

clip nut M6

54603048100

Unavailable

50

BRACKET L/S TOP '97

58211001060

Unavailable

51

BRACKET BELOW FOR MASK '97

58211001062

Unavailable

52

INSOLATE WASHER 12X28X3

51005067100

Unavailable

53

T-CONNECTOR FOR FUEL LINE

58007015000

Unavailable

58

TOOL BOX CPL. '92

58012058000

Unavailable

59

RUBBER FOR TOOL BOX '92

58012058050

Unavailable

67

WASHER DIN9021-A 8,4

0021080003

Unavailable

68

Hexagon nut DIN934 M8

0934080003

Unavailable

81

SIDE COVER L/S ADVENTURE '97

5820804100004

Unavailable
