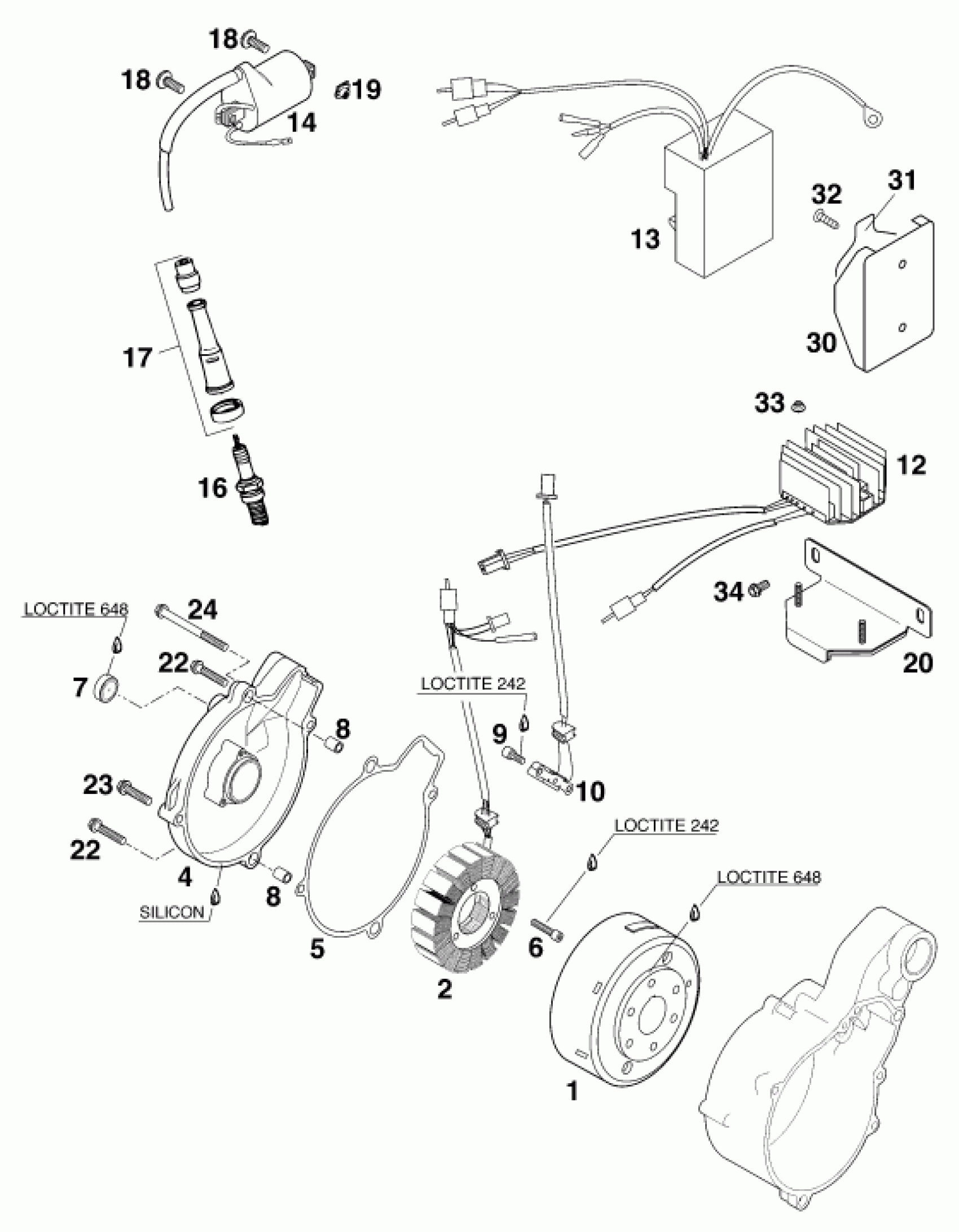

KTM 620 EGS-E ADVENTURE <1997> IGNITION SYSTEM Diagram

#

Description
Price

1

FLYWHEEL KOKUSAN GP9128 '97

58439005100

Unavailable

2

STATOR KOKUSAN LOOSE '96

58439004000

Unavailable

4

IGNITION COVER CPL. LC4-E '

58430002144

Unavailable

4

IGNITION COVER CPL. LC4-E '97

5843000214429

Unavailable

5

IGNITION COVER GASKET '96

58430040000

Unavailable

6

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

7

INSPECTION GLASS GW 20-7

58430095000

Unavailable

8

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

9

SHCS DIN 912 M5x8

0912050083

Unavailable

10

PULSER COIL

58439034000

Unavailable

12

VOLT.REGULATOR-RECTIFIER 12V

58411034100

Unavailable

13

DIGITALBOX CDI CB7428 '97

58439031100

Unavailable

14

Ignition coil

58439006000

Unavailable

16

SPARK PLUG NGK DR8EA

58439093008

Unavailable

17

Spark plug connector

58031010000

Unavailable

18

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

19

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

20

BATTERY BRACKET LC4-E/DUKE'97

58411055100

Unavailable

22

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

23

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

24

HH COLLAR SCREW M 6X80 WS=8

0015060803

Unavailable

30

RUBBER BRACKET FOR CDI '97

58439030100

Unavailable

31

SUPPORT FOR RUBBER BRACKET '97

58439030150

Unavailable

32

SPECIAL SCREW Z 5,5X16

0016055163

Unavailable

33

SELF LOCKING NUT M6

56509064000

Unavailable

34

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable
