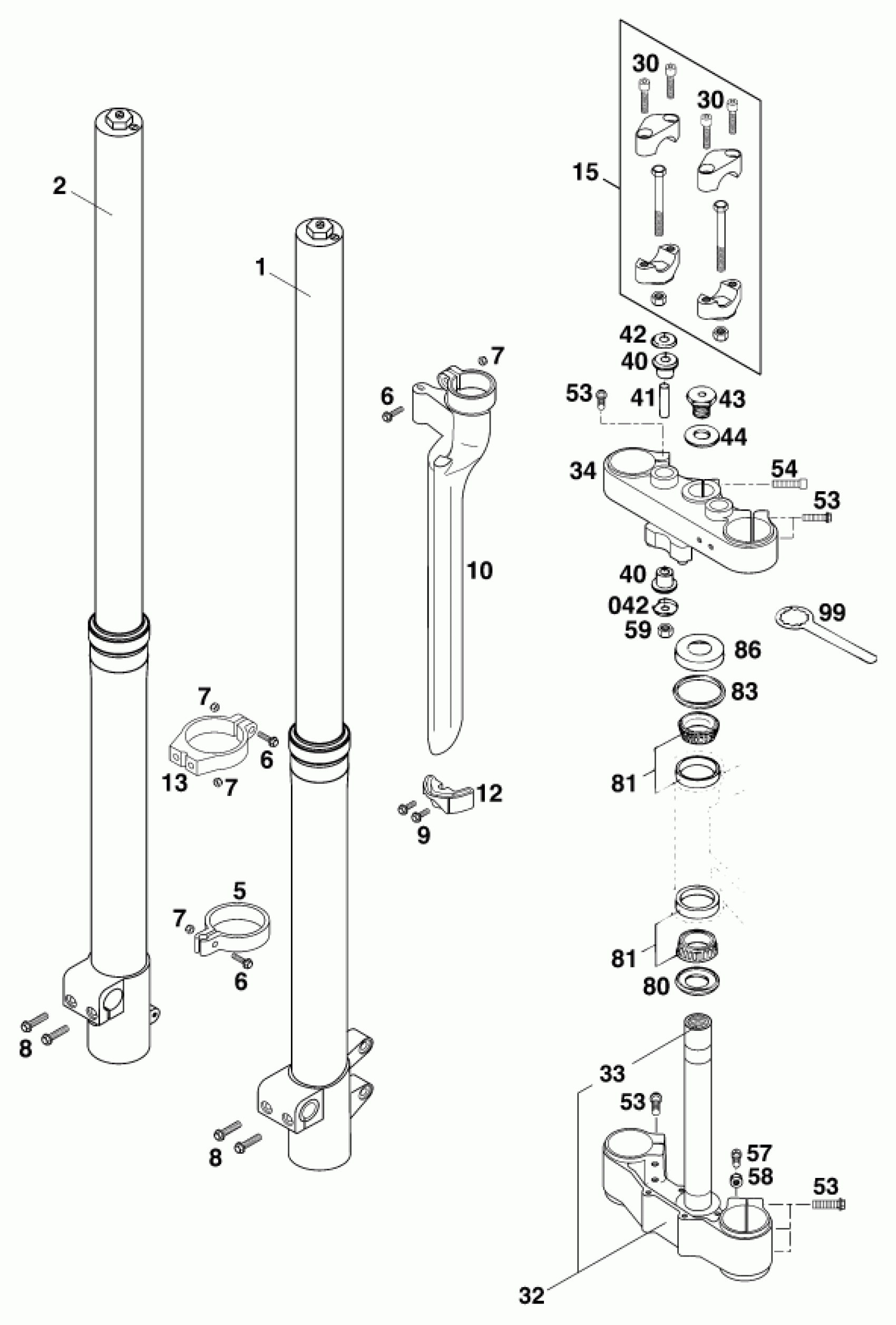

KTM 620 EGS-E ADVENTURE <1997> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

0

FORK PROTECTOR R/S BLACK '97

50301093000

Unavailable

0

FORK PROTECTION GUIDE R/S '97

5460139000030

Unavailable

1

% FORK LEG L/S WP "K4T97AD" '

58201001000

Unavailable

2

% FORK LEG R/S WP "K4T97AD" '

58201002000

Unavailable

5

SP.CABLE GUIDE MARZ.50,WP50'97

50301070000

Unavailable

6

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

7

Self locking nut DIN 985 M5

0985050003

Unavailable

8

HH COLLAR SCREW M 7X25 WS=8

0015070253

Unavailable

9

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

10

FORK PROTECTOR L/S BLACK '97

50301092000

Unavailable

12

FORK PROTECTION GUIDE L/S '97

5460129000030

Unavailable

13

CLAMP PROTECTOR GUIDE SXC, ADV

50301090150

Unavailable

15

SUPPORTKIT F.HANDL.DUKE,ADV'97

58402001050

Unavailable

30

AH SCREW DIN0912-M 8X35

0912080353

Unavailable

32

BOT.TRIPLE CLAMP X=16MM/D=50MM

50301032016

Unavailable

33

FORK TUBE L=244 '91

50101033100

Unavailable

34

TOP TRIPLE CLAMP X=16MM/D=50MM

58201034016

Unavailable

40

rubber bushing

56401040000

Unavailable

41

SPACER TUBE 10,2X12X44

56401041100

Unavailable

42

washer 10.5x32x2

56401042000

Unavailable

42

WASHER 10,5X31

56401142000

Unavailable

43

HH SCREW M20X1,5

56401043000

Unavailable

44

WASHER 21X38X3

56401044000

Unavailable

53

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

54

AH SCREW DIN0912-M 8X35

0912080353

Unavailable

57

HH SCREW DIN0933-M 8X25

0933080253

Unavailable

58

Hexagon nut DIN934 M8

0934080003

Unavailable

59

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

80

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

81

TAPERED ROLLER BEARING CPL.

54201081000

Unavailable

83

STEARING HEAD GASKET TOP

54601184000

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

99

RING WRENCH WS=32

54212035000

Unavailable
