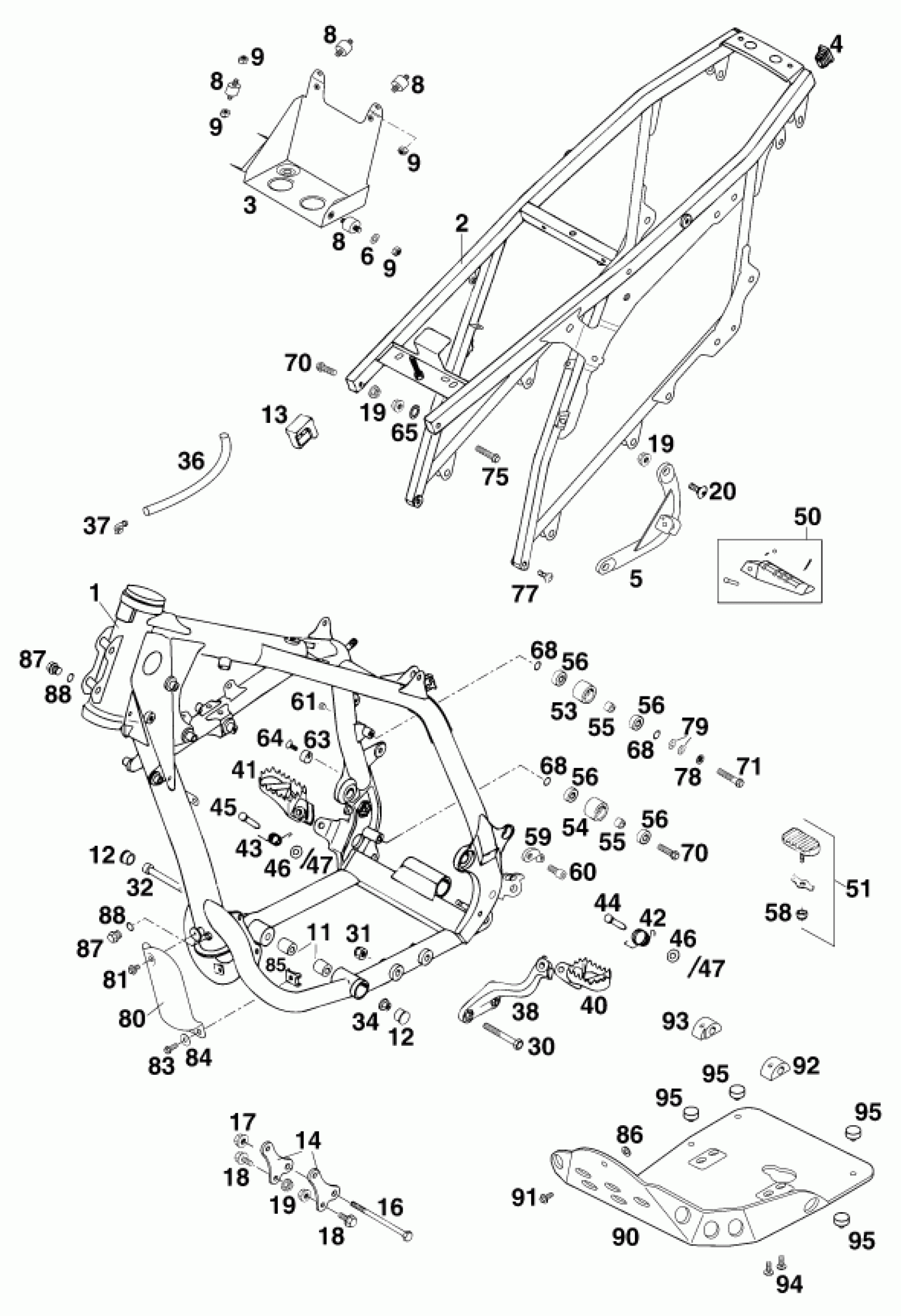

KTM 620 EGS-E ADVENTURE <1997> FRAME Diagram

#

Description
Price

0

FOOTREST REAR R/S''R''STING,AD

51103051000

Unavailable

0

FOOTREST BRACKET REAR R/S ADV.

58203004000

Unavailable

1

FRAME W. OILRESERVOIR ADV. '97

58203001000

Unavailable

2

SUB FRAME CPL.STEEL ADVENT.'97

58203002000

Unavailable

3

BRACKET FOR BATTERY LC4-E '

58403002170

Unavailable

4

PLUG 12 X 17 MM

58303002090

Unavailable

5

FOOTREST BRACKET REAR L/S ADV.

58203003000

Unavailable

6

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

8

RUBBER GROMMET 20X15-M6X8-(2)

58403002010

Unavailable

9

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

11

SPACER ROLLER 10,3X20X22

58003012000

Unavailable

12

PVC CAP D=22MM

71001012000

Unavailable

13

TANK SUPPORT '93

58307015000

Unavailable

14

ENGINE SUPPORT AGW '94

58303055000

Unavailable

16

HH SCREW DIN0931-M10X110

0931101103

Unavailable

17

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

18

HH COLLAR SCREW M 8X16 WS=13

49109481052

Unavailable

19

54310086000

Unavailable

20

AH OVAL H.SCREW DIN0170-M 8X20

0107080203

Unavailable

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

32

AH SCREW DIN0912-M10X160

0912101603

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

Unavailable

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

ANGLE PIECE '97

50303089000

Unavailable

38

FOOTREST BRACKET L/S '93

58303038000

Unavailable

40

FOOTREST L/S ADVENTURE '97

58203040000

Unavailable

41

FOOTREST R/S ADVENTURE '97

58203041000

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

BOLT FOR FOOTREST

58303044000

Unavailable

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

46

washer DIN 125 A 10.5

0125100003

Unavailable

47

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

50

FOOTREST REAR L/S''L''STING,AD

51103050000

Unavailable

51

FOOTREST RUBBER CPL. '94

58303045044

Unavailable

53

CHAIN ROLL D=30MM

50203053000

Unavailable

54

CHAIN ROLL D=35MM

50203053100

Unavailable

55

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

56

Grooved ball bearing 608 2RS C

0625006087

Unavailable

58

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

59

SWITCH BRACKET F. ADVENTURE'97

58203029000

Unavailable

60

AH SCREW DIN0912-M10X16

0912100160

Unavailable

61

PLASTIC CAP SFL10

54403135000

Unavailable

63

BRAKE LEVER STOP '93

58303063000

Unavailable

64

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

65

CONTACT WASHER M8 VSV-K8

58411098000

Unavailable

68

LOCK WASHER 8MM

36003014000

Unavailable

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

71

HH COLLAR SCREW M 8X40 WS=10

0015080403

Unavailable

75

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

77

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

78

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

79

washer DIN 125 A -8.4

0125080003

Unavailable

80

COVER OIL FILTER '94

58303010000

Unavailable

81

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

83

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

84

Washer DIN9021-A 6.4

0021060003

Unavailable

85

clip nut M6

54603048100

Unavailable

86

STEEL WASHER 6,4X17X3

50232050001

Unavailable

87

PLUG DIN0910-M 10X1

0910100003

Unavailable

88

CU-SEAL RING 10 X 14 X 1,5

58038022900

Unavailable

90

ENGINE PROTECTOR ALU ADV.'97

58203090000

Unavailable

91

HH COLLAR SCREW M 6X13 WS=8

0014060133

Unavailable

92

58003012100

Unavailable

93

ENGINE PROTECTOR BRACKET '97

58003012200

Unavailable

94

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

95

RUBBER BUFFER

54308042000

Unavailable
