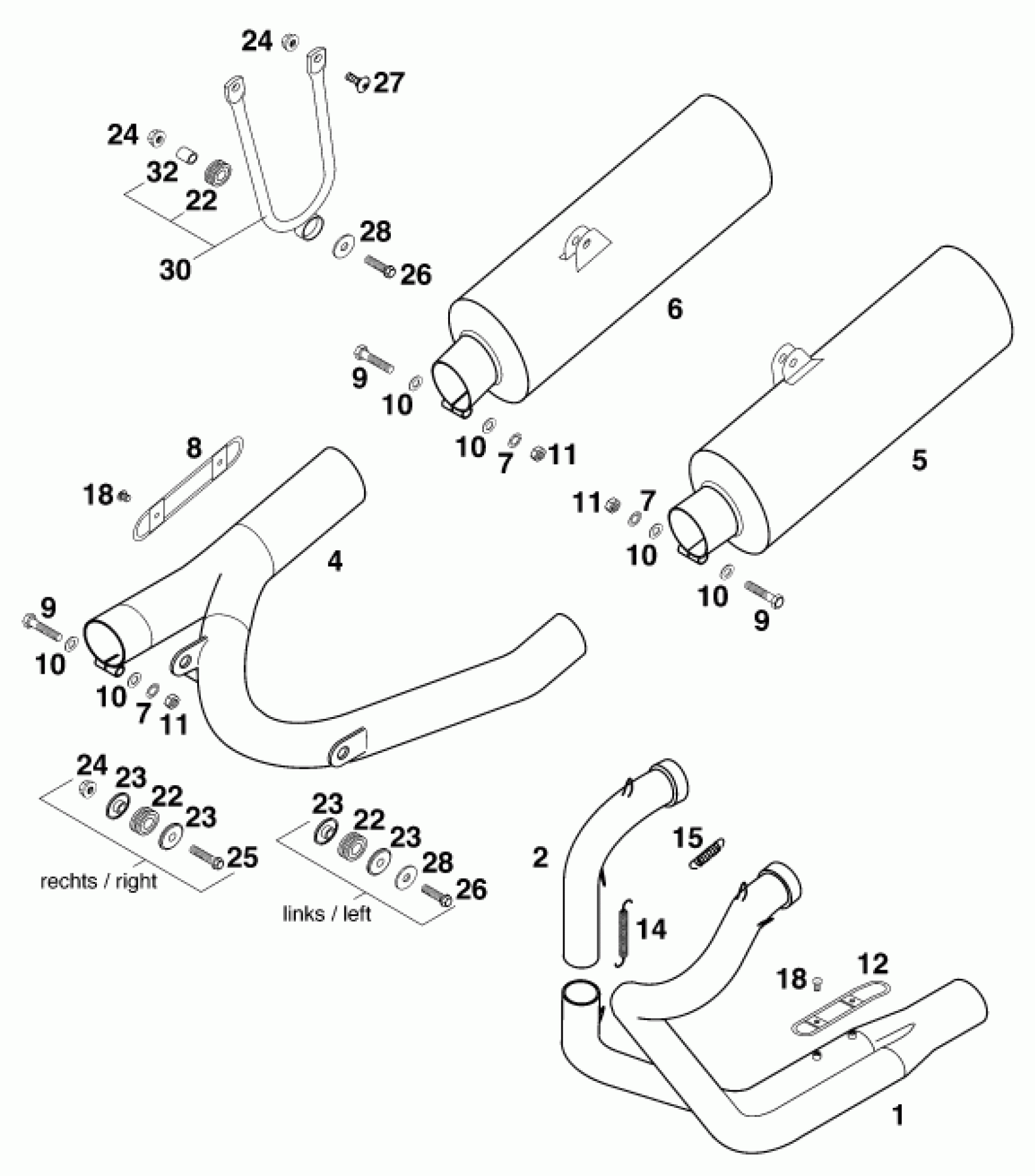

KTM 620 EGS-E ADVENTURE <1997> EXHAUST SYSTEM Diagram

#

Description
Price

0

BRACKET R/S SILENCER ADV.'97

58205089044

Unavailable

1

EXHAUST PIPE L/S ADVENTURE '97

58205007000

Unavailable

2

EXHAUST PIPE R/S ADVENTURE '97

58205008000

Unavailable

4

INTERMEDIATE TUBE ADVENTURE'97

58205060000

Unavailable

5

SILENCER L/S "KTM A1" ADV.'97

58205070000

Unavailable

6

SILENCER R/S "KTM A1" ADV.'97

58205071000

Unavailable

7

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

8

HEAT PROTECTOR CHROME WHITE'94

58305050100

Unavailable

9

HH SCREW DIN0933-M 8X40 INOX

0933080404

Unavailable

10

washer DIN 125 A -8.4

0125080003

Unavailable

11

SELF LOCKING NUT M 6 COPPER

51010086000

Unavailable

12

HEAT PROTECTOR FRONT DUKE '96

58405011000

Unavailable

14

TENSION SPRING L=55MM ADV.'97

58205016000

Unavailable

15

RETURN SPRING L=38 MM

54309036000

Unavailable

16

CERAMIC LINE 1 METER

58305053001

Unavailable

18

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

22

damp. component silicone grey

54305068100

Unavailable

23

BUSHING 8MM F. EXHAUST SUPPORT

54605069100

Unavailable

24

54310086000

Unavailable

25

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

26

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

27

AH OVAL H.SCREW DIN0170-M 8X20

0107080203

Unavailable

28

WASHER DIN9021-A 8,4

0021080003

Unavailable

30

BRACKET L/S SILENCER ADV.'97

58205088044

Unavailable

32

Spacer bushing 8.4X12X16

56505069000

Unavailable
