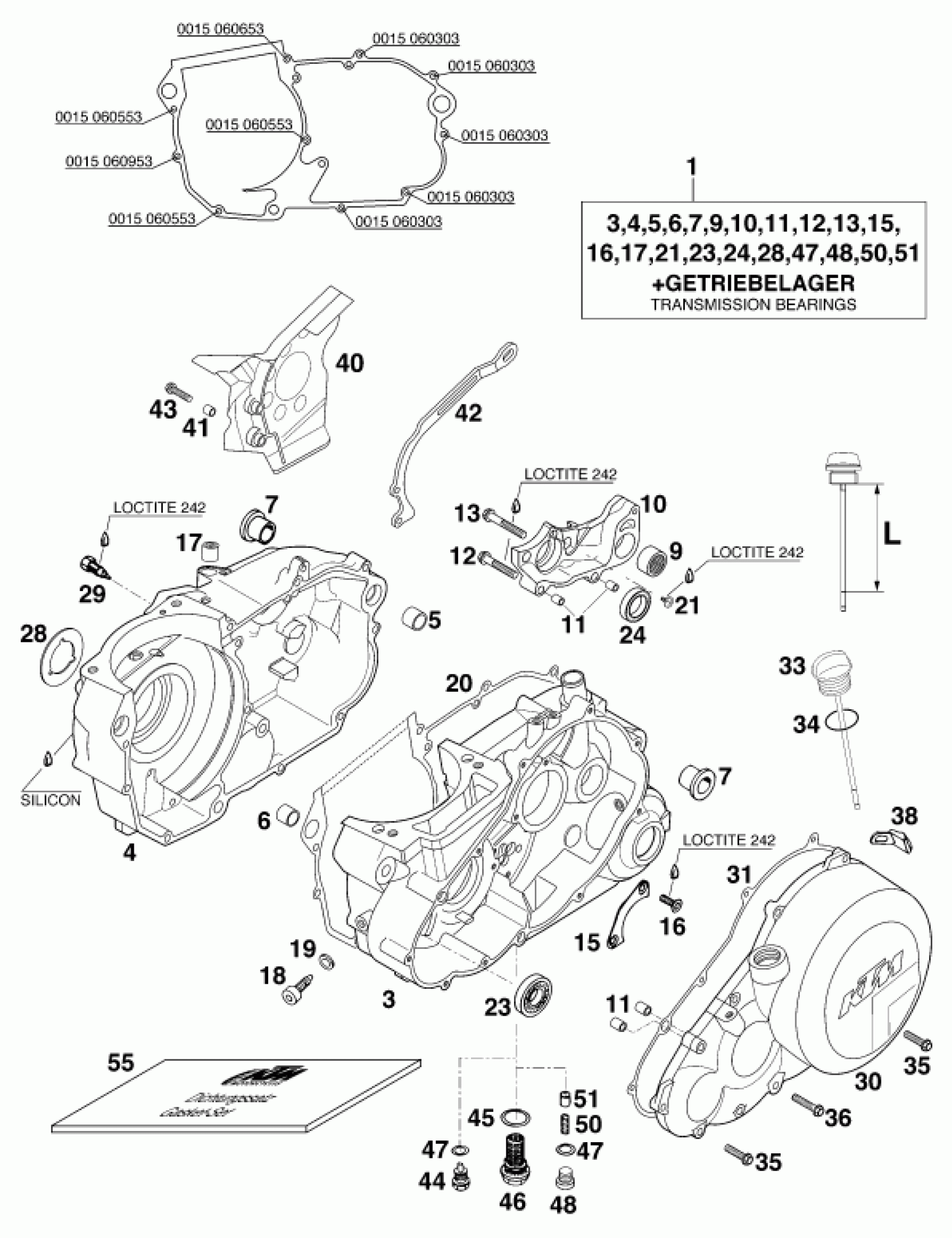

KTM 620 EGS-E ADVENTURE <1997> ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W.TRAN.BEAR'96

58430000044

Unavailable

1

ENGINE CASE CPL.W.TRAN.BEAR'97

5843000004429

Unavailable

5

DOWEL 19 X15,1X12

50130027000

Unavailable

6

DOWEL 17 X 13 X 12

51030026100

Unavailable

7

CRANK CASE BUSH

50130010000

Unavailable

9

NEEDLE BEARING HK 2216

58033097000

Unavailable

10

SHIFT MECHANISM SUPPORT LC4'94

58330011000

Unavailable

11

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

12

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

13

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

15

RETAINING PLATE

56530017000

Unavailable

16

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

17

NEEDLE BEARING HK 1212

50332095000

Unavailable

18

LOCATING SCREW M8 L=23

58030080000

Unavailable

19

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

20

ENGINE CASE GASKET LC4-E '96

58430039000

Unavailable

21

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

23

GROOVED BALL BEARING 16003 C3

0625160030

Unavailable

24

BALL BEARING 61805 C3

0625618050

Unavailable

28

STOP DISK 33 X 58 X 1,5

58440091000

Unavailable

29

CONTACT SCREW M10 '

58011081000

Unavailable

30

5833010100029

Unavailable

31

CLUTCH COVER GASKET '94

58330025000

Unavailable

33

OIL DIPSTICK CPL. L=93MM '96

58330020144

Unavailable

34

O-RING 16,00X3,00 NBR 70

0770160030

Unavailable

35

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

36

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

38

BUMP RUBBER

58333041000

Unavailable

40

* SPROCKET COVER BLACK '96

58430060000

Unavailable

41

BUSHING 6,5X8X11

54613038150

Unavailable

42

CHAIN DAMPERSHEET 17T LC4-E

58430047000

Unavailable

42

CHAIN DAMPERSHEET 15/16T LC4-E

58430047100

Unavailable

43

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

45

CU-SEAL RING DIN7603-22X27X2

58038017100

Unavailable

46

OIL DRAIN PLUG M22X1,5

58038019100

Unavailable

47

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

48

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

50

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

51

VALVE PISTON D=10MM

58038028000

Unavailable

55

GASKET SET LC4-E '

58430099000

Unavailable
