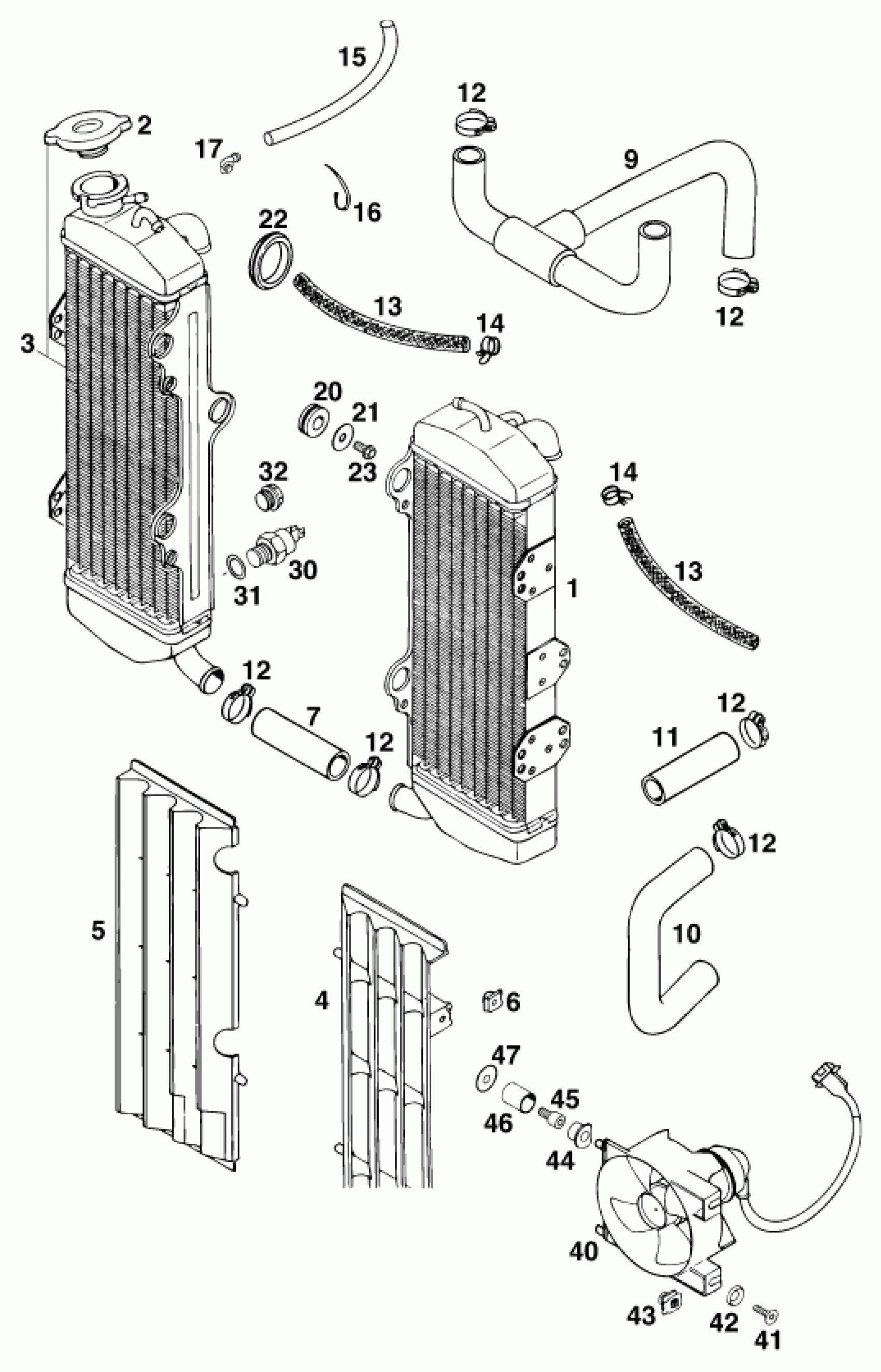

KTM 620 EGS-E ADVENTURE <1997> COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S (45246) LC4'94

58335008000

Unavailable

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

Unavailable

3

RADIATOR R/S (45247) LC4'94

58035007800

Unavailable

4

RADIATOR PROTECTOR L/S BLACK

58035034000

Unavailable

4

RADIATOR PROTECT. L/S WHITE'96

58035034100

Unavailable

5

RADIATOR PROTECTOR R/S BLACK

58035134000

Unavailable

5

RADIATOR PROTECT. R/S WHITE'96

58035134100

Unavailable

6

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

7

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

9

PREFORMED HOSE LC4'94

58335026000

Unavailable

10

PREFORMED HOSE 18X3,5-90 DG

50235025700

Unavailable

11

RADIATOR HOSE 20X26

58335024001

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

13

HOSE ID 7,5 PER METER

54435024001

Unavailable

14

HOSE CLAMP YDNAC 10119 11MM

50231005000

Unavailable

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

17

ANGLE PIECE '97

50303089000

Unavailable

20

RUBBER SLEEVE D=12MM

41001052000

Unavailable

21

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

Unavailable

22

SLEEVE FOR STEERING HEAD

54635022000

Unavailable

23

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

30

THERMOSWITCH 80-85 DG

58035045000

Unavailable

31

ALU SEALRING DIN7603-14X20X1,5

0603142015

Unavailable

32

PLUG DIN0908-M14X1,5

0908140153

Unavailable

40

FAN CPL. WITH CASE

58335041044

Unavailable

41

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

42

WASHER 6MM

40006006000

Unavailable

43

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

44

PLASTIC CAP

44106018000

Unavailable

45

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

46

FAN SUPPORT 13 X 16 X 20

58335043000

Unavailable

47

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

Unavailable
