ACCESSORIES

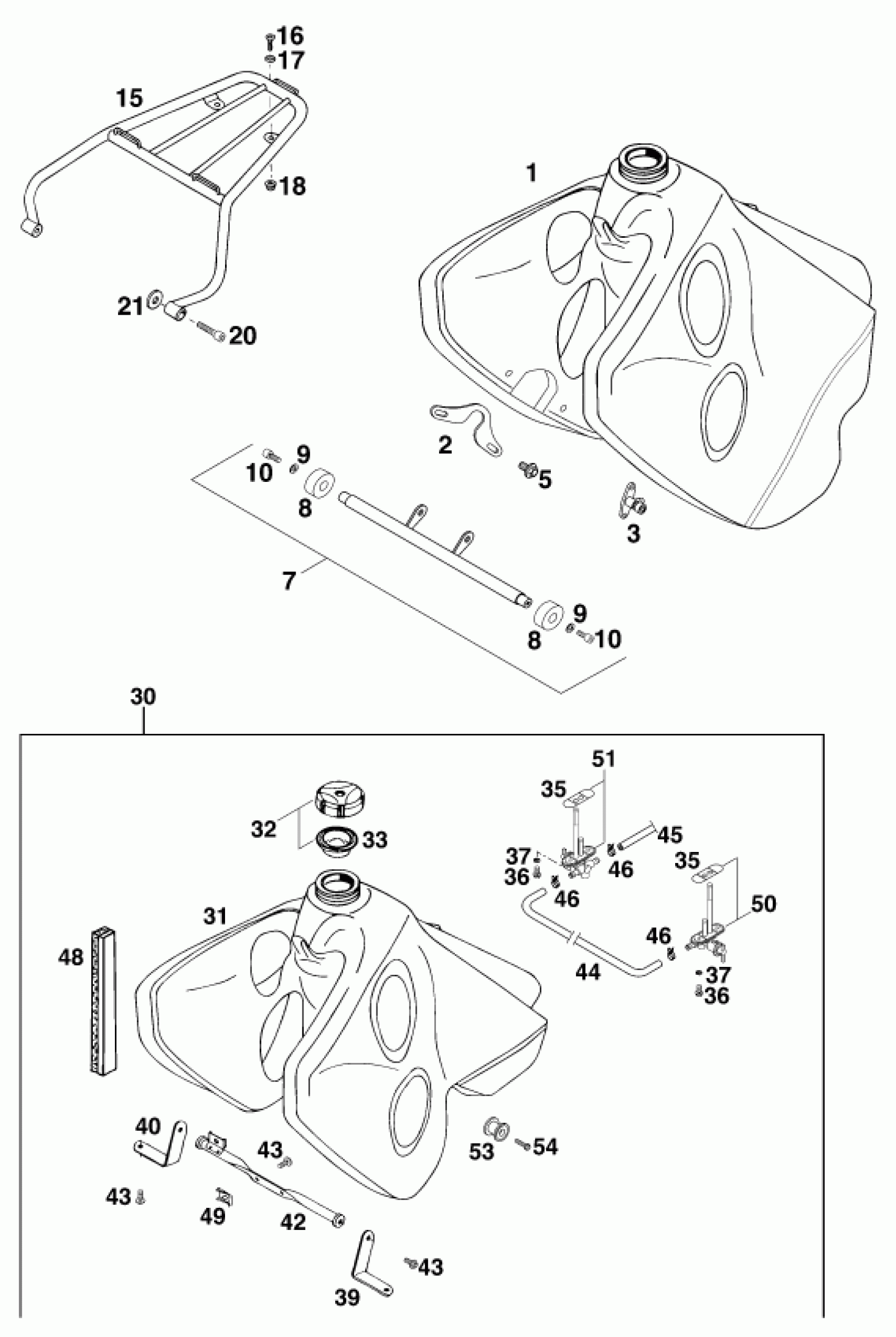

KTM 620 EGS-E 37KW 20LT ROT <1997> ACCESSORIES Diagram
#
1
GASTANK CPL. 30 LITER ORANGE
5850701300002
Unavailable
2
BRACKET FOR 30 LITER TANK
58507023000
Unavailable
3
FUEL COCK CPL. SM. RALLYE'96
58507003000
Unavailable
5
HH COLLAR SCREW M 6X10 WS=8
0014060103
Unavailable
7
BRACKET FOR 30 LI. GASTANK '97
58507021144
Unavailable
8
TANKROLL 13X36X16
50107015000
Unavailable
9
WASHER DIN0125-A 6,4
0125060003
Unavailable
10
AH SCREW DIN0912-M 6X16
0912060163
Unavailable
15
BAGGAGE CARRIER '93
58312011000
Unavailable
16
FLAT H.SCREW DIN7991-M6X20
0991060203
Unavailable
17
WASHER 6MM
40006006000
Unavailable
18
SELF LOCKING NUT M6
56509064000
Unavailable
20
AH SCREW DIN0912-M 6X30
0912060303
Unavailable
21
STEEL WASHER 6,4X17X3
50232050001
Unavailable
30
* FUEL TANK KIT 20 LITERLC4'97
5830711304402
Unavailable
31
5830711300002
Unavailable
32
TANK CAP CPL. LARGE
56007008144
Unavailable
33
GASKET FOR TANK CAP
56007009100
Unavailable
35
GASKET FUEL COCK MIKUNI
58307106100
Unavailable
36
HH COLLAR SCREW M 6X12 WS=8
0015060123
Unavailable
37
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
Unavailable
39
FUEL TANK BRACKET L/S
58307121050
Unavailable
40
FUEL TANK BRACKET R/S
58307121051
Unavailable
42
FUEL TANK LINK 20 LITER LC4
58307121000
Unavailable
43
HH COLLAR SCREW M 6X13 WS=8
0014060133
Unavailable
44
FUEL HOSE VITON 7X2MM
58007016001
Unavailable
45
FUEL HOSE VITON 7X2MM
58007016001
Unavailable
46
CLAMP YDNAC 10128 12MM
58031005000
Unavailable
48
FOAM RUBBER STRIP
58107011000
Unavailable
49
clip nut M6
54603048100
Unavailable
50
FUEL COCK MIKUNI CK-84 '96
58307005100
Unavailable
51
FUEL COCK MIKUNI CK-86 '96
58307105300
Unavailable
53
TANK BUSHING CPL. 12 X 34 X 25
58307113250
Unavailable
54
HH COLLAR SCREW M 6X25 WS=8
0015060253
Unavailable
