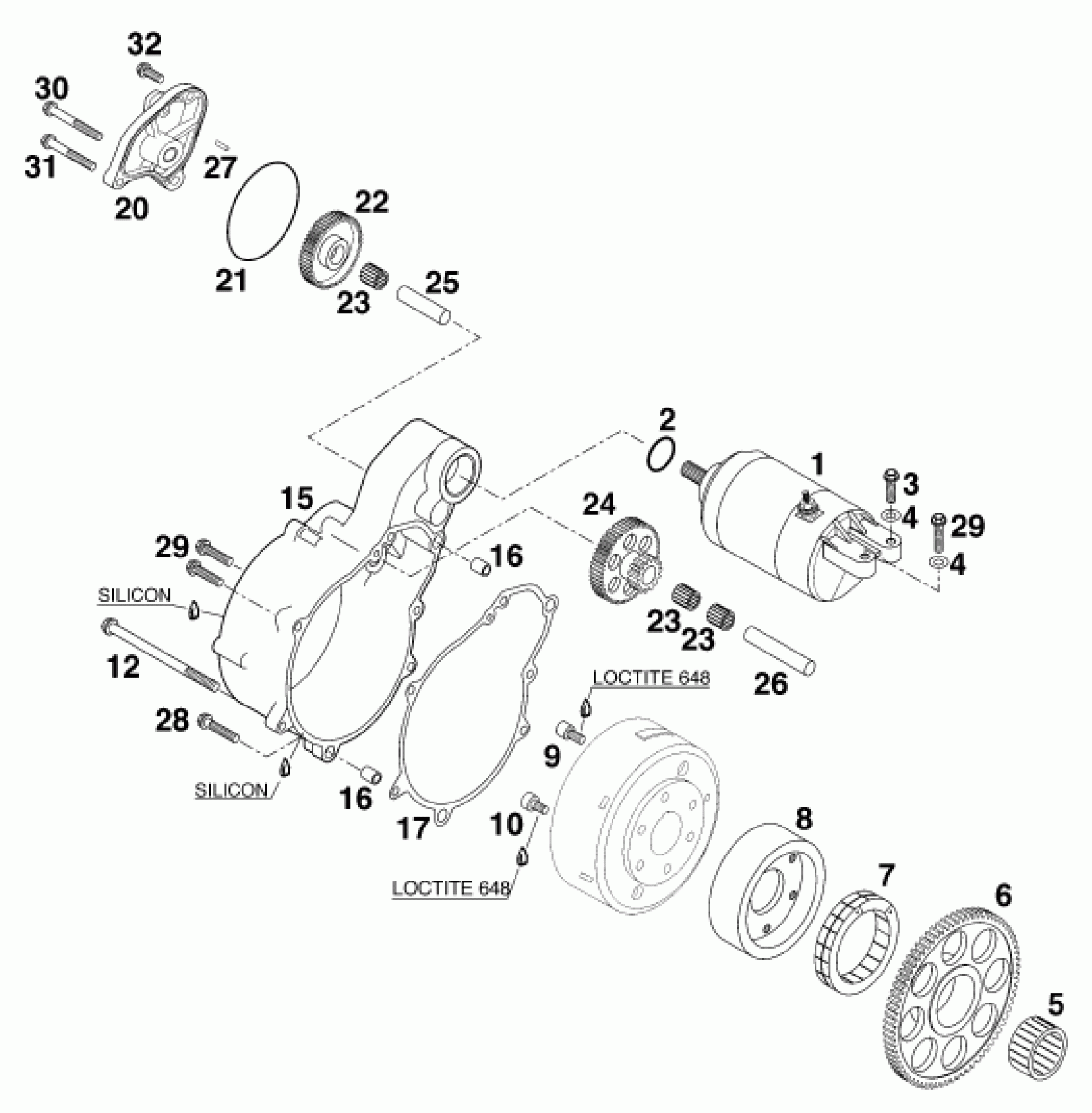

KTM 620 EGS-E 11LT ORANGE <1997> ELECTRIC STARTER Diagram

#

Description
Price

1

E-STARTER ENGINE CPL. LC4-E

58440001000

Unavailable

2

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

3

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

4

WASHER DIN0125-A 6,4

0125060003

Unavailable

5

NEEDLE BEARING K30 X 37 X 18 A

58440090100

Unavailable

6

FREE-WHEEL-GEAR 82-Z

58440020000

Unavailable

7

FREE-WHEEL FWD 332008 BLS

58440026000

Unavailable

8

FREEWHEEL HUB

58440025000

Unavailable

9

AH SCREW DIN0912-M 6X12 12.9

0912060121

Unavailable

10

AH CENTERING SCREW M6X12,5

58440098000

Unavailable

12

HH COLLAR SCREW M 6X95 WS=8

0015060953

Unavailable

15

STARTER FLANGE BLACK '97

58440010100

Unavailable

15

STARTER FLANGE GREY '97

5844001010029

Unavailable

16

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

17

STARTER FLANGE GASKET

58440042000

Unavailable

20

STARTER COVER BLACK '97

58440011100

Unavailable

20

STARTER COVER GREY '97

5844001110029

Unavailable

21

O-RING 72,00X2,00 NBR70

0770072020

Unavailable

22

INTERMEDIATE GEAR 52-T

58440022000

Unavailable

23

needle roller and cage K 10x13

58440090000

Unavailable

24

REDUCTION GEAR 55-T/15-T

58440021000

Unavailable

25

BEARING BOLT 10 X 38,4

58440028000

Unavailable

26

BEARING BOLT 10 X 54

58440029000

Unavailable

27

NEEDLEROLL. DIN5402 NRB 4X 7,8

0402040780

Unavailable

28

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

29

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

30

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

31

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

32

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable
