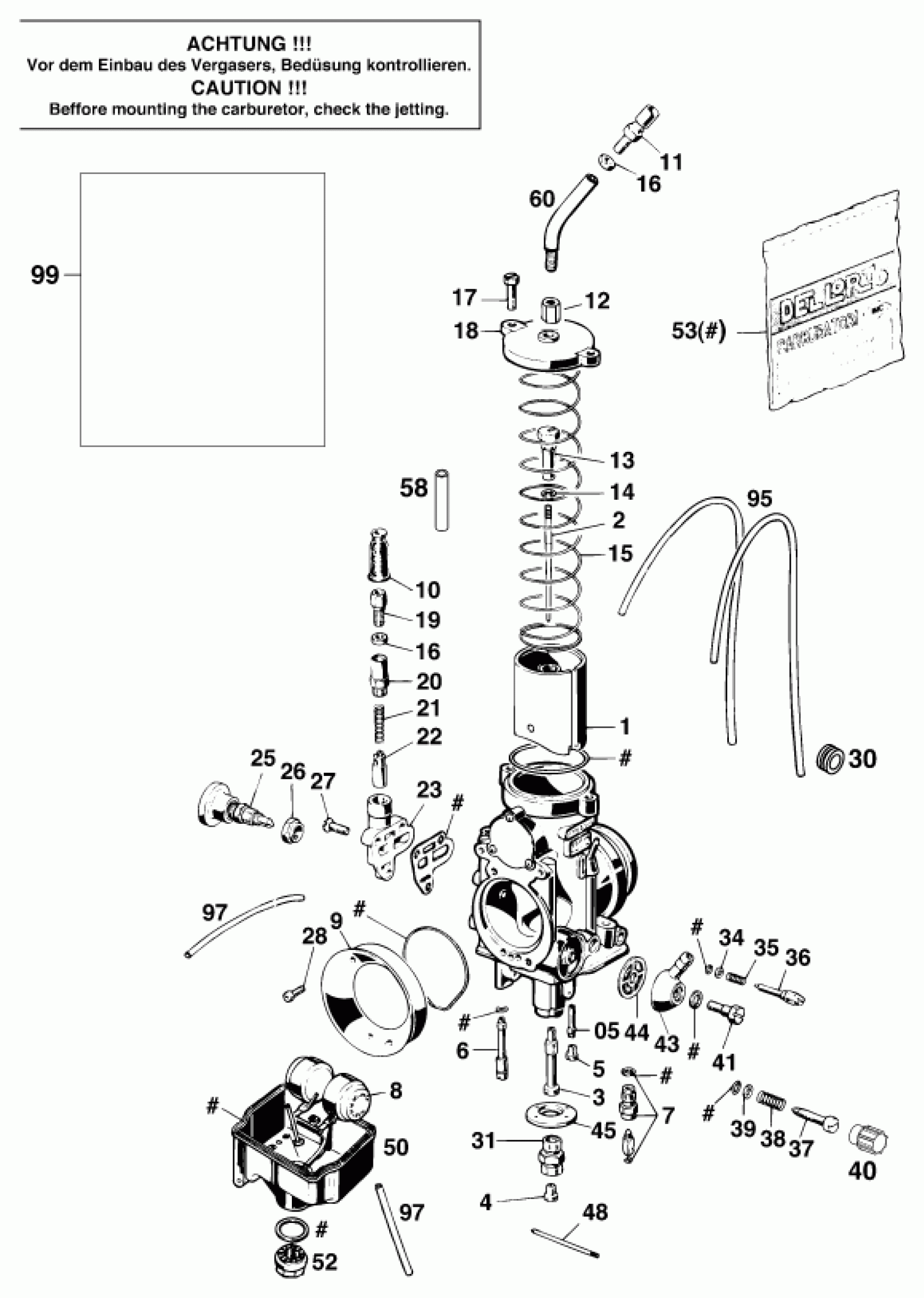

KTM 620 EGS-E 11LT ORANGE <1997> CARBURETOR Diagram

#

Description
Price

0

CARBURETOR PHM 40 SD (4934)

58031901044

Unavailable

1

THROTTLE VALVE N0.40

58031135040

Unavailable

1

* THROTTLE VALVE N0.50

58031135050

Unavailable

2

JET NEEDLE K51

49031134051

Unavailable

3

NEEDLE JET DR 266

58031121266

Unavailable

3

NEEDLE JET DR 268

58031121268

Unavailable

3

NEEDLE JET DR 270

58031121270

Unavailable

3

NEEDLE JET DR 272

58031121272

Unavailable

4

MAIN JET 135

57031523135

Unavailable

4

MAIN JET 140

57031523140

Unavailable

4

MAIN JET 145

57031523145

Unavailable

4

MAIN JET 150

57031523150

Unavailable

4

MAIN JET 155

57031523155

Unavailable

4

* MAIN JET 160

57031523160

Unavailable

4

MAIN JET 165

57031523165

Unavailable

4

MAIN JET 170

57031523170

Unavailable

4

MAIN JET 175

57031523175

Unavailable

4

MAIN JET 180

57031523180

Unavailable

4

MAIN JET 185

57031523185

Unavailable

4

MAIN JET 190

57031523190

Unavailable

4

MAIN JET 195

57031523195

Unavailable

4

MAIN JET 200

57031523200

Unavailable

5

JET 38

15131123038

Unavailable

5

JET 45

15131123045

Unavailable

5

JET 50

15131123050

Unavailable

5

JET 55

15131123055

Unavailable

5

IDLE MIXING TUBE NR.1 CD

49031122000

Unavailable

6

STARTING JET 45

57031551045

Unavailable

6

STARTING JET 50

57031551050

Unavailable

6

STARTING JET 55

57031551055

Unavailable

7

NEEDLE VALVE 300

57231120300

Unavailable

8

% FLOAT 8,5 GRAMME

57031509000

Unavailable

8

FLOAT

58331509000

Unavailable

9

INTAKE TRUMPET 40 620LC4/DUKE

58031140040

Unavailable

10

RUBBER SLEEVE

52031138000

Unavailable

11

ADJUSTMENT SCREW M6X0,75

57031525100

Unavailable

12

SUPPORT BUSHING M6x0,75 WS=10

58031528000

Unavailable

13

NIPPLE FOR THROTTLE VALVE

49031131000

Unavailable

14

TAB WASHER DIN6799-RS 2,5

0799025055

Unavailable

15

SLIDING SPRING 1,25X190

54431530000

Unavailable

16

HEXAGON NUT M 6X0,75 DIN0439

52031126000

Unavailable

17

HEXAGON NUT M 5X16

57031524000

Unavailable

18

CARBURETOR COVER PLATE

58031127000

Unavailable

19

ADJUSTMENT SCREW M6X0,75

57031525000

Unavailable

20

PLUG

57231155000

Unavailable

21

SPRING

58031153000

Unavailable

22

STARTING DEVICE

57031549000

Unavailable

23

START.DEVICE BODY 4S

57231150100

Unavailable

25

WARM START BUTTON

58031180000

Unavailable

26

HEXAGON NUT M 9X0,75

58031181000

Unavailable

27

OVAL HEAD SCREW DIN0964-M 4x14

0964040143

Unavailable

28

AH SCREW DIN0912-M 4X12

0912040123

Unavailable

30

RUBBER SLEEVE D=6MM OPEN

57511027000

Unavailable

31

MAIN JET HOLDER

57031522000

Unavailable

34

WASHER 3,3 X 5,8 X 0,5

57031572000

Unavailable

35

SPRING AIR ADJUST.SCREW

57031515000

Unavailable

36

MIXTURE REGULAT.SCREW M7X0,75

57031517000

Unavailable

37

ADJUSTMENT SCREW M5

57031519000

Unavailable

38

SPRING

52031116000

Unavailable

39

WASHER 5,1 X 8 X 0,8

57031573000

Unavailable

40

KNURLED CAP PLASTIC

57031519100

Unavailable

41

HH SCREW DIN0933-M 6X16

0933060163

Unavailable

43

HOSE CONNECTOR

57031513000

Unavailable

44

FUEL FILTER

15131112000

Unavailable

45

COVER

50131174000

Unavailable

48

STUD 2 X 47

57031508000

Unavailable

50

FLOAT CHAMBER WITH RUN OVER T.

57031511100

Unavailable

52

PLUG M12X1

57031514000

Unavailable

53

GASKET SET PHM38SD/PHM40SD

58031199000

Unavailable

58

SLIDE STOP L=28MM

58331029028

Unavailable

60

TUBE FOR CARBURETOR '

58031160000

Unavailable

95

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

97

PVC-HOSE 3X5MM

52031137001

Unavailable

99

CARBURETOR 38MM QWIK-SILVER II

58031701444

Unavailable
