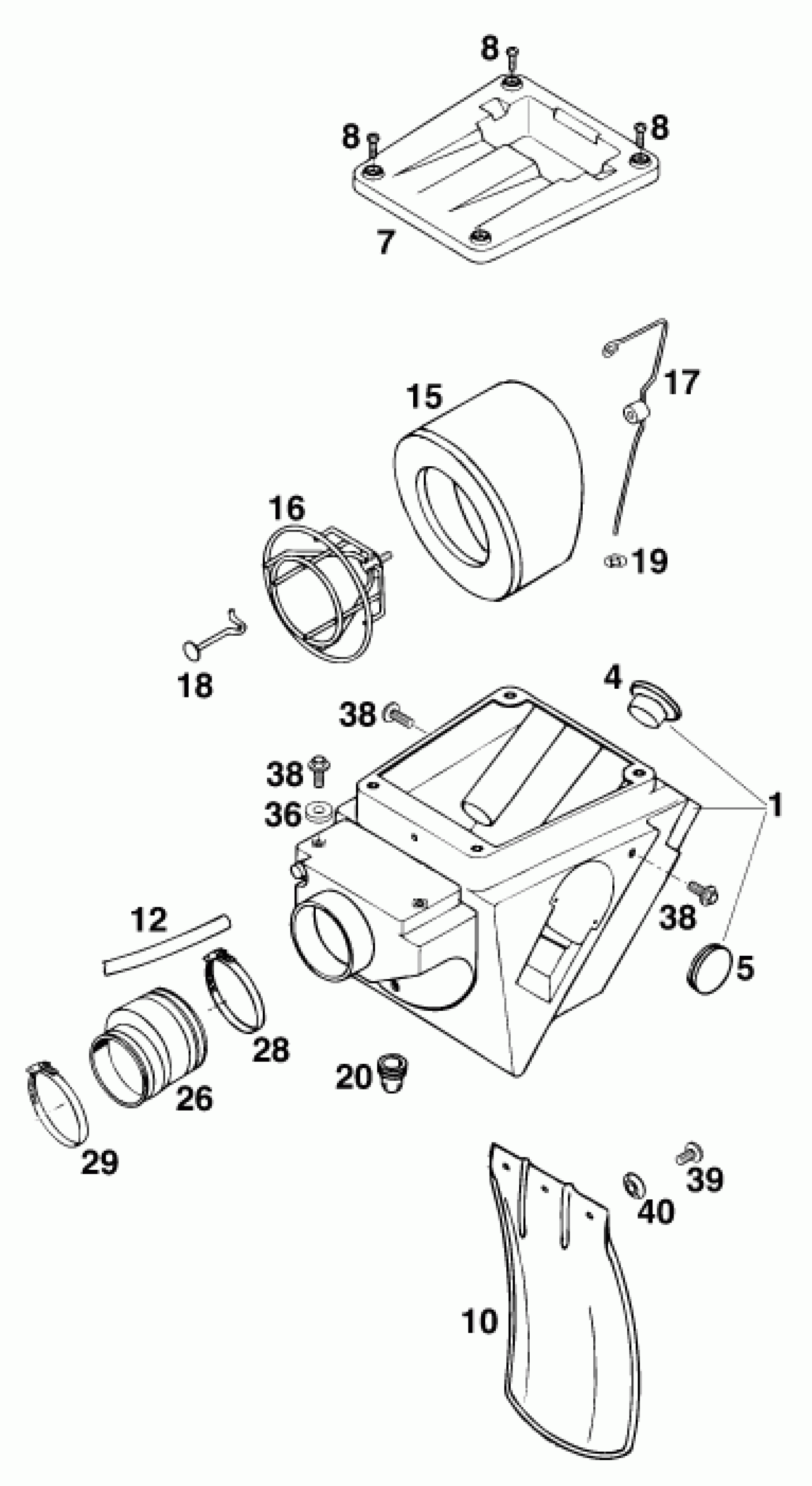

KTM 620 EGS 37KW 20LT ROT <1997> AIR FILTER Diagram

#

Description
Price

1

FILTER BOX CPL. WITHOUT SLS'94

58306001100

Unavailable

4

PLUG 30 MMM

58306004000

Unavailable

5

PLUG 37MM

54606004000

Unavailable

7

FILTER BOX COVER CLOSED

58306102000

Unavailable

8

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

10

SPLASH PROTECT.FOR FILTER BOX

54606010000

Unavailable

15

AIRFILTER

56506015100

Unavailable

16

FILTER CARRIER '97

58306016100

Unavailable

17

HOLDING HANGER FOR FILTER '97

58306017100

Unavailable

18

HOOK FOR FILTER BRACKET

58306017050

Unavailable

19

CLAMPING DISK KS4

54606019004

Unavailable

20

RUBBER GRIMMET SLOTTED

50206020000

Unavailable

26

CARBURETOR CONNECTION BOOT '98

58306026000

Unavailable

28

HOSE CLAMP 60-80MM

55006028000

Unavailable

29

HOSE CLAMP 50-70MM

51006027000

Unavailable

36

STEEL WASHER 6,4X17X3

50232050001

Unavailable

38

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

39

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

40

BUCKET

72210079000

Unavailable
