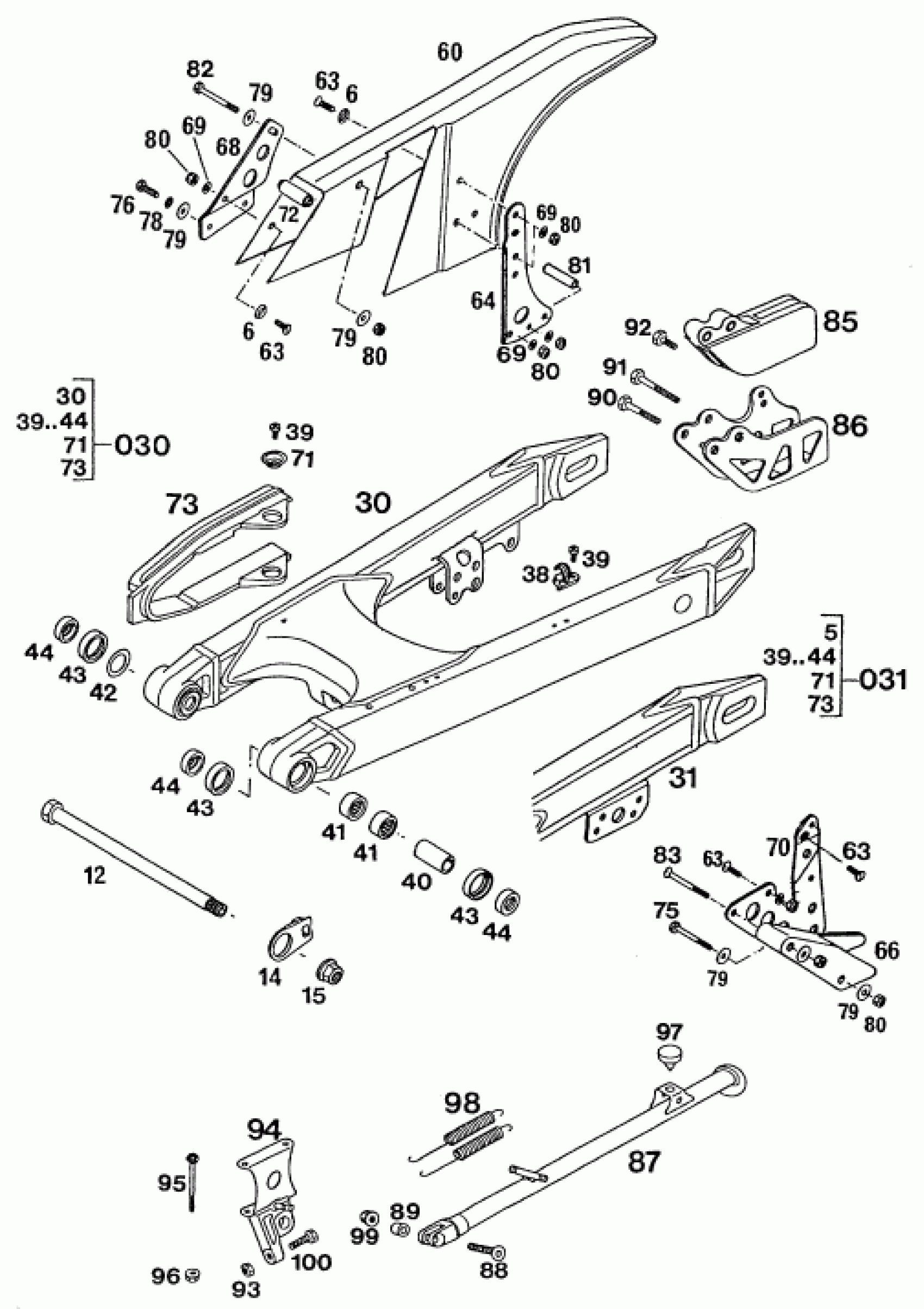

KTM 620 E-XC 20KW/20lt '94 <1994> SWING ARM Diagram

#

Description
Price

6

WASHER 6MM

40006006000

Unavailable

12

54603014000

Unavailable

14

BRAKE HOSE GUIDE '89

50230211000

Unavailable

15

Self locking nut M14x1.5 WS19

54603015000

Unavailable

30

% SWINGARM LOOSE 570MM "4" '94

58303030100

Unavailable

30

SWINGARM CPL. 570MM ''4'' '94

58303030144

Unavailable

31

* SWINGARM LOOSE 570MM 4STR. '

58303030000

Unavailable

31

* SWINGARM CPL. 570MM '93

58303030044

Unavailable

38

RETAINING CLAMP FOR BRAKE HOSE

54611076000

Unavailable

39

SPECIAL SCREW M 5,0X10

0010050103

Unavailable

40

BUSHING SLEEVE 15X20X38,75

50203081700

Unavailable

41

NEEDLE BUSH HK 2012

50203097000

Unavailable

42

STOP DISK 22,2X31,7X1

54603036000

Unavailable

43

radial shaft seal 25x32x7

0760253270

Unavailable

44

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

Unavailable

60

CHAIN GUARD '87

50207060000

Unavailable

63

FLAT HD SCREW DIN963 M6x16

0963060163

Unavailable

64

RETAINING PLATE FOR CHAINGUARD

54407064000

Unavailable

66

REAR CHAIN GUIDE BLACK '93

56507066000

Unavailable

68

RETAINING PLATE

50207068000

Unavailable

69

WASHER DIN0125-A 6,4

0125060003

Unavailable

70

*CHAIN GUIDE BRACKET MX4STR'93

58007070500

Unavailable

71

BUCKET

72210079000

Unavailable

72

SPACER 39MM

50107072000

Unavailable

73

* CHAIN SLIDING GUARD '92

50207073000

Unavailable

75

HH SCREW DIN931 M6x50

0931060503

Unavailable

76

HH SCREW DIN0933-M 6X20

0933060203

Unavailable

78

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

79

Washer DIN9021-A 6.4

0021060003

Unavailable

80

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

81

* SPACER TUBE 35 MM

54307072000

Unavailable

82

HH SCREW DIN931 M6x55

0931060553

Unavailable

83

* FLAT HEAD SCREW DIN963 M6x55

0963060553

Unavailable

85

CHAIN GUIDE REAR '94

54607066100

Unavailable

86

RETAINING PLATE CHAIN GUIDE'

50207070000

Unavailable

87

SIDE STAND L=409MM '93

5450302310019

Unavailable

88

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

Unavailable

89

BUSHING 8,2 X 12 X 10

57103225000

Unavailable

90

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

91

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

91

HH SCREW DIN931 M6x55

0931060553

Unavailable

92

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

92

HH SCREW DIN0933-M 6X16

0933060163

Unavailable

93

Hexagon nut DIN934 M8

0934080003

Unavailable

94

* LEVER HOLDER SIDE STAND '93

5020302610019

Unavailable

95

FLAT HEAD SCREW DIN7991 M6x75

0991060753

Unavailable

96

SELF LOCKING NUT M6

56509064000

Unavailable

97

RUBBER BUFFER

51007069100

Unavailable

98

SIDESTAND SPRING LONG

51003021000

Unavailable

99

54310086000

Unavailable

100

HH SCREW DIN0933-M 8X25

0933080253

Unavailable
