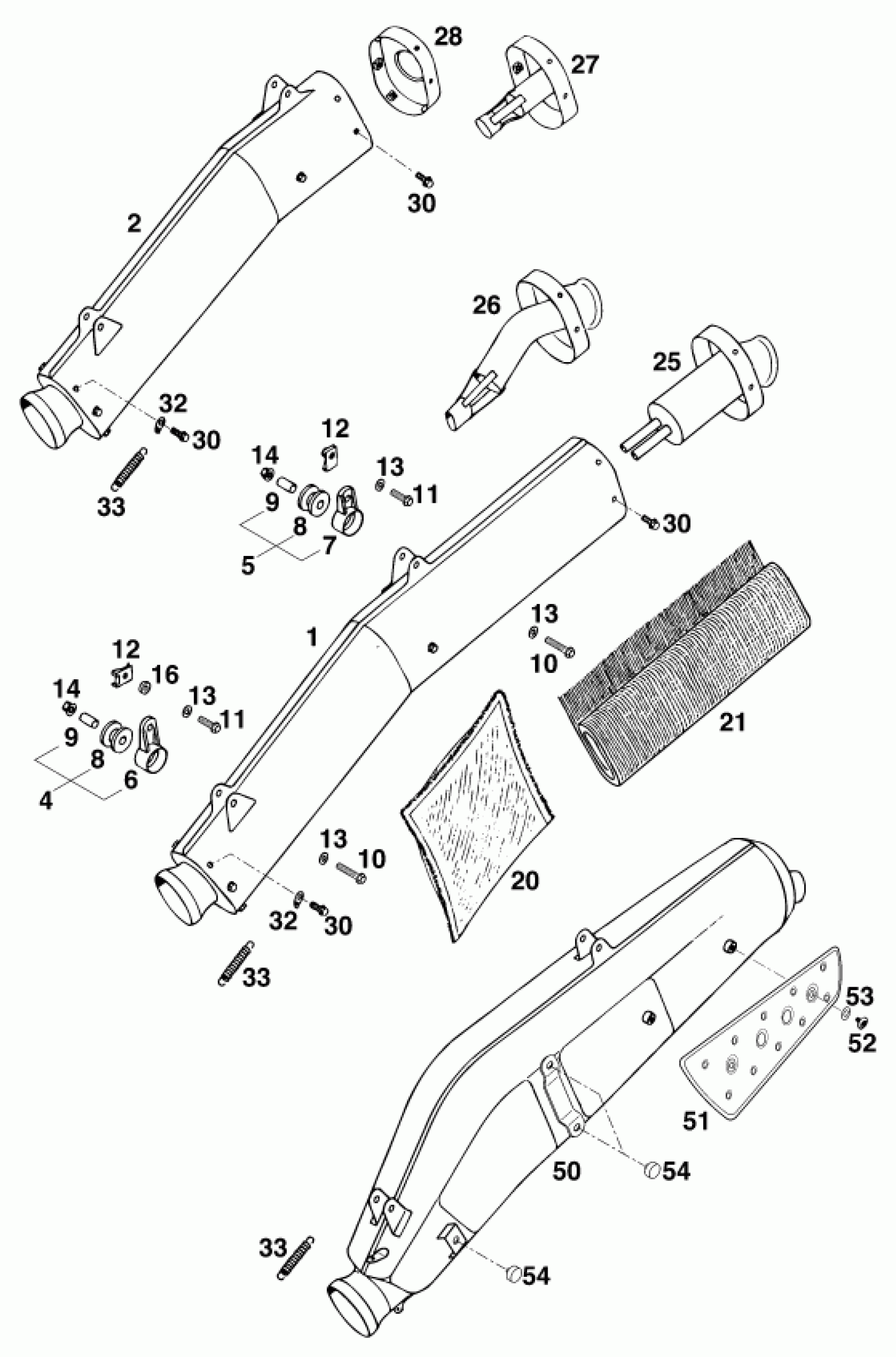

KTM 620 E-XC 20KW/20lt '94 <1994> MAIN SILENCER Diagram

#

Description
Price

0

* STUFFING YARN LOOSE PER

58005079055

Unavailable

1

SILENCER "KTM HXC" '93

58305079000

Unavailable

1

SILENCER "KTM HXC" '93

58305179000

Unavailable

2

* SILENCER "KTM MX" USA'94

58305079100

Unavailable

2

% SILENCER "KTM MX" EUROPE '

58305079200

Unavailable

4

SIL. BRACKET CPL. LONG SILICON

54305065244

Unavailable

5

SIL. BRACKET CPL.SHORT SILICON

54305065344

Unavailable

6

BRACKET FOR SILENCER LONG

54305065000

Unavailable

7

% BRACKET FOR SILENCER SHORT

54305065100

Unavailable

8

damp. component silicone grey

54305068100

Unavailable

9

BUSHING 7X12X15,4

54305069000

Unavailable

10

HH SCREW DIN931 M6x30

0931060303

Unavailable

11

HH SCREW DIN0933-M 6X20

0933060203

Unavailable

12

clip nut M6

54603048100

Unavailable

13

WASHER DIN0125-A 6,4

0125060003

Unavailable

14

SELF LOCKING NUT M6

56509064000

Unavailable

15

Washer DIN9021-A 6.4

0021060003

Unavailable

16

STEEL WASHER 6,4X17X3

50232050001

Unavailable

20

STUFFING YARN LOOSE 300 GRAMM

58005079056

Unavailable

21

STUFFING YARN 190 GRAMM

58005078108

Unavailable

25

SILENCER CAP D=2x9 PAINTED'93

58305179080

Unavailable

26

SILENCER CAP D=29MM CHROME

58305079080

Unavailable

27

SILENCER CAP SX D=30 EUROPE'94

58305079280

Unavailable

28

SILENCER CAP D=30MM USA '94

58005079557

Unavailable

30

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

32

RETAINING PLATE

51005074000

Unavailable

33

TENSION SPRING L=55MM

51005063000

Unavailable

50

* SILENCER "UGS" 400 RXC

57605080000

Unavailable

50

SILENCER EGS "HGS1" '94

58305080100

Unavailable

50

SILENCER "UGS" 620 RXC

58305080200

Unavailable

51

HEAT PROTECTOR BLACK LC4'93

58305050000

Unavailable

52

AH BOLT ISO7380-M 6X8

0902060080

Unavailable
