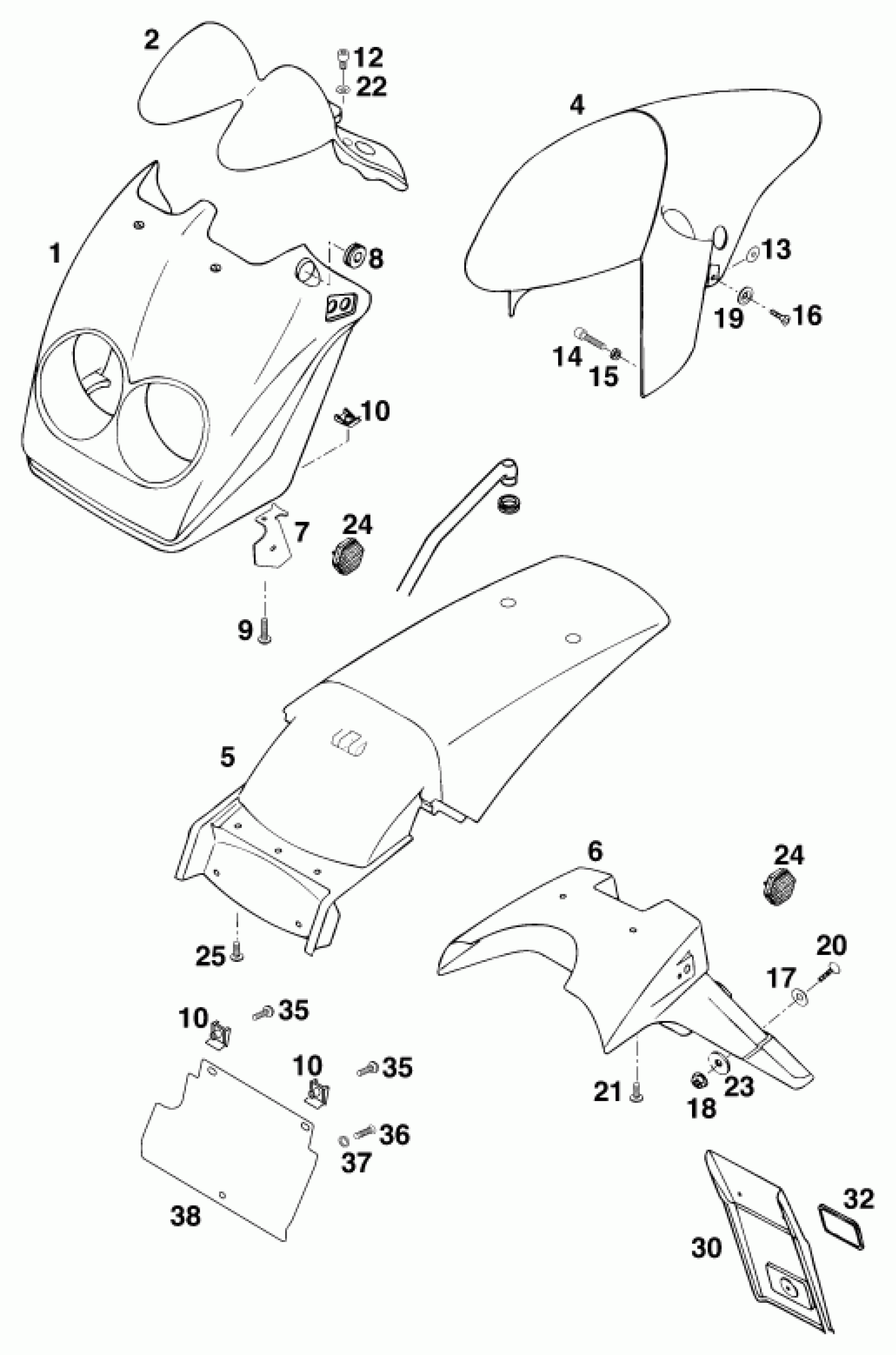

KTM 620 DUKE-E <1997> MASK, FENDERS Diagram

#

Description

Price

0

BRACKET REFLECTOR R/S '95

58312181000

Unavailable

1

* HEADLIGHT MASK 620 DUKE '97

5831100100008

Unavailable

2

% INSTRUMENTS COVER DUKE '96

58311050100

Unavailable

4

* FRONT WHEEL FENDER DUKE '97

5830801000008

Unavailable

5

REAR FENDER DUKE '97

5830801310008

Unavailable

6

NUMBER PLATE CARRIER EGS '93

58308013051

Unavailable

7

BRACKET REFLECTOR L/S '95

58312081000

Unavailable

8

rubber grommet D=8mm open

31008060000

Unavailable

9

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

10

clip nut M6

54603048100

Unavailable

12

AH SCREW DIN0912-M 6X10

0912060103

Unavailable

13

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

Unavailable

14

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

15

WASHER 6 X 12 X 3

12011016000

Unavailable

16

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

17

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

Unavailable

18

SELF LOCKING NUT M6

56509064000

Unavailable

19

WASHER 12,5x20

58308046000

Unavailable

20

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

21

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

22

WASHER DIN0125-A 6,4

0125060003

Unavailable

23

RUBBER WASHER 5X16X3

51005082100

Unavailable

24

REFLECTOR YELLOW CPL.

16512080000

Unavailable

25

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

30

EXTENSION FOR NUMBER PLATE

49008216000

Unavailable

32

51012080000

Unavailable

35

HH COLLAR SCREW M 6X13 WS=8

0014060133

Unavailable

36

SPECIAL SCREW Z 5,5X16

0016055163

Unavailable

37

WASHER 6MM

40006006000

Unavailable

38

FENDER EXTENSION LC4-E '97

58308013250

Unavailable
