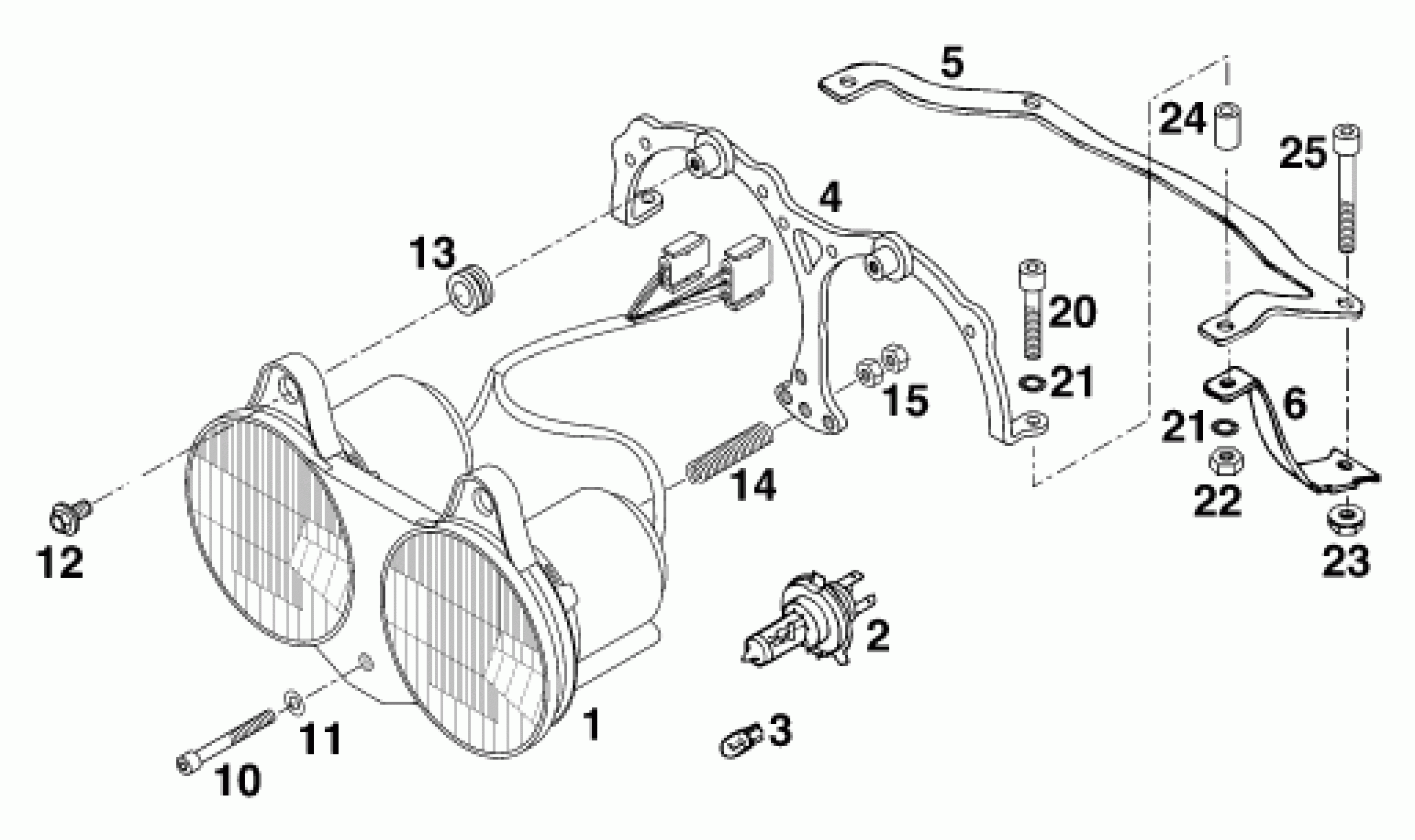

KTM 620 DUKE 37KW <1996> LIGHTING SYSTEM Diagram

#

Description

Price

0

HEADLIGHT SUPPORT R/S BOTTOM

58311147001

Unavailable

1

HEAD LIGHT TRIOM CPL. '96

58414001000

Unavailable

2

BULB HS1 12V 35/35W WHITE

54611038012

Unavailable

3

BULB 12V 5W (W2,1X9,5D)

49011435000

Unavailable

4

HEADLIGHT CARRIER TRIOM '96

58311045100

Unavailable

5

HEADLIGHT SUPPORT TOP

58311047000

Unavailable

6

HEADLIGHT SUPPORT L/S BOTTOM

58311147000

Unavailable

10

* AH SCREW DIN0912-M 5X45

0912050453

Unavailable

11

WASHER DIN0125-A 5,3

0125050003

Unavailable

12

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

13

RUBBER GROMMET 11 X 19 X 9 '96

58414019000

Unavailable

14

SPRING 9 X 11 X 39 FOR TRIOM

58414020000

Unavailable

15

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

20

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

21

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

22

Hex. nut DIN 934 M6

0934060003

Unavailable

23

SELF LOCKING NUT M6

56509064000

Unavailable

24

BUSHING 7X12X15,4

54305069000

Unavailable

25

AH SCREW DIN0912-M 6X50

0912060503

Unavailable
