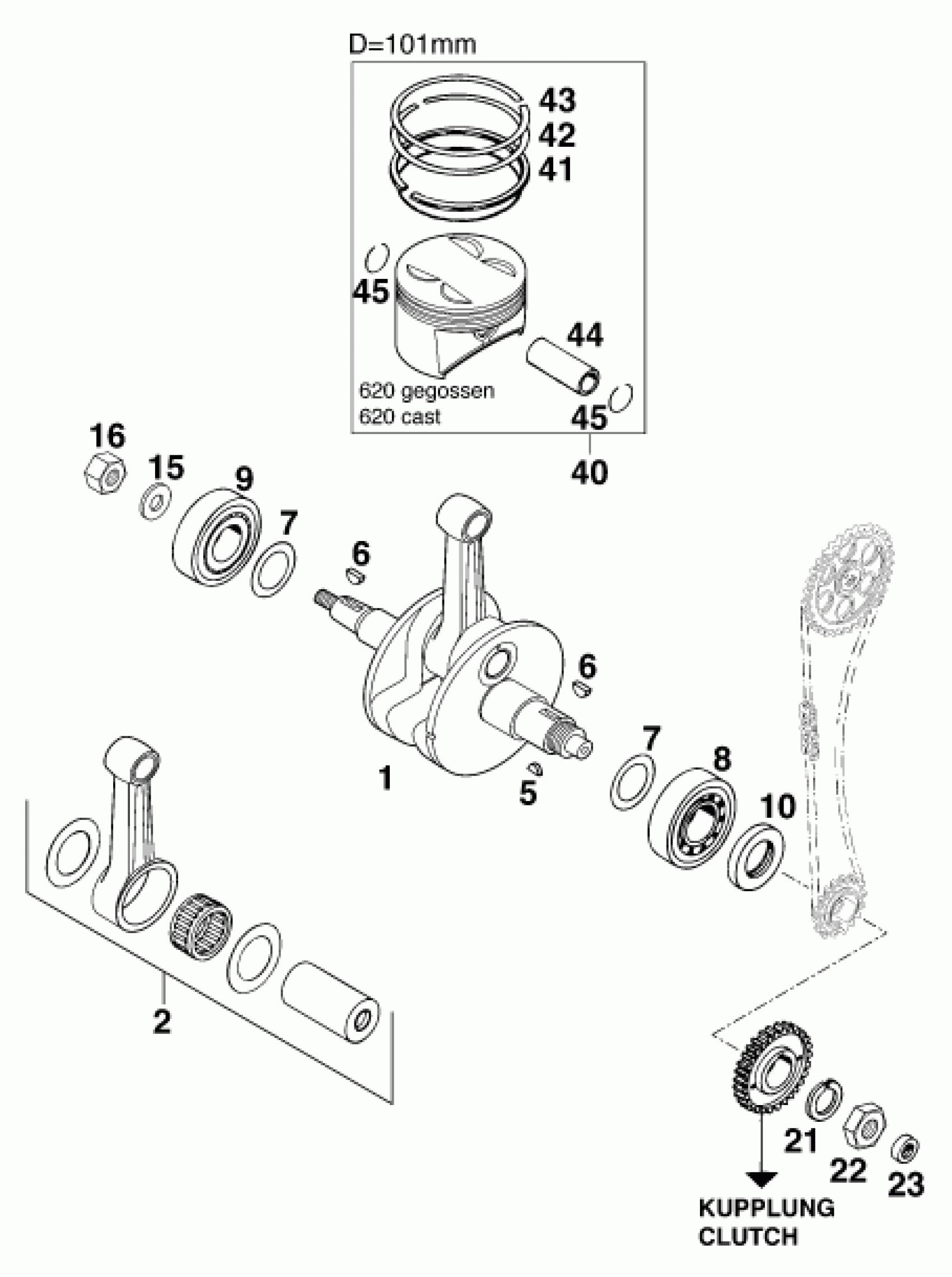

KTM 620 DUKE 37KW <1996> CRANKSHAFT, PISTON Diagram

#

Description

Price

1

* CRANKSHAFT CPL. STR 76MM'96

58430018000

Unavailable

2

CONNECTING ROD REPAIR SET LC

58330015044

Unavailable

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

6

WOODRUFF KEY 5X6,5 HARDED

6946005

Unavailable

7

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

7

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

7

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

8

CYL.ROLLER BEARING NJ 306 C3

58030082000

Unavailable

9

CYL.ROLLER BEAR. NJ 207 ECP C3

56530123000

Unavailable

10

SHAFT SEAL RING 30x47x7 BTSL

0760304770

Unavailable

15

STEEL WASHER 16 X 30 X 3

58330095000

Unavailable

16

HEX NUT M16x1,25 L/S

58430028000

Unavailable

21

LOCKING RING VSK 20

58030019000

Unavailable

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

Unavailable

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

Unavailable

40

* PISTON 101 MM CPL. CAST '

58330007300

Unavailable

41

OIL SCRAPER RING 101x2,5

58330031300

Unavailable

42

TAPERED PISTON RING 101x1,25

58330932000

Unavailable

43

RECTANGULAR RING 101x1,25

58330832000

Unavailable

44

PISTON PIN 22 X 13 X 60

58330833000

Unavailable

45

CIRCLIP C 22 X 1,5

58030074100

Unavailable
