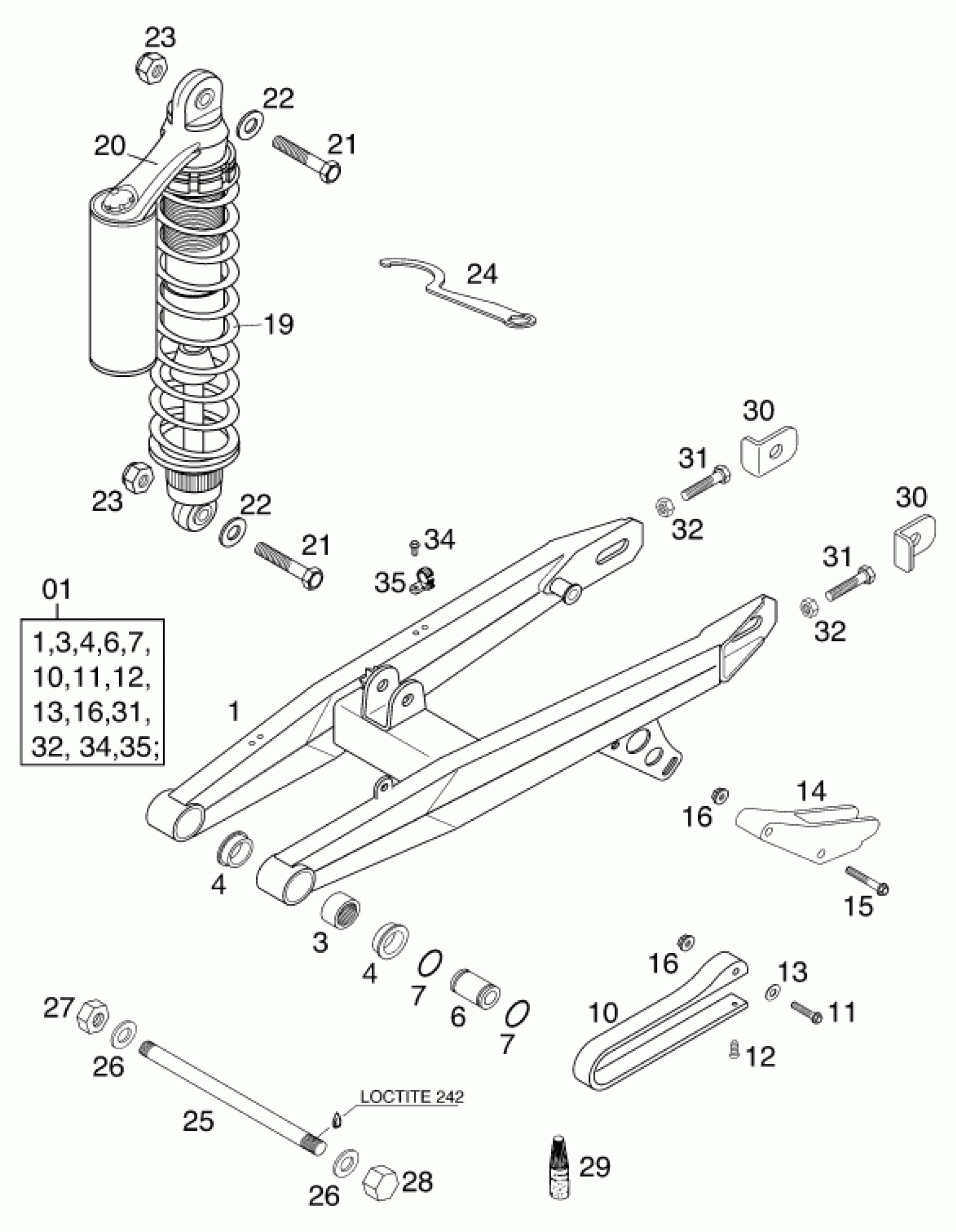

KTM 60 SX 2000 SWING ARM Diagram

#

Description
Price

1

% SWINGARM CPL. 60/65 SX 20

46004030244

Unavailable

3

Needle bushing HK 2016 / 20x26

54603097000

Unavailable

4

Spacer bushing 20X26X30X9.7

46004030070

Unavailable

6

Bearing bush 12x20x36.5

46004030071

Unavailable

7

O-ring 16x2 Viton 75

0770160021

Unavailable

10

CHAIN GUIDE FRONT 60/65 SX '99

46004066000

Unavailable

11

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

12

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

Unavailable

13

* WASHER 6,4X14X0,8

53002046000

Unavailable

14

CHAIN GUIDE REAR 60/65 '98

46007066000

Unavailable

15

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

16

Self locking nut M6 - 10

56509064100

Unavailable

19

SPRING WP 40-220

93010049

Unavailable

19

SPRING WP 45-220

93010050

Unavailable

19

SPRING WP 35-220

93010116

Unavailable

20

MONOSHOCK WP 65SX 2000

0318U706

Unavailable

21

HH SCREW DIN0931-M10X45

0931100453

Unavailable

22

washer DIN 125 A 10.5

0125100003

Unavailable

23

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

24

HOOK WRENCH FOR SHOCK ABSORBER

46012024000

Unavailable

25

SWINGARM BOLT 201MM M12X1

46004037000

Unavailable

26

FLAT WASHER DIN0125-A13

0125120003

Unavailable

27

Nut M12x1 h10 WAF19 DIN 934

0934120103

Unavailable

28

NUT DIN917-M12X1

0917120103

Unavailable

29

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

30

CHAIN ADJUSTER 60/65 '98

46010083000

Unavailable

31

HH SCREW DIN0933-M 6X30

0933060303

Unavailable

32

Hex. nut DIN 934 M6

0934060003

Unavailable

34

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

35

RETAINING CLAMP FOR BRAKE HOSE

54611076000

Unavailable
