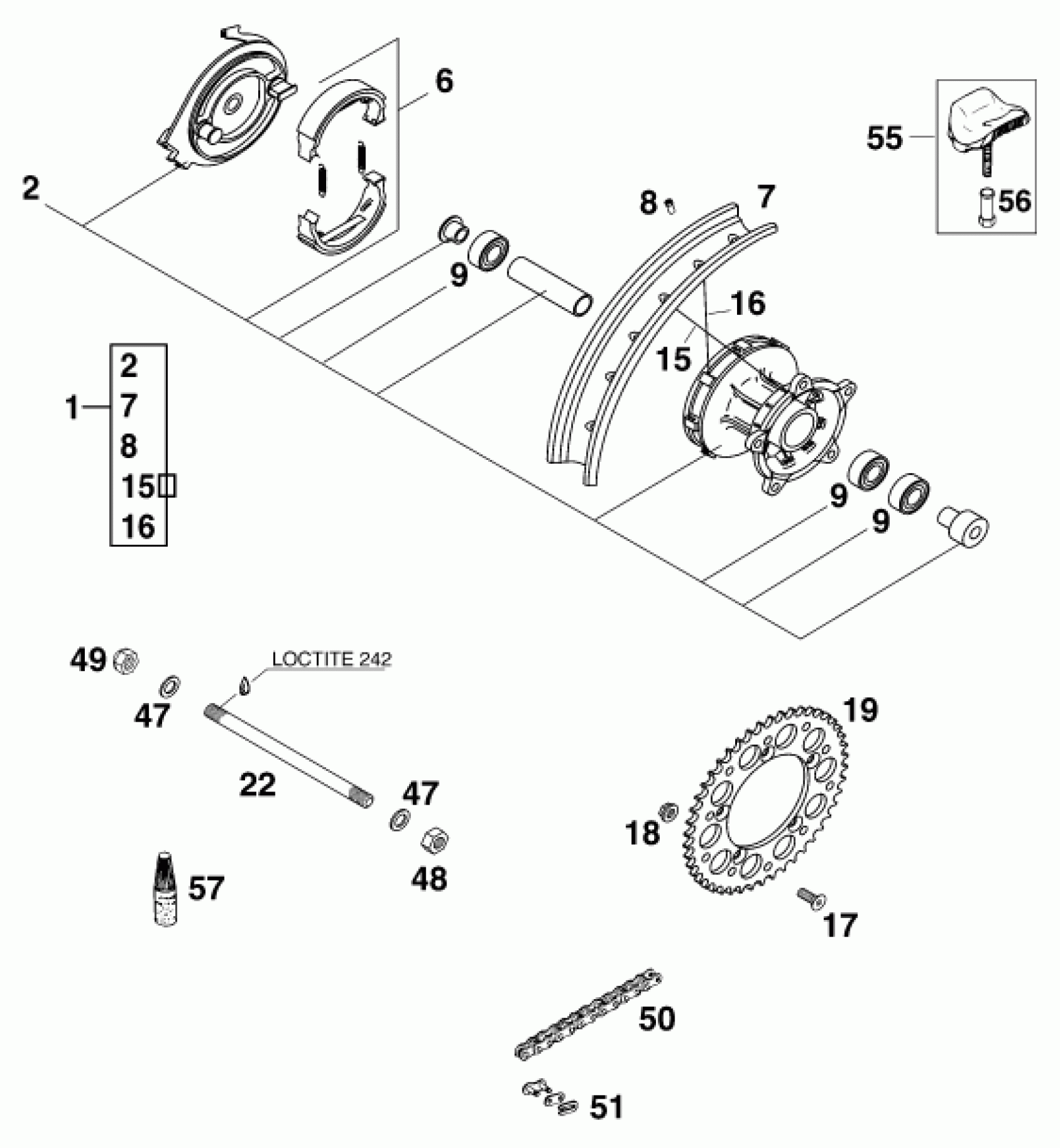

KTM 60 SX <1999> REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 1,60X12" '98

46010001044

Unavailable

2

REAR WHEEL HUB CPL. SILVER '98

46010010044

Unavailable

6

BRAKE SHOES GARN. REAR

49010035000

Unavailable

7

RIM REAR 1,6X12'' ALU

46010070000

Unavailable

8

SPOKE NIPPLE M3,5

46009072000

Unavailable

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

15

SPOKE M3,5X128-20G 12'' L/S

46010071000

Unavailable

16

SPOKE M3,5X139-27G 12'' R/S

46010171000

Unavailable

17

FLAT HEAD SCREW DIN7991-M 8X25

0991080253

Unavailable

18

54310086000

Unavailable

19

REAR SPROCKET 44-T

46010051044

Unavailable

19

REAR SPROCKET 46-T

46010051046

Unavailable

22

AXLE 207MM M12X1

46010085000

Unavailable

47

FLAT WASHER DIN0125-A13

0125120003

Unavailable

48

Nut M12x1 h10 WAF19 DIN 934

0934120103

Unavailable

49

NUT DIN917-M12X1

0917120103

Unavailable

50

CHAIN 1/2X1/4'' 108 ROLLEN

46010065108

Unavailable

51

CHAIN LOCK 1/2X1/4''

46010066000

Unavailable

55

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

56

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

57

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
