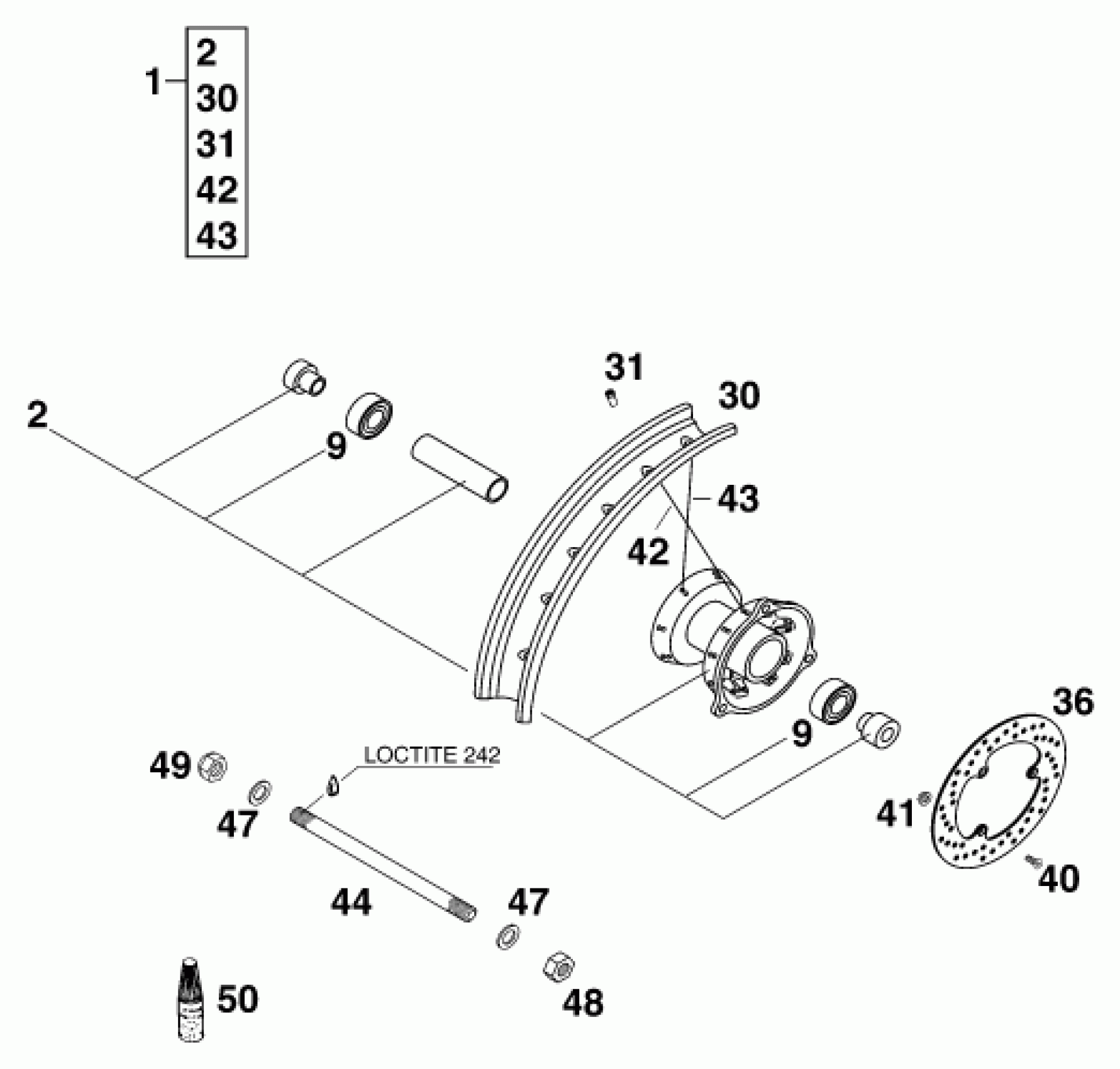

KTM 60 SX <1999> FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. 1,6X14'' '9

46009001044

Unavailable

2

FRT WHEEL HUB CPL. SILVER'98

46009010000

Unavailable

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

30

RIM FRONT 1,6X14'' ALU

46009070000

Unavailable

31

SPOKE NIPPLE M3,5

46009072000

Unavailable

36

BRAKE DISK FRONT 198MM '98

46009060000

Unavailable

40

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

41

SELF LOCKING NUT M6

56509064000

Unavailable

42

SPOKE M3,5X145MM

46009071000

Unavailable

43

SPOKE M3,5X149MM

46009171000

Unavailable

44

AXLE FRONT 194MM M12X1

46009081000

Unavailable

47

FLAT WASHER DIN0125-A13

0125120003

Unavailable

48

Nut M12x1 h10 WAF19 DIN 934

0934120103

Unavailable

49

NUT DIN917-M12X1

0917120103

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
