Description

Price

10

ORANGE FRAME RENEGADE - Call your local BRP dealership | Orange Crush Frame Models

415130093

Unavailable

10

FRAME ASS'Y 137 - Call your local BRP dealership | Package Adrenaline This part replaces 415130097.

415129936

Unavailable

10

FRAME RENEGADE ENDURO - Call your local BRP dealership | Package Enduro Deep Black Models

415130098

Unavailable

10

FRAME - Call your local BRP dealership | Package Enduro Tactical Gray Models

415130173

Unavailable

12

RH Deflector, Black Polypropylene

518325782

$11.77

14

LH Deflector, Black Polypropylene

518325783

$11.77

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

18

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

20

Adhesive Patch

518325560

$4.34

22

Front Radiator Ass'y | Includes 10a to 10b

518327907

$517.66

22a

Clinch Stud M6 X 20

250300027

$1.92

24

Rivet Avibulb 3/16

293150203

$0.29

26

Hemlock Rivet, 6.4 mm

293150174

$6.43

28

RH Reinforcement, Running Board

518326937

$25.35

30

LH Reinforcement, Running Board

518326938

$25.35

32

RH Rear Base

518325973

$18.43

32

LH Rear Base | Includes 10v to 10x

518325974

$18.43

35

Insert

293450275

$9.89

36

Seal

518326656

$8.43

38

Rear Cap

518327105

$20.74

39

Insert

293450275

$9.89

40

RH Stirup | Includes 10p to 10q

518328942

$166.12

40a

Avex Rivet

390909200

$0.29

42

Insert M5 X 0.8

293450268

$1.95

44

LH Stirup | Includes 10s to 10t

518328528

$166.12

44a

Avex Rivet

390909200

$0.29

46

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

48

Full Moon Dart 5 mm

293730042

$2.12

50

Insert M5 X 0.8

293450268

$1.95

52

Rivet Avibulb 3/16

293150203

$0.29

54

Avex Rivet

390909100

$0.29

56

Stavex Rivet

293150144

$0.77

58

Henrob Rivet

293150146

$1.92

60

Hemlock Rivet, 6.5 mm

293150119

$4.00

63

E Module | Includes 10ad to 10ap

518328078

$475.35

64

RH Side Member

518326328

$259.97

66

LH Side Member

518326330

$259.97

68

Front Member

518326198

$59.97

70

Stavex Rivet

293150144

$0.77

72

Hemlock Rivet 6.5 mm

293150120

$7.23

74

Hemlock Rivet, 6.5 mm

293150119

$4.00

76

Leg Cushion

505073317

$5.92

78

Torx Truss Screw M6 X 12

250000767

$1.66

80

Rh Suspension Bracket

518326954

$36.89

82

LH Suspension Bracket

518326955

$37.66

84

RH Roller

518327093

$76.99

86

LH Roller

518327094

$76.99

86

LH Roller

518327094

$76.99

86

LH Roller

518328429

$175.35

86

LH Roller

518328429

$175.35

88

Rear Radiator Ass'y, 137" | SPORT

518326641

$699.97

100

Engine Support

518326178

$63.05

105

Hemlock Rivet, 6.4 mm

293150174

$6.43

115

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

200

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$259.97

200a

Vibration Damper

512061516

$57.66

205

Conical Spring Washer M8

234281474

$1.25

300

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

300a

Front Suspension Support

518327487

$267.66

305

Front Member

518327565

$316.12

310

Hex. Flange Elastic Nut M8

233281414

$1.14

320

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

330

Hex. Flange Screw M6 X 25

207662544

$0.53

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

350

Monobolt Rivet, 4.8 mm

293150191

$0.95

360

Monobolt Rivet 6.4

293150182

$2.91

370

Hex. Flange Screw M6 X 16

207661644

$0.61

510

Hex. Flange Elastic Nut M8

233281414

$1.14

530

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74

535

Hex. Flange Screw, Scotch Grip

207584034

$2.06

900

Rear Member

518326559

$244.58

910

Hex. Flange Elastic Nut M8

233281414

$1.14

1100

Upper Column Support

518326848

$13.06

1110

Hex. Flange Screw M6 X 20

207662044

$1.66

1120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1130

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1200

Center Column Support

518326355

$20.74

1210

Hex. Flange Screw M6 X 25

207662544

$0.53

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1300

Black Rear Bumper 137"

518325481

$154.99

1300

Black Rear Bumper | Europe Models

518326414

$114.99

20

Black RH Cap

520000965

$8.97

1340

Black LH Cap

520000964

$8.97

1340

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.68

1400

Black, Dart 8 mm

293730047

$2.14

1405

Black, Dart 10 mm

293730060

$4.42

1700

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.66

1700a

Washer

517124300

$0.16

1710

Pop Rivet 3/16”

293150108

$1.23

2000

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

2100

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

2200

Sub A Support

518327145

$79.20

2300

Panel Nut M5 X 0.8

250000958

$3.48

6000

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

6001

Flat Washer

224061201

$1.11

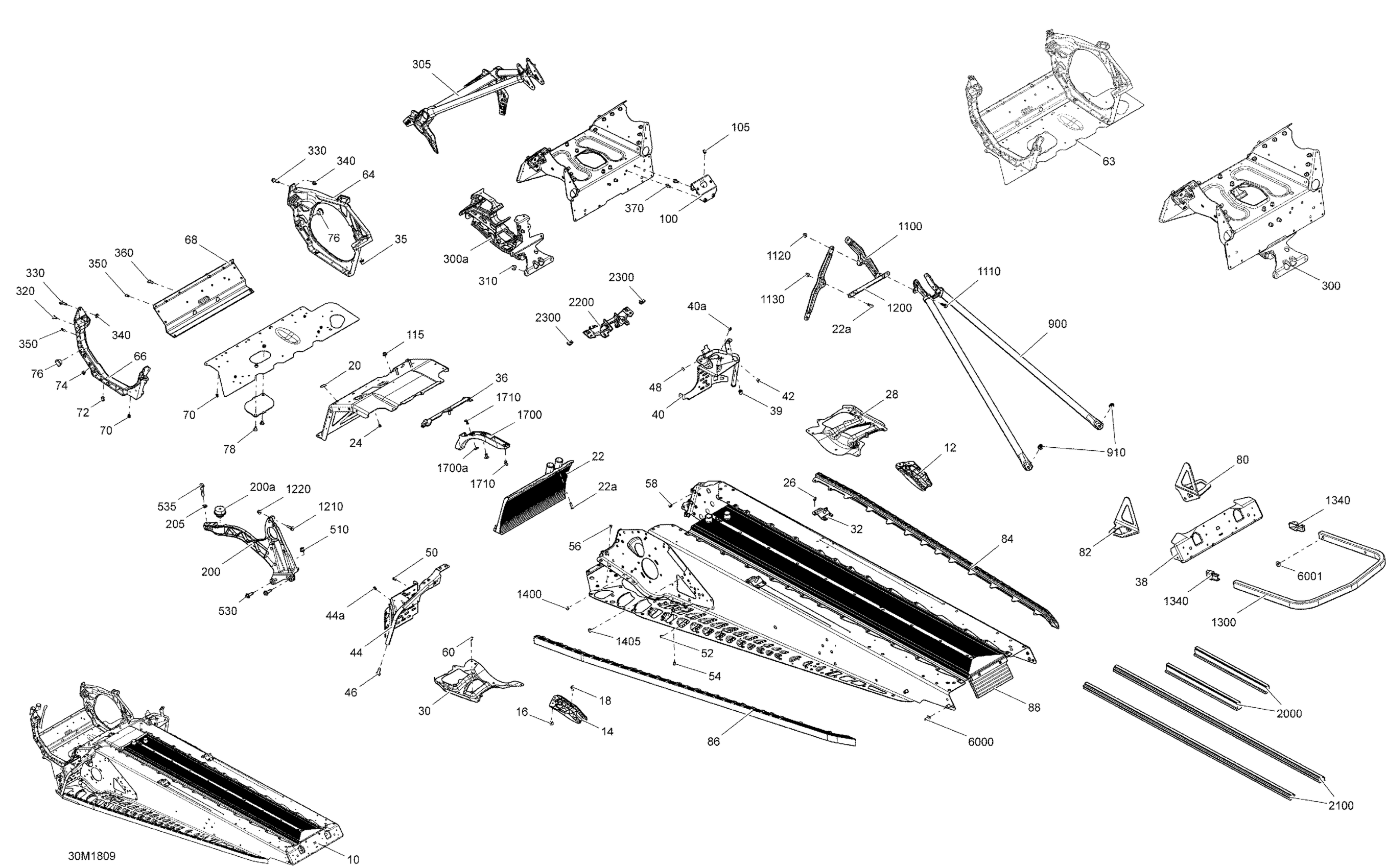

Ski-Doo RENEGADE 900 ACE, 2018 Frame Renegade - 900 ACE Diagram

ORANGE FRAME RENEGADE - Call your local BRP dealership | Orange Crush Frame Models

FRAME ASS'Y 137 - Call your local BRP dealership | Package Adrenaline This part replaces 415130097.

FRAME RENEGADE ENDURO - Call your local BRP dealership | Package Enduro Deep Black Models

FRAME - Call your local BRP dealership | Package Enduro Tactical Gray Models

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.
