Description

Price

14024

COVER,RR

14025-3027

Unavailable

14024A

COVER,FR

14025-3028

Unavailable

14079

HOLDER-ASSY,BRUSH

14079-3002

$229.10

21039

BRUSH,(+)

21039-3003

Unavailable

21039A

BRUSH,(-)

21039-3004

Unavailable

21080

ARMATURE

21080-3701

$534.47

21163

STARTER-ELECTRIC

21163-3003-YR

Unavailable

49117

YOKE

49117-3002

$461.58

59051

GEAR-SPUR

59051-3005

$446.48

92002

BOLT,8X70

92002-3719

$12.08

92002A

BOLT,6X20

92002-3755

$3.57

92009

SCREW,6X107

92011-549

Unavailable

92009A

SCREW,4X8

92011-550

$5.49

92022

WASHER,SET

92022-3044

$9.19

92025

SHIM,STARTER,T=0.4

92025-3012

Unavailable

92025A

SHIM,STARTER,T=0.6

92025-3013

Unavailable

92025B

SHIM,STARTER,T=0.8

92025-3014

Unavailable

92027

COLLAR,STOPPER,PINION

92027-513

Unavailable

92033

RING-SNAP

92036-517

Unavailable

92055

RING-O

92055-516

$6.75

92055A

RING-O

92055-517

Unavailable

92081

SPRING,BRUSH

92081-540

$12.17

92081A

SPRING,RETURN

92081-541

Unavailable

410

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

670

O RING,5MM

670B1505

$2.49

670A

O RING,6MM

670B1506

$0.98

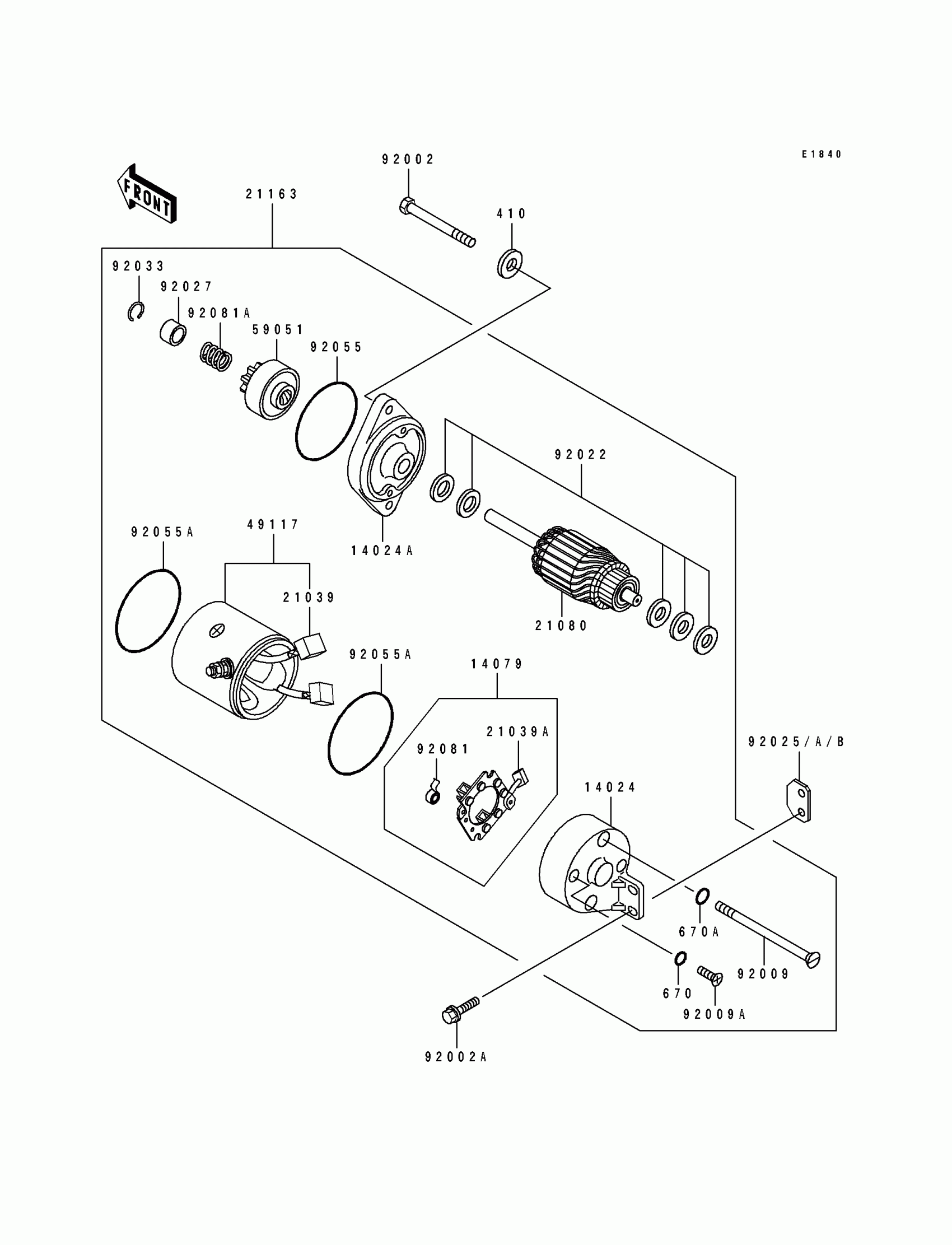

Kawasaki 550 SX Starter Motor Diagram

COVER,RR

COVER,FR

HOLDER-ASSY,BRUSH

BRUSH,(+)

BRUSH,(-)

ARMATURE

STARTER-ELECTRIC

YOKE

GEAR-SPUR

BOLT,8X70

BOLT,6X20

SCREW,6X107

SCREW,4X8

WASHER,SET

SHIM,STARTER,T=0.4

SHIM,STARTER,T=0.6

SHIM,STARTER,T=0.8

COLLAR,STOPPER,PINION

RING-SNAP

RING-O

RING-O

SPRING,BRUSH

SPRING,RETURN

WASHER-PLAIN-SMALL,8MM

O RING,5MM

O RING,6MM
