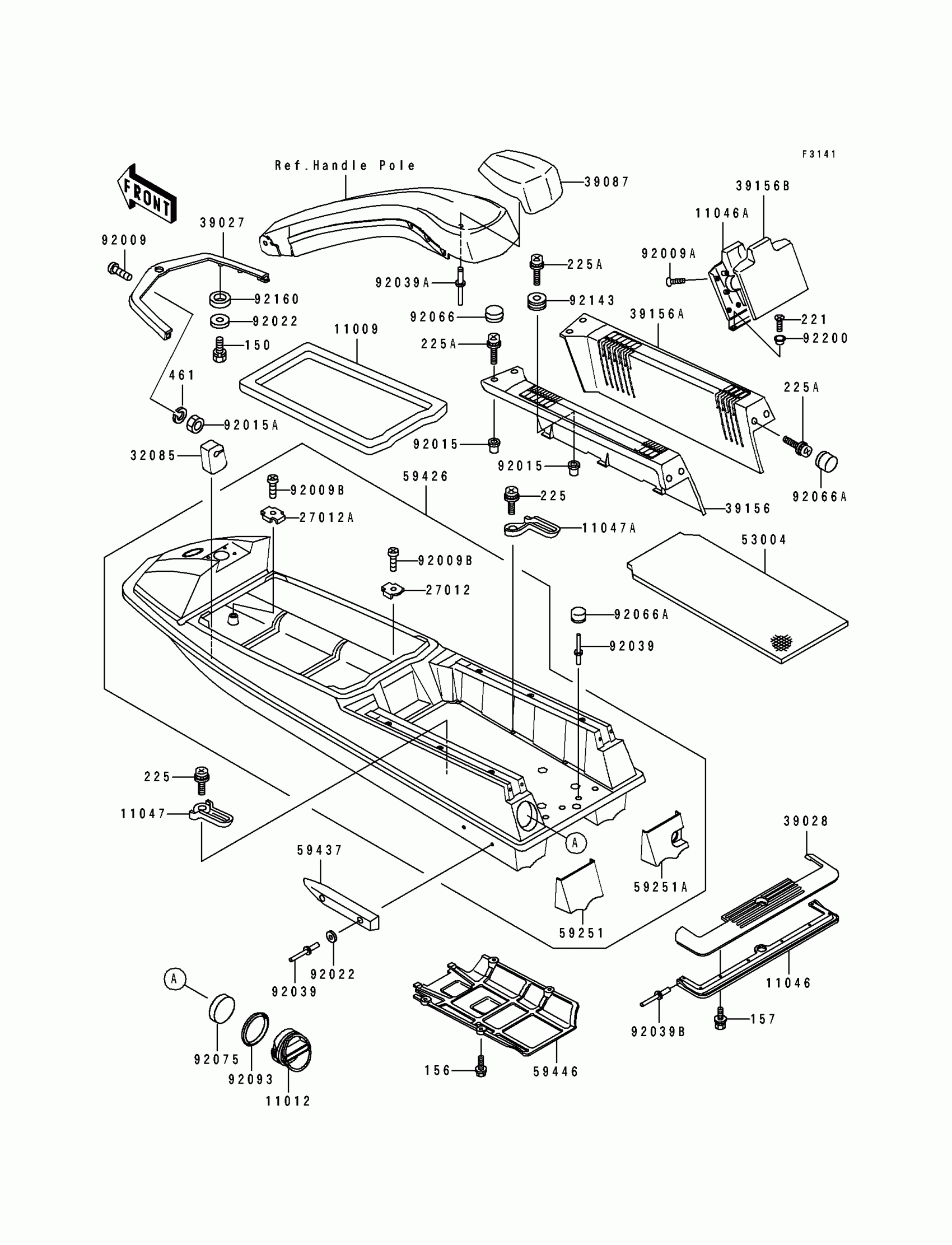

Kawasaki 550 SX Hull Diagram

#

Description
Price

11009

GASKET,ENGINE HOOD

92065-539

$66.41

11012

CAP,FIRE EXTINGUISHER

11012-3741

Unavailable

11046

BRACKET,REAR BUMPER

11046-3829

Unavailable

11046A

BRACKET,CONTROL PANEL COVER

11046-3835

Unavailable

11047

BRACKET,DECK,PAD,LH

11047-3703

Unavailable

11047A

BRACKET,DECK,PAD,RH

11047-3704

Unavailable

27012

HOOK

27012-501

Unavailable

27012A

HOOK

27012-502

Unavailable

32085

DETENT

59346-504

$8.73

39027

BUMPER-FRONT

39027-3704

$100.12

39028

BUMPER-REAR

39028-3705

Unavailable

39087

PAD-HANDLE,POLE

39087-3701

Unavailable

39156

PAD,DECK,LH

39156-3731

Unavailable

39156A

PAD,DECK,RH

39156-3732

$545.22

39156B

PAD,CONTROL PANEL COVER

39156-3733

$109.35

53004

MAT,DECK

53004-3731

Unavailable

59251

HULL,LH,EXTENSION,JET WHITE

59251-3006-8C

Unavailable

59251A

HULL,RH,EXTENSION,JET WHITE

59251-3713-8C

Unavailable

59426

HULL-COMP,JET WHITE

59426-3744-8C

$1,712.99

59437

STABILIZER

59437-3002

Unavailable

59446

COVER-JET PUMP

59446-3711

$140.72

92009

SCREW,5X22

92009-3761

Unavailable

92009A

SCREW,4X8

92009-3770

Unavailable

92009B

SCREW,TAPPING

92011-561

Unavailable

92015

NUT

92015-1700

$6.55

92015A

NUT,FLANGED,5MM

92015-3768

$4.34

92022

WASHER,5X16X1.5

92022-3041

$3.19

92039

RIVET

92039-3002

$5.10

92039A

RIVET

92039-3712

$4.29

92039B

RIVET

92039-3733

$1.81

92066

PLUG

92066-3731

Unavailable

92066A

PLUG

92066-3734

Unavailable

92075

DAMPER

92075-3719

$7.48

92093

SEAL,OSR70X82X7.5

92093-3704

Unavailable

92143

COLLAR

92143-3711

$8.05

92160

DAMPER

92160-3754

$2.49

92200

WASHER

92200-3706

$3.12

150

BOLT-WS,5X12

150R0512

$4.07

156

BOLT-WP,6X25

156R0625

$3.63

157

BOLT-WSP,5X20

157R0520

Unavailable

221

SCREW-CSK-CROS,6X16

221R0616

$1.06

225

SCREW-PAN-WSP-CROS,6X16

225R0616

$4.42

225A

SCREW-PAN-WSP-CROS,6X25

225R0625

$4.68

461

WASHER-SPRING,5MM

461S0500

$0.54
