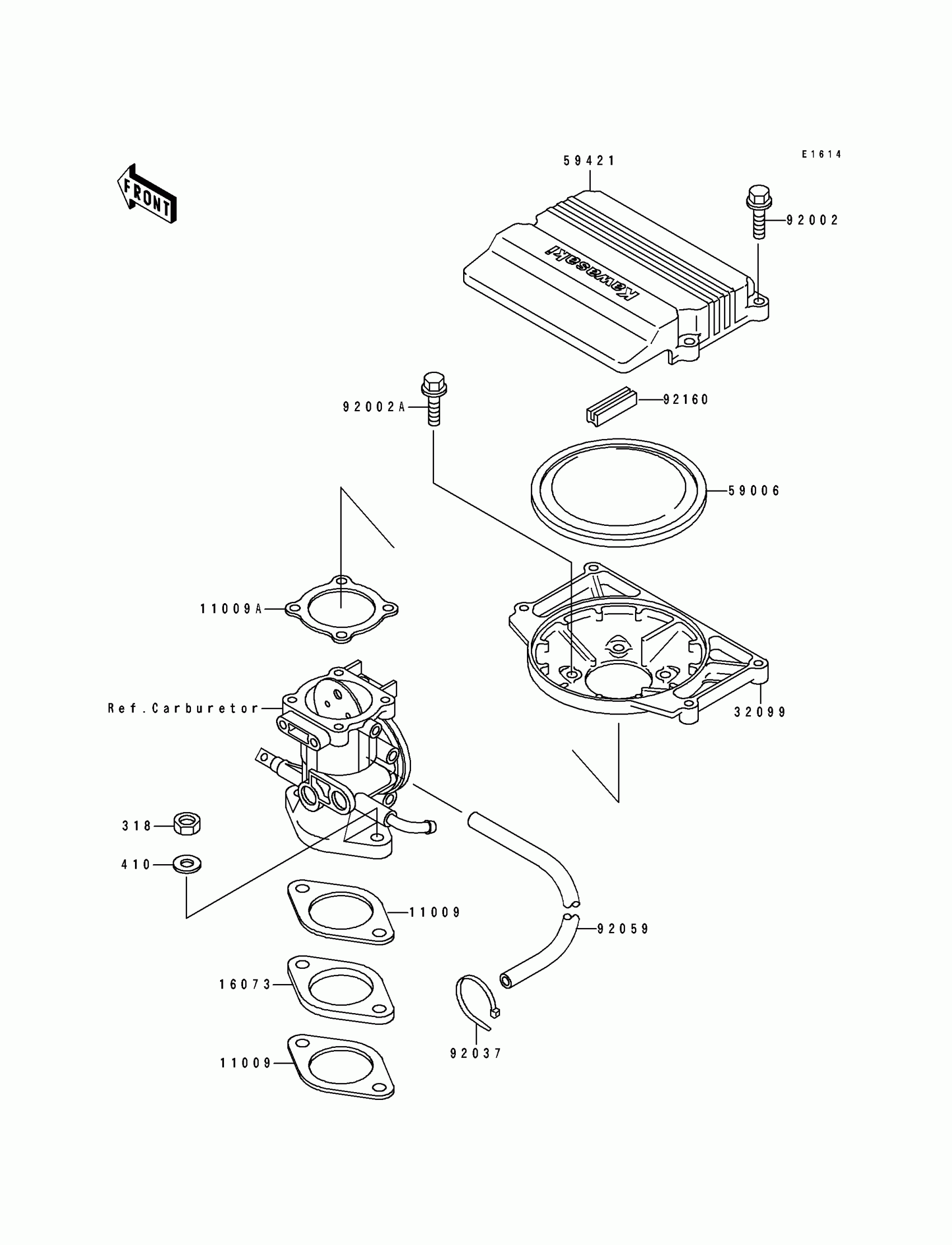

Kawasaki 550 SX Flame Arrester Diagram

Description

Price

11009

GASKET,INSULATOR

11009-3056

Unavailable

11009A

GASKET,ARRESTER CASE

11009-3057

Unavailable

16073

INSULATOR

16073-3007

Unavailable

32099

CASE

32099-2088

$85.48

59006

ARRESTER-FLAME

59006-3704

$138.02

59421

COVER-INTAKE

59421-3704

$84.13

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,6X20

92002-3755

$3.57

92037

CLAMP

92037-1173

$2.58

92059

TUBE,PULS

92059-518

Unavailable

92160

DAMPER

92160-3753

$4.08

318

NUT-HEX-SMALL

318R0800

$3.19

410

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62
