1990 Kawasaki 550 SX Bilge Diagram

← All diagrams

Find the part on the Bilge diagram for your 1990 Kawasaki 550 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

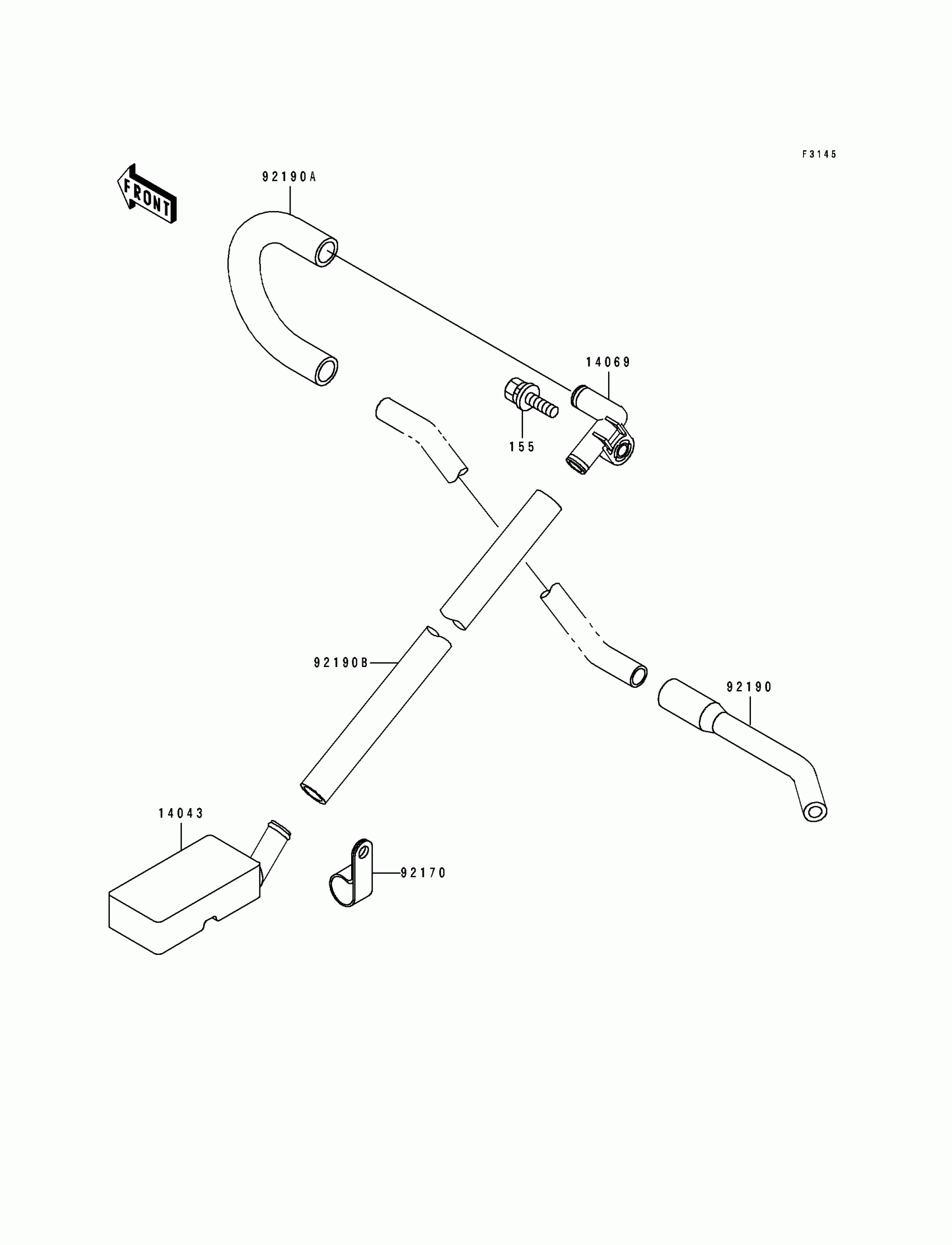

1990 Kawasaki 550 SX Bilge Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14043

FILTER,BILGE

14043-3703

1
Out of stock

14069

BREATHER,BILGE

14069-3705

1
Out of stock

92170

CLAMP

92170-3704

1

$3.47

In stock

92190

TUBE,HULL-PUMP

92190-3711

1
Out of stock

92190A

TUBE

92190-3713

1
Out of stock

92190B

TUBE,15.5X21.5X260

92190-3720

1
Out of stock

155

1

$5.07

In stock
