Find the part on the Piston-Crankshaft diagram for your 1968 Suzuki M31, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

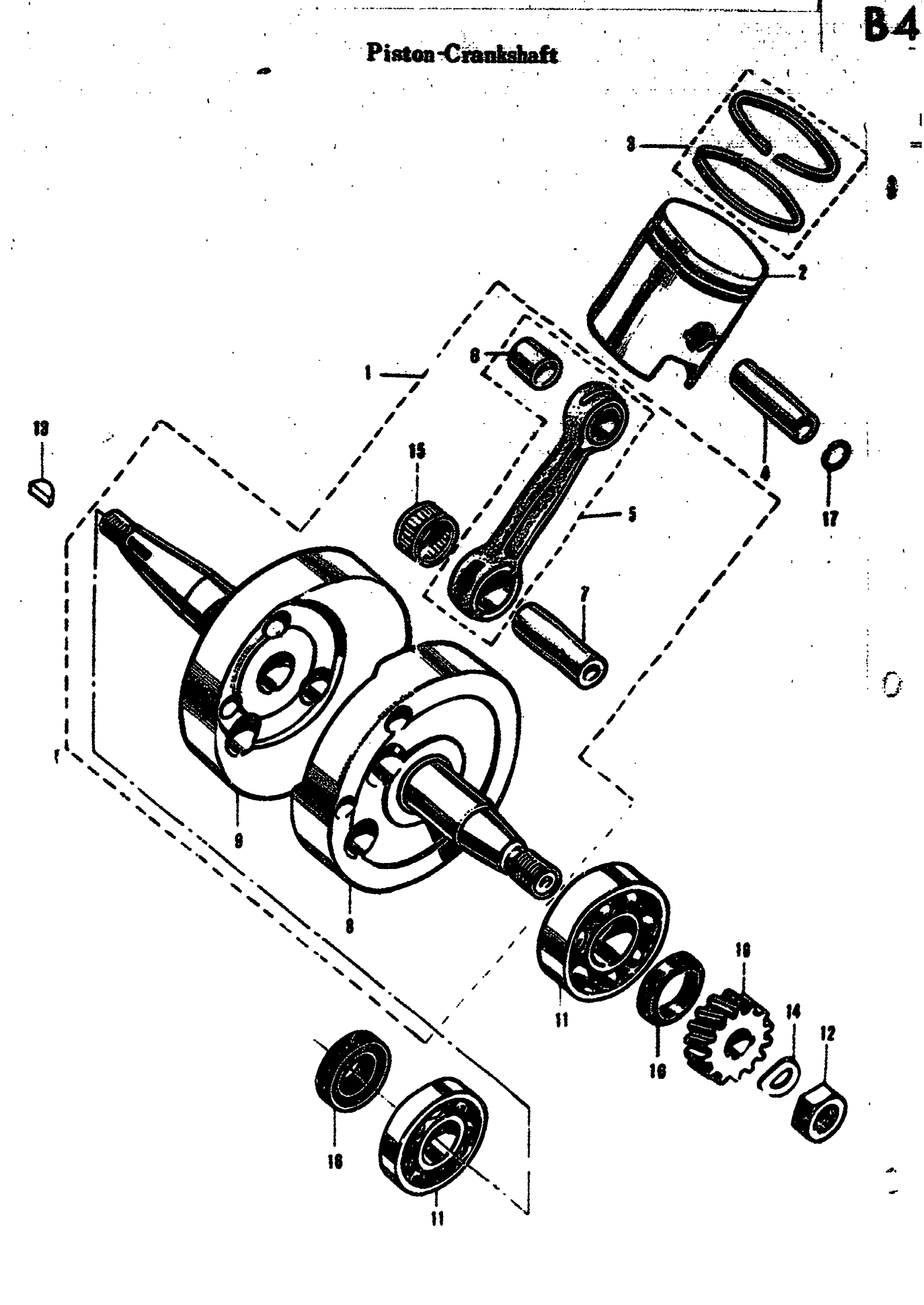

1968 Suzuki M31 Piston-Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASS'Y

12000-02808

—
Out of stock

2

PISTON

12110-02510

—
Out of stock

3

PISTON RING SET | 0.5(0.02)

12140-02700

—
Out of stock

2

PISTON | 0.5(0.02)

12110-02750

—
Out of stock

4

PISTON PIN | 47) L=34(1.34)

12151-02060

—
Out of stock

3

PISTON

12140-02110

—
Out of stock

5

CONNECTING ROD COMP

12160-01003

—
Out of stock

6

CONNECTING ROD SMALL END BUSH | .50)I.D.=12(0.47) W.=12(0..50)I.D.=12(0.47) W.=12(0.

12162-50001

1
Out of stock

6

CONNECTING ROD SMALL END BUSH | .67)I.D.=12<-(0.47) W=12(0..67)I.D.=12<-(0.47) W=12(0.0.47) UP TO E.NO.M30.11231

09300-12082

—
Out of stock

7

CRACK PIN | .63) L=40: 1.57

12211-01001

—
Out of stock

8

RIGHT CRANKSHAFT

12221-02000

—
Out of stock

9

LEFT CRANKSHAFT

12261-02100

—
Out of stock

10

PRIMARY PISION

21111-02000

—
Out of stock

11

BALL BEARING

08113-63030

2
Out of stock

12

NUT This part replaces 08311-11108.

08310-00107

1
Out of stock

13

KEY

08341-31039

1
Out of stock

14

PRIMARY PINSON SPRING WASHER | .67)L.D.=10.5(0.41) T.=1.0

09164-11001

—
Out of stock

15

BEARING, 16X22X11.8 This part replaces 09263-16002.

09263-16034

1
Out of stock

16

CRAKSHAFT OIL SEAL | .14) I.D.=16(0.67) W.=7(0.

09283-17001

2
Out of stock
